Crankshaft Position Sensor Replacement

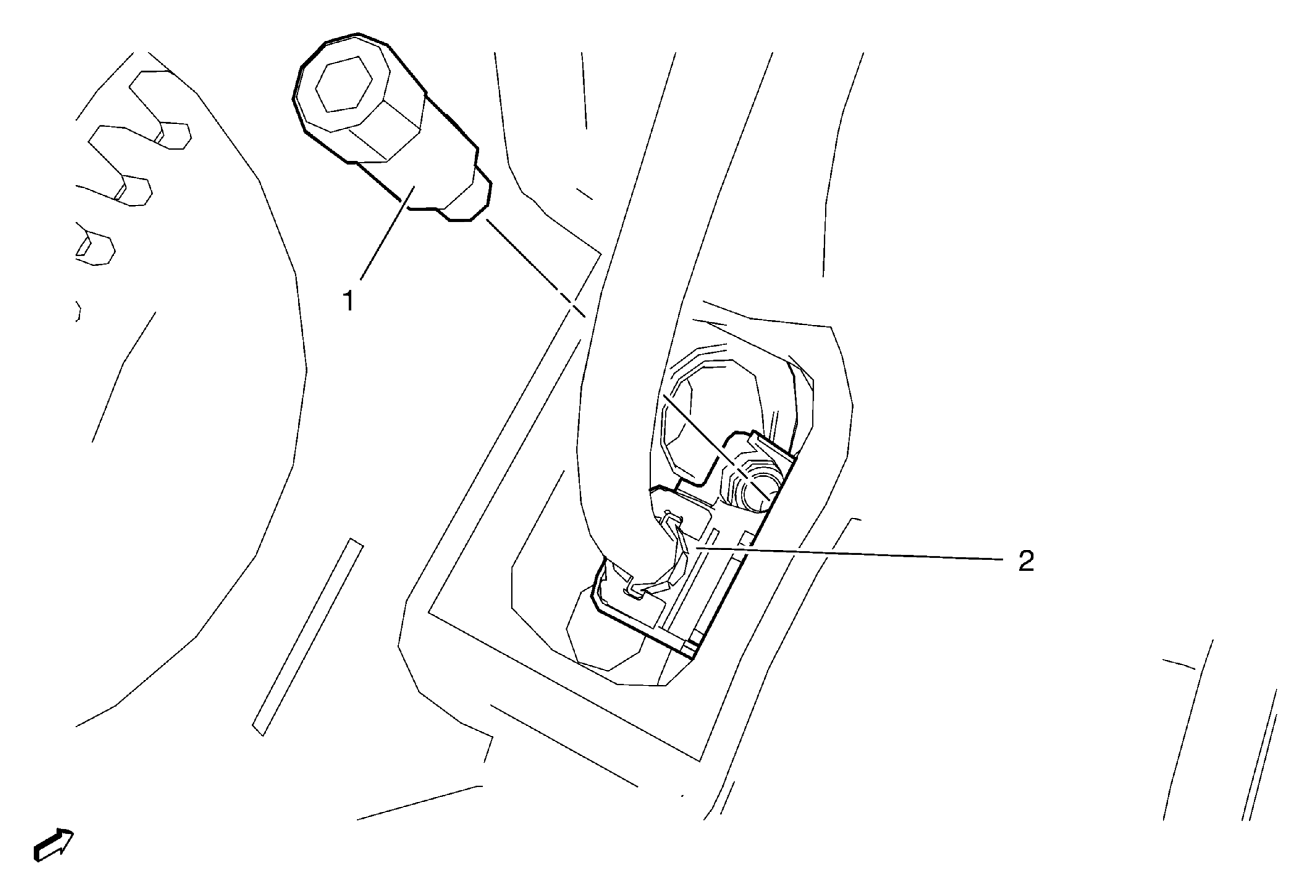

Fig 1: Crankshaft Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the starter motor. Refer to Starter Replacement (LUW) , Starter Replacement (LUJ) .
1	Crankshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Procedure Remove the crankshaft position sensor bolt Tighten 4.5 N.m (40 lb in)
2	Crankshaft Position Sensor Procedure Disconnect all electrical connectors as needed.
