Engine Oil Pressure Indicator Switch Replacement

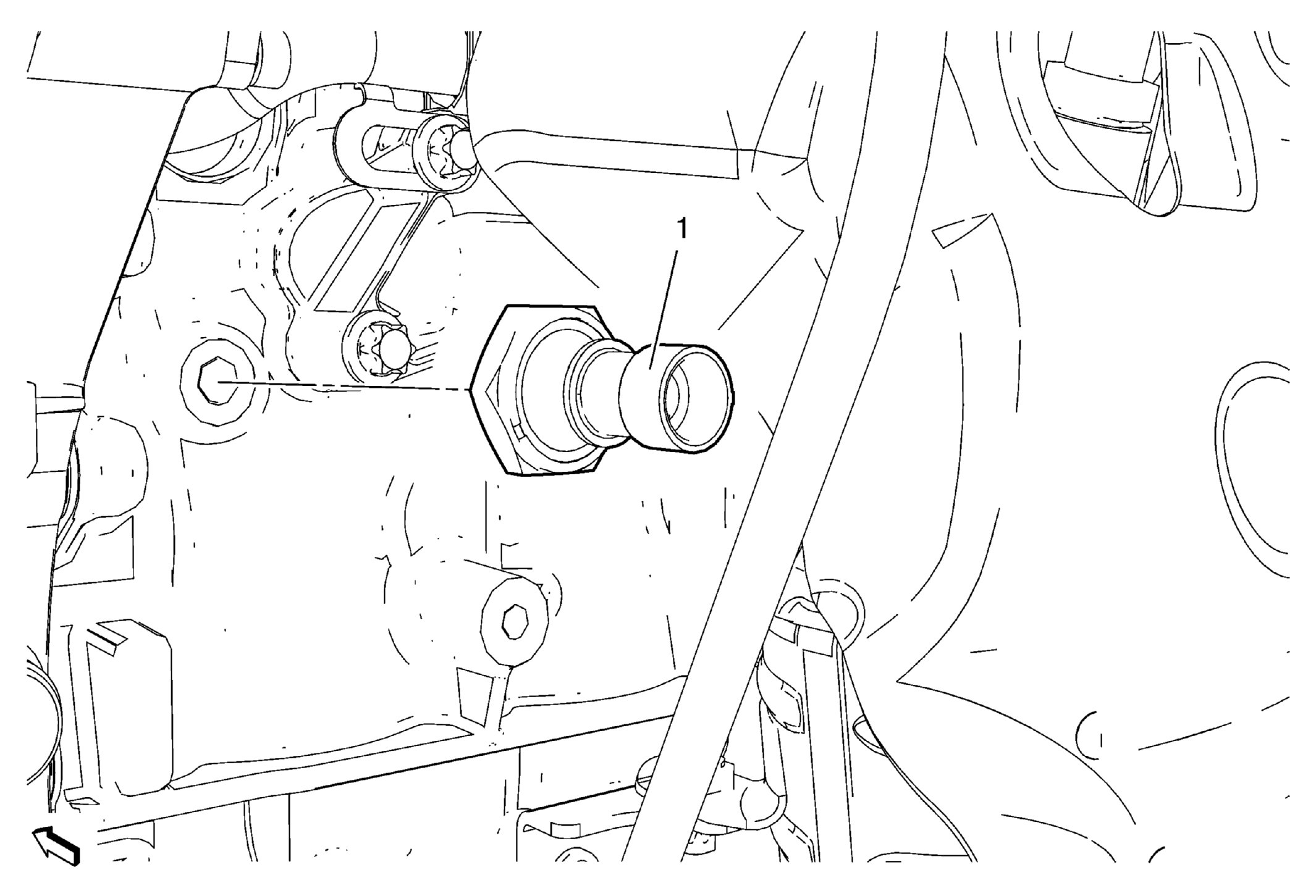

Fig 1: Engine Oil Pressure Indicator Switch
GM2028113Courtesy of GENERAL MOTORS COMPANY
Engine Oil Pressure Indicator Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the air conditioning compressor. Refer to Air Conditioning Compressor Replacement (LUJ) , Air Conditioning Compressor Replacement (LUW) .
1 Oil Pressure Switch
CAUTION:

Refer to Fastener Caution .


Procedure
Disconnect the oil pressure switch wiring harness plug and remove the switch.
Tighten
20 N.m (15 lb ft)
