Installation Procedure

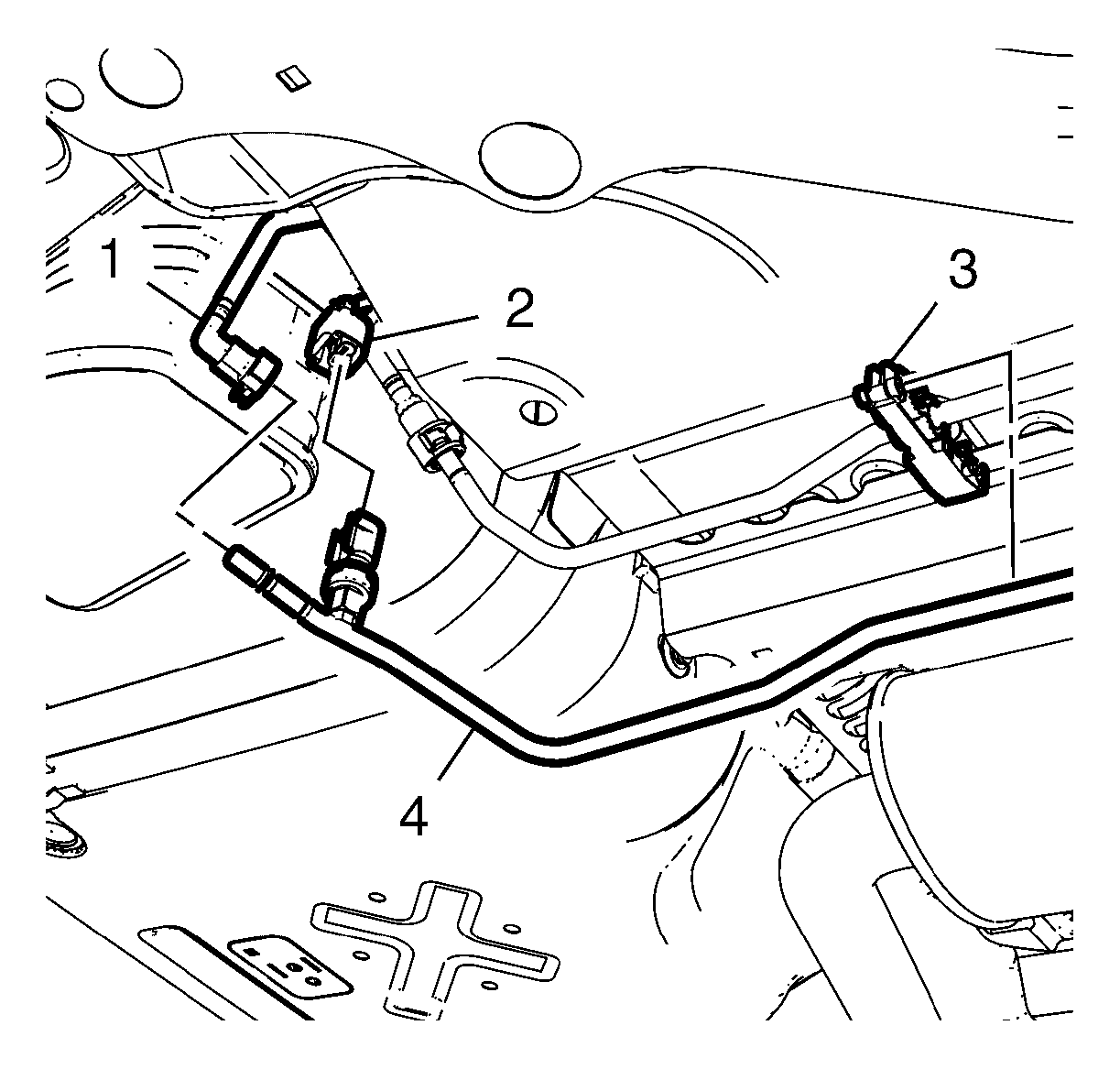

    Fig 1: Fuel Tank Feed Pipe Connector
    GM2372986Courtesy of GENERAL MOTORS COMPANY
  1. Remove the caps from the fuel feed tank pipe and from the fuel feed pipe.
  2. Install the fuel feed pipe (4) and close the fuel pipe clip (3).
  3. Connect the fuel tank feed pipe connector (1) to fuel feed pipe (4). Refer to Plastic Collar Quick Connect Fitting Service , Plastic Collar Quick Connect Fitting Service
  4. Connect the wiring harness plug (2).
    5. Fig 2: Fuel Feed Pipe And Clips
    GM2191622Courtesy of GENERAL MOTORS COMPANY
  5. Install the lower bulk head clip.
  6. Close the 4 fuel pipe clips (2).
    7. Fig 3: Front Exhaust Hanger Bracket And Bolt
    GM2538049Courtesy of GENERAL MOTORS COMPANY
  7. Rotate the right frame reinforcement to its original position.
  8. Install the exhaust front hanger bracket bolt (3).
  9. Install the frame reinforcement bolt (2).
    10. CAUTION:

    Refer to Fastener Caution

    CAUTION:

    Refer to Torque-to-Yield Fastener Caution

  10. Tighten the NEW exhaust front hanger bracket bolt (3) to 22 N.m (16 lb ft).
  11. Tighten the NEW frame reinforcement bolt (2) to 60 N.m (44 lb ft).
  12. Tighten the drivetrain and front suspension frame bolt (1) to 160 N.m (118 lb ft).
  13. Lower the vehicle.
    14. Fig 4: Fuel Feed Pipe And Fuel Pipe Clip
    GM2191616Courtesy of GENERAL MOTORS COMPANY
  14. Install the fuel feed pipe (1) to the upper bulkhead clip.
  15. Close the upper bulk head clip (2).

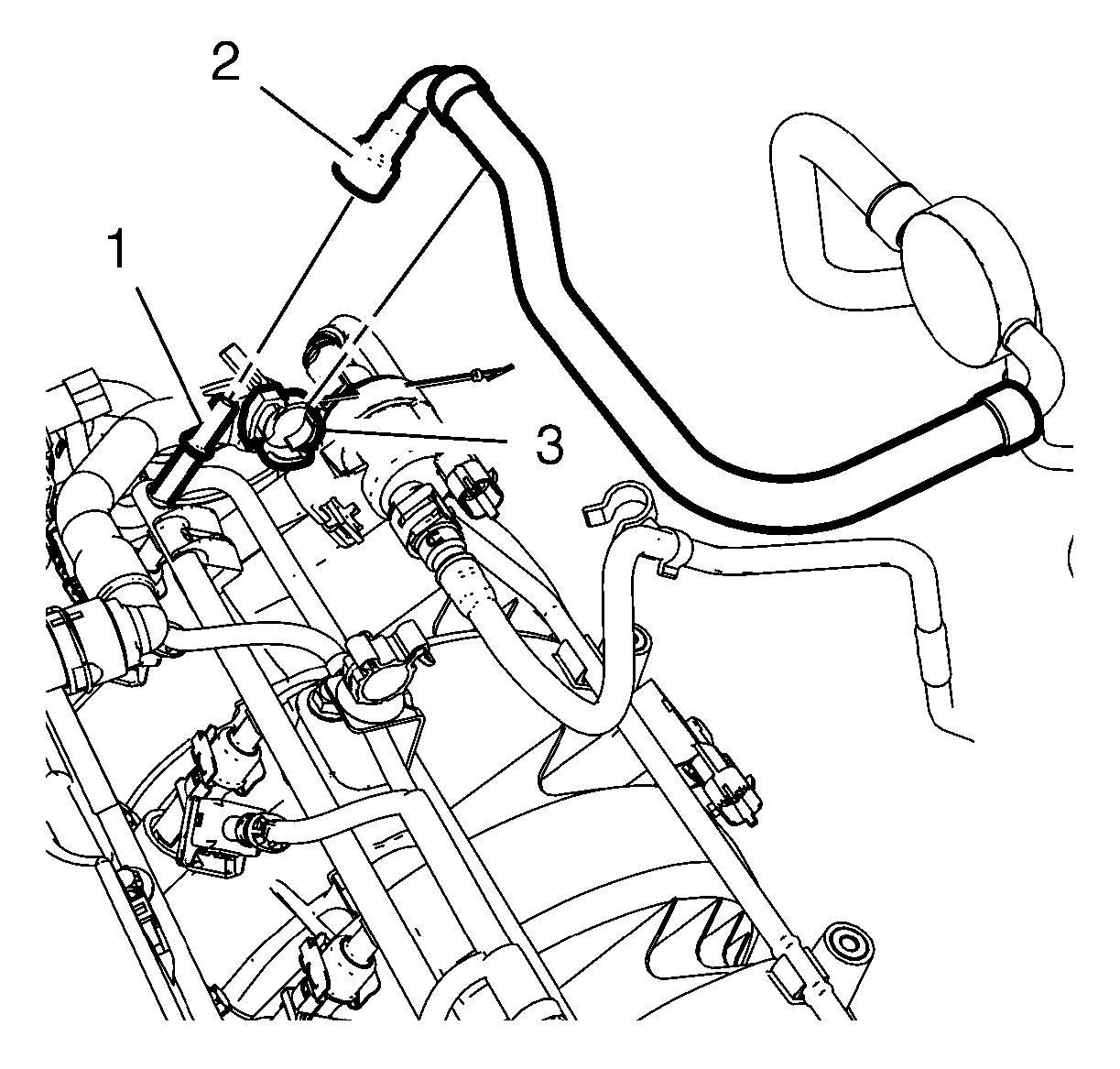

    16. Fig 5: Fuel Feed Pipe
    GM2372979Courtesy of GENERAL MOTORS COMPANY
  16. Remove the caps from the fuel feed pipe (2) and from the multiport fuel injection fuel rail (1).
  17. Install the fuel feed pipe (2) to the multiport fuel injection fuel rail (1).
  18. Clip in the fuel feed pipe (2) to the fuel feed pipe clip (3).
  19. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection
