Installation Procedure
- Install the fuel level sensor to the fuel tank fuel pump module. Refer to Fuel Level Sensor Replacement .
- Install a NEW fuel tank module seal (3).
- Install the fuel tank fuel pump module (2).
- Install the fuel pump module lock ring (1).

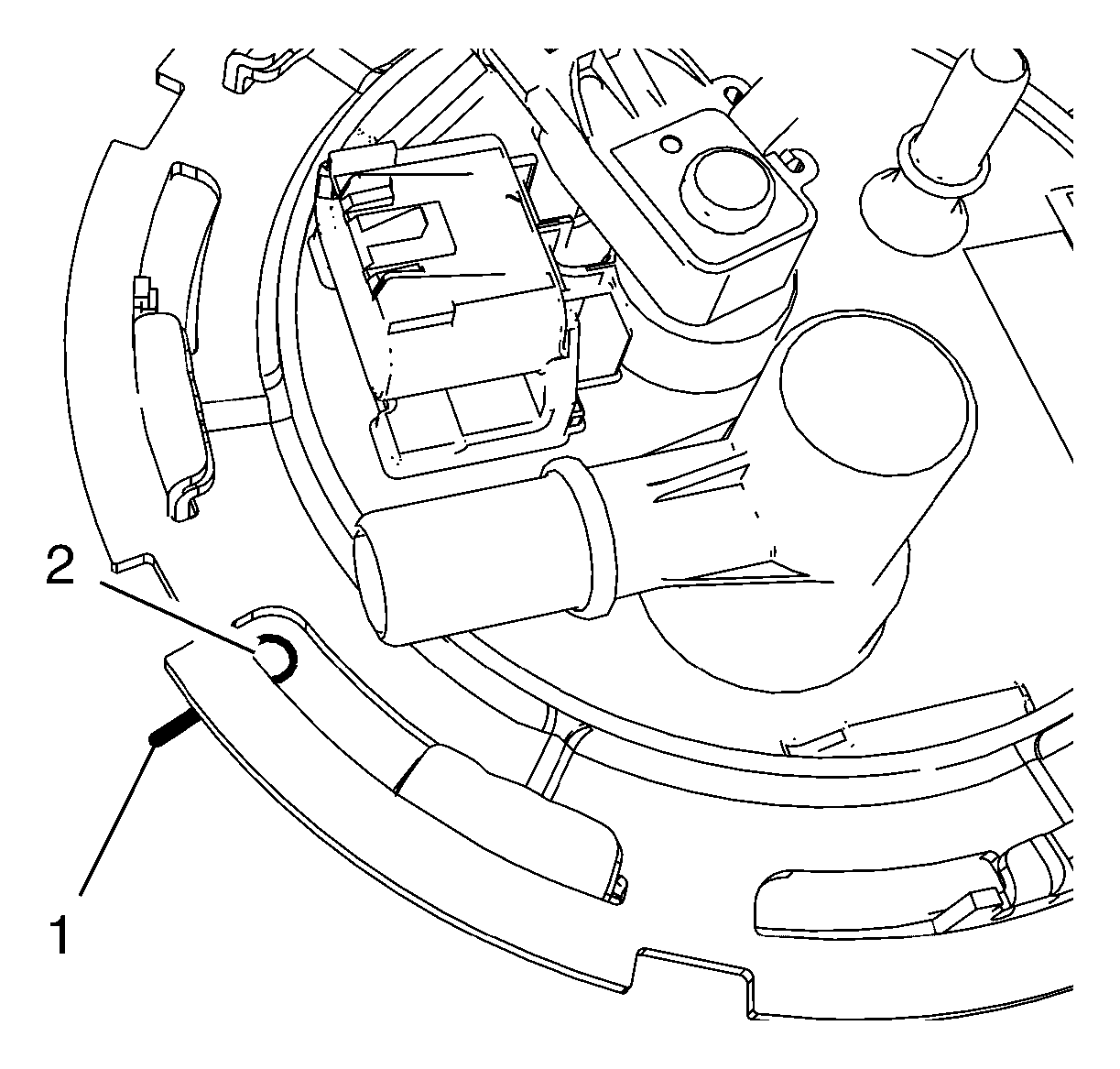

- Make sure that the fuel tank fuel pump module (2) align with the fuel tank line (1).
- Using the CH-45722 wrench and a long breaker-bar, rotate the lock ring in a clockwise direction in order to lock the lock ring.

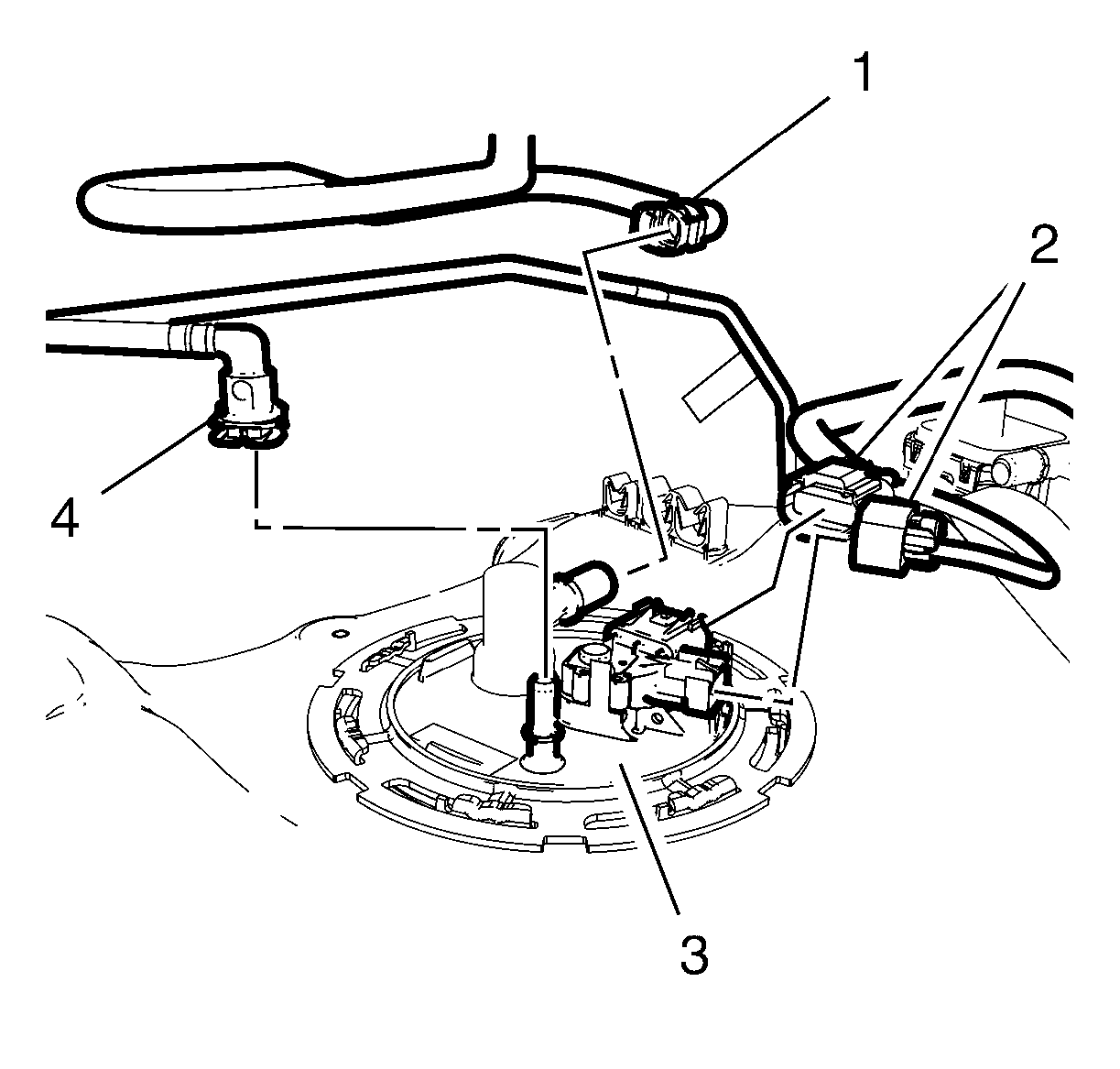

- Connect the fuel tank fuel pump module wiring harness (2) to the fuel tank fuel pump module (3).
- Remove the caps from the fuel feed pipe and the fuel tank vent feed pipe.
- Connect the fuel tank vent pipe (1) and the fuel feed pipe (4) to the fuel tank fuel pump module (3).
- Install the fuel tank. Refer to Fuel Tank Replacement .
NOTE:
Do NOT use impact tools. Significant force will be required to release the lock ring. The use of a hammer and screwdriver is not recommended. Secure the fuel tank in order to prevent fuel tank rotation.
