Assemble Procedure

  1. Install the fuel tank baffles. Refer to Fuel Tank Baffle Replacement .

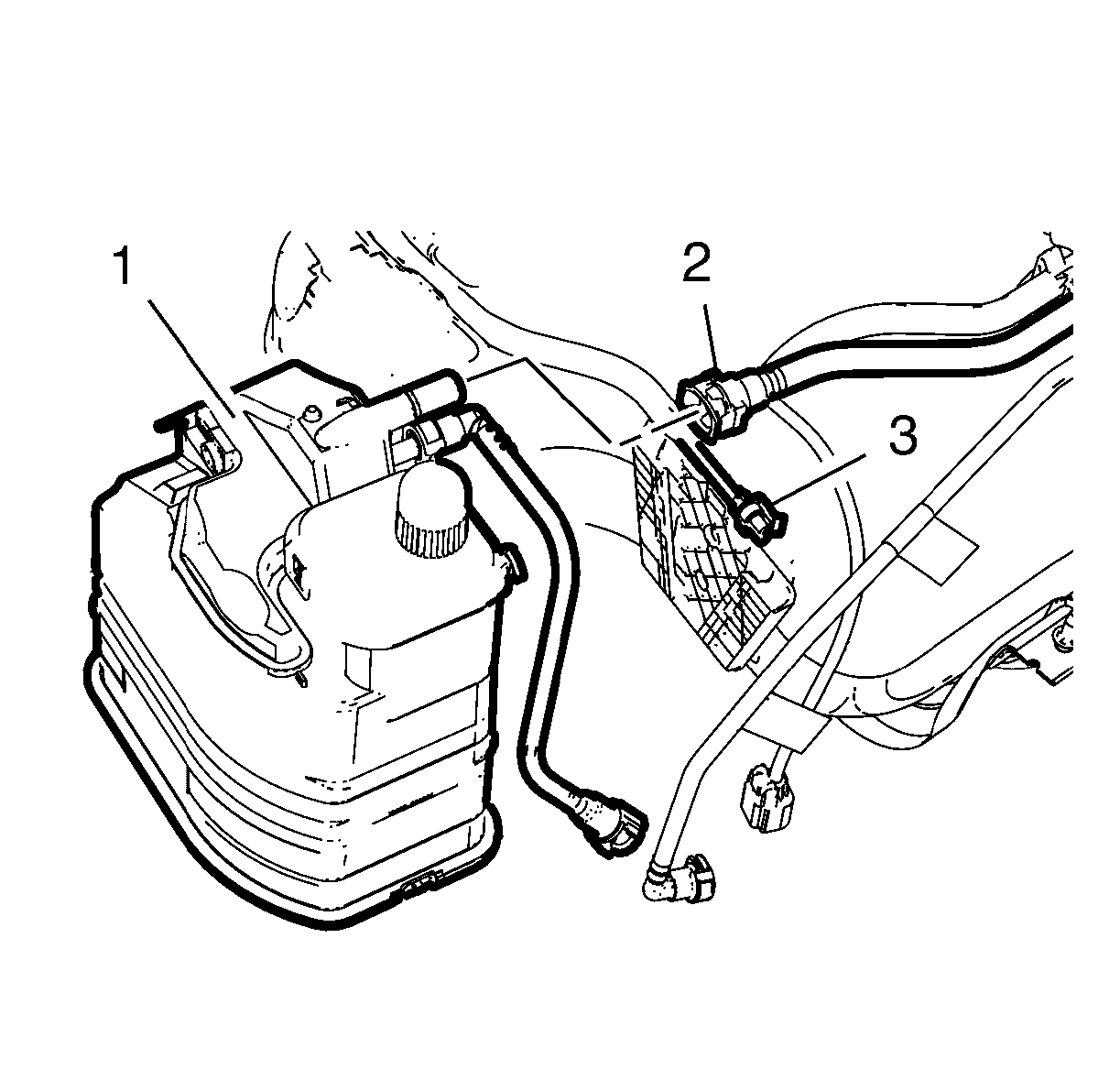

    2. Fig 1: Evaporative Emission Canister
    GM2373051Courtesy of GENERAL MOTORS COMPANY
  2. Install the evaporative emission canister (1) to the evaporative emission canister bracket.
  3. Connect the evaporative emission canister wiring harness plug (3).
  4. Connect the fuel tank vent pipe (2).
  5. Install the fuel tank fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement .
