Installation Procedure

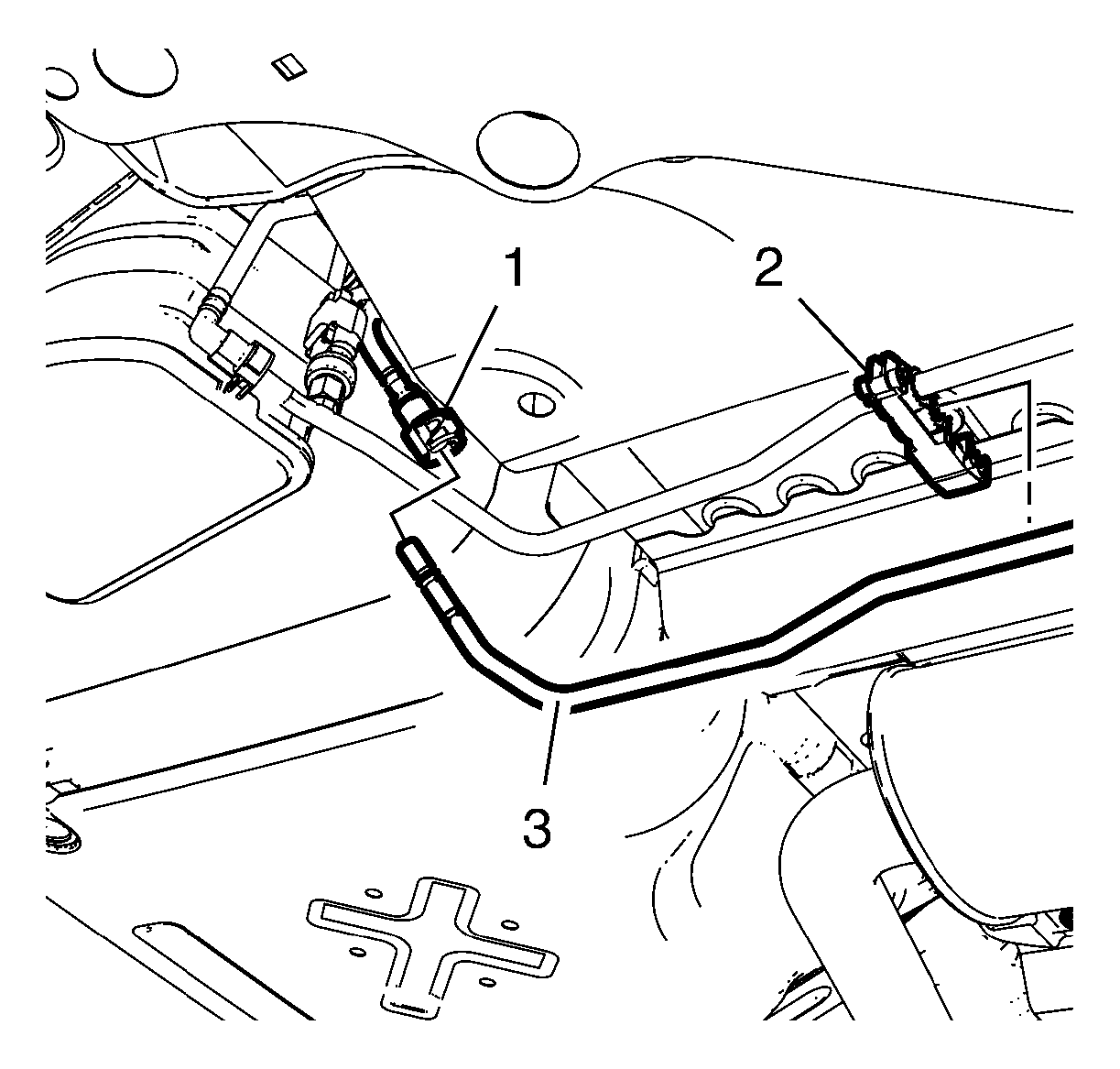

    Fig 1: Evaporative Emission Canister Fuel Vent Pipe Connector
    GM2372983Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel tank vent pipe (3) and close the fuel pipe clip (2).
  2. Remove the caps from emission canister fuel vent pipe and fuel tank vent pipe.
  3. Connect the emission canister fuel vent pipe to fuel tank vent pipe. Refer to Plastic Collar Quick Connect Fitting Service , Plastic Collar Quick Connect Fitting Service .
    4. Fig 2: Fuel Feed Pipe And Clips
    GM2191622Courtesy of GENERAL MOTORS COMPANY
  4. Install the lower bulk head clip.
  5. Close the 4 fuel pipe clips (2).
    6. Fig 3: Front Exhaust Hanger Bracket And Bolt
    GM2538049Courtesy of GENERAL MOTORS COMPANY
  6. Rotate the right frame reinforcement to its original position.
  7. Install the exhaust front hanger bracket bolt (3).
  8. Install the frame reinforcement bolt (2).
    9. CAUTION:

    Refer to Fastener Caution .

    CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

  9. Tighten the NEW exhaust front hanger bracket bolt (3) to 22 (16 lb ft).
  10. Tighten the NEW frame reinforcement bolt (2) to 60 (44 lb ft).
  11. Tighten the drivetrain and front suspension frame bolt (1) to 160 (118 lb ft).
  12. Lower the vehicle.

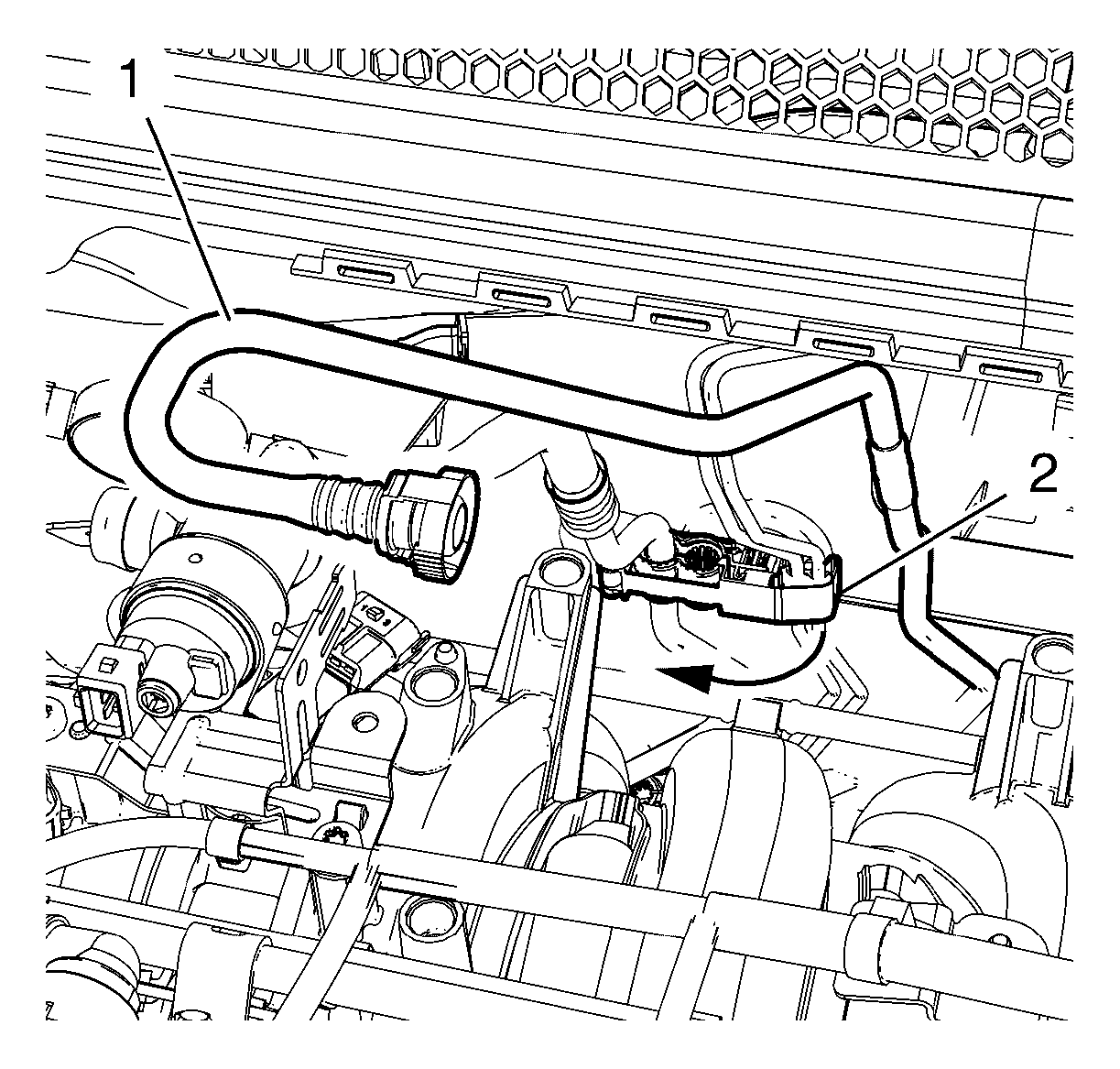

    13. Fig 4: Fuel Tank Vent Pipe
    GM2191617Courtesy of GENERAL MOTORS COMPANY
  13. Install the fuel tank vent pipe (1) to the upper bulkhead clip.
  14. Close the upper bulk head clip (2).

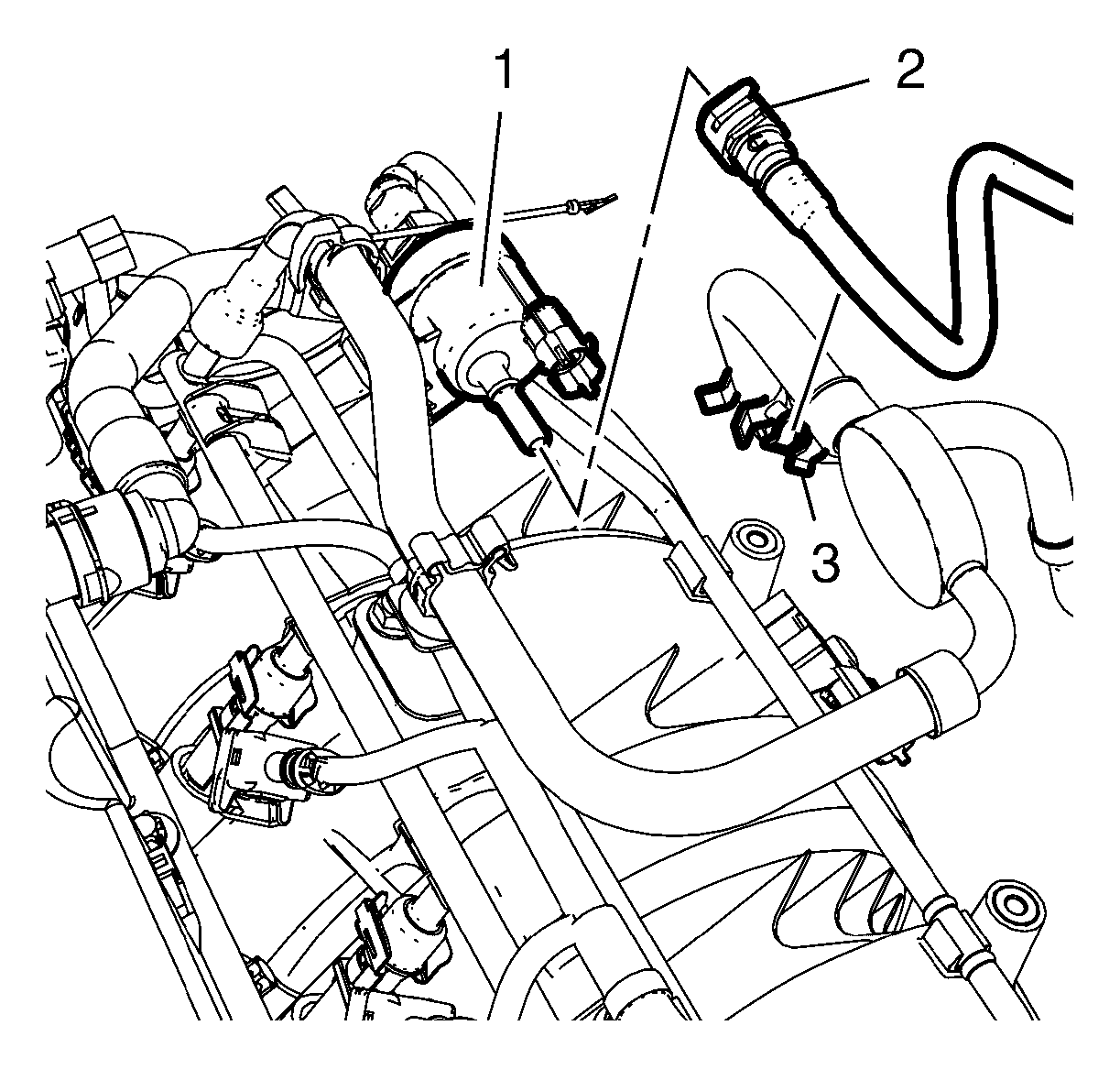

    15. Fig 5: Fuel Tank Vent Pipe And Evaporative Emission Canister Purge Solenoid Valve
    GM2372982Courtesy of GENERAL MOTORS COMPANY
  15. Install the fuel tank vent pipe (2) to the evaporative emission canister purge solenoid valve (1) and to the clip (3).
  16. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
