Installation Procedure

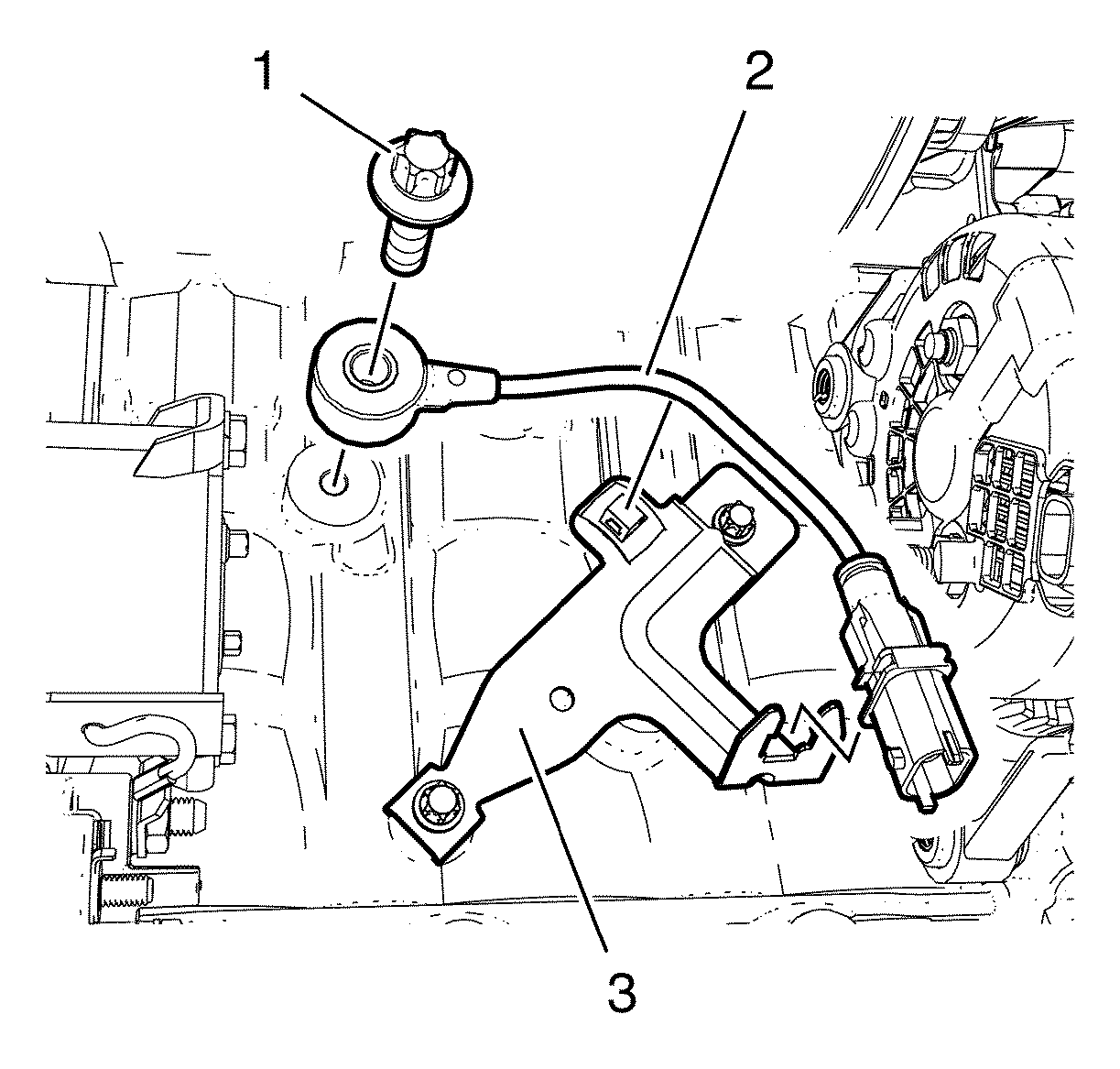

    Fig 1: Knock Sensor And Bracket
    GM2189291Courtesy of GENERAL MOTORS COMPANY
  1. Install the knock sensor (2) to the bracket (3).
    2. CAUTION:

    Refer to Fastener Caution

  2. Install the sensor bolt (1) and tighten to 20 N.m (15 lb ft).
  3. Connect the wiring harness plug.
    4. Fig 2: Intake Manifold Bracket
    GM2026538Courtesy of GENERAL MOTORS COMPANY
  4. Install the intake manifold bracket (1).
  5. Clip in the wiring harness.
  6. Install the 2 intake manifold bracket bolts (2, 3) and tighten to 8 N.m (71 lb in).
  7. Connect the negative cable to the battery. Refer to Battery Negative Cable Disconnection and Connection .
  8. Close the hood.
