Manifold Absolute Pressure Sensor Replacement

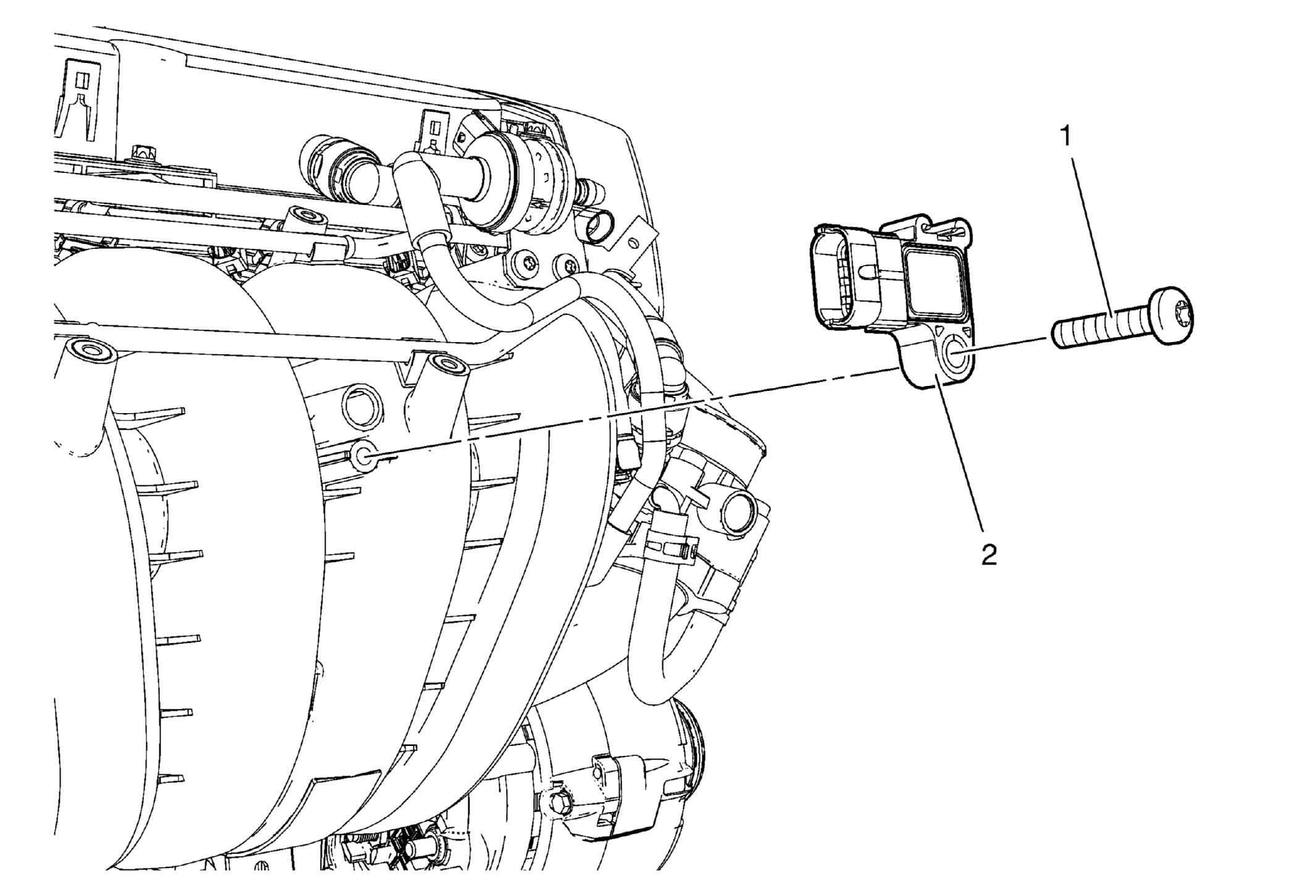

Fig 1: Manifold Absolute Pressure Sensor (1.8L LUW)
GM2189272Courtesy of GENERAL MOTORS COMPANY
Manifold Absolute Pressure Sensor Replacement

Callout Component Name
1 Manifold Absolute Pressure Sensor Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
6 N.m (53 lb in)
2 Manifold Absolute Pressure Sensor
Procedure
Disconnect the electrical connector.
