Mass Airflow Sensor Replacement

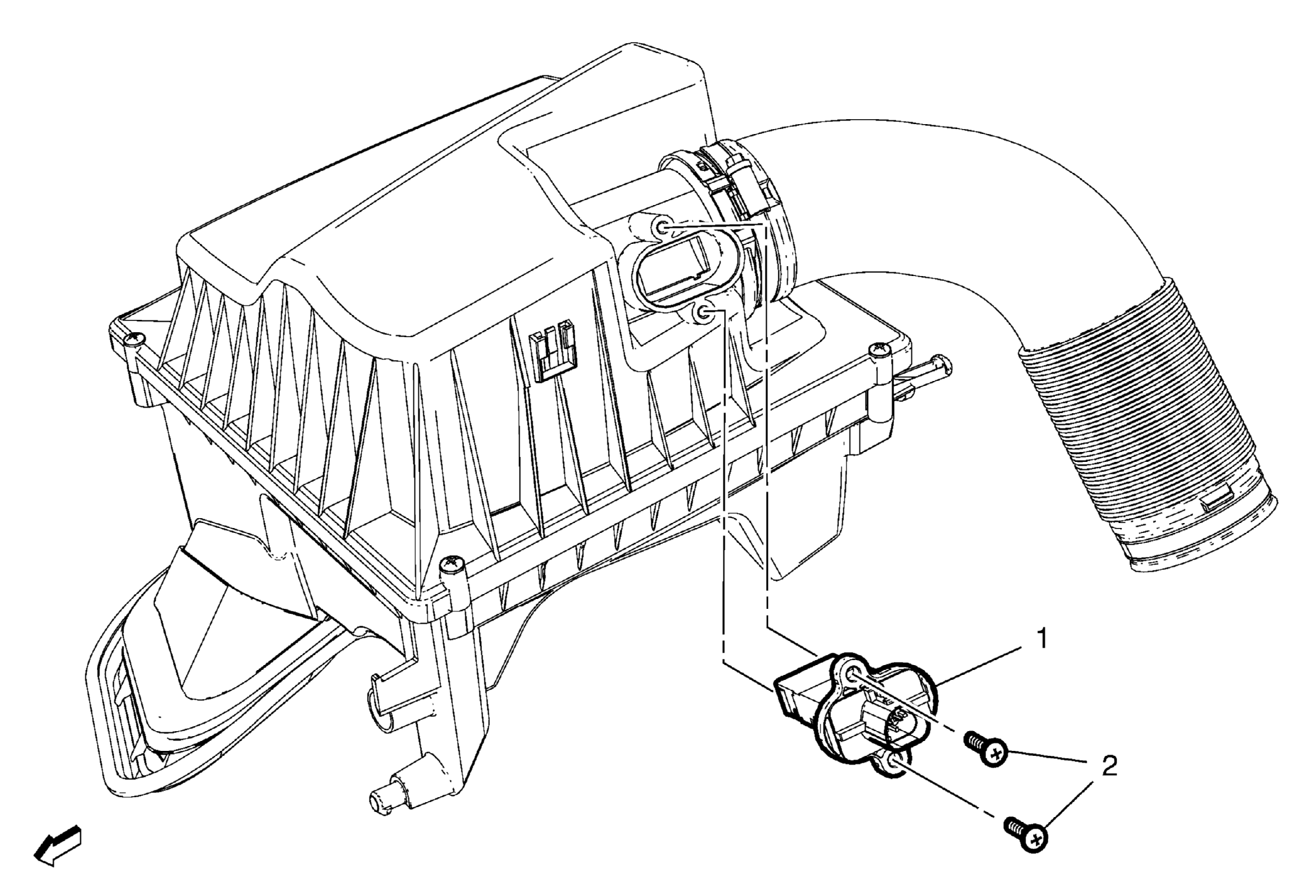

Fig 1: Mass Airflow Sensor
GM2538034Courtesy of GENERAL MOTORS COMPANY
Mass Airflow Sensor Replacement

Callout Component Name
1 Mass Airflow Sensor Bolts (Qty 2)
CAUTION:

Refer to Fastener Caution .

2 Mass Airflow Sensor

Procedure

  1. Disconnect the electrical connector.
  2. After replacement of mass air flow sensor, use a scan tool to run the learn functions. Refer to Engine Control Module Programming and Setup .
