Spark Plug Replacement

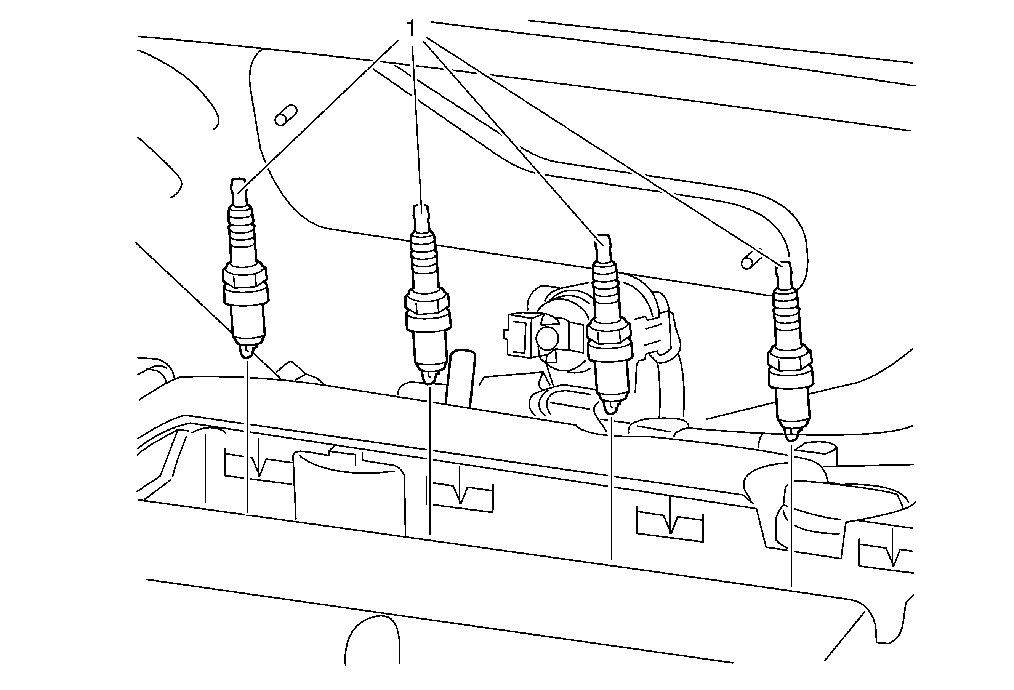

Fig 1: Spark Plugs
GM2020163Courtesy of GENERAL MOTORS COMPANY
Spark Plug Replacement

Callout Component Name
Preliminary Procedure
Remove the ignition coil. Refer to Ignition Coil Replacement .
1 Spark Plug Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
25 N.m (18 lb ft)
