Power, Ground, Data Communications And Subsystem References (1 Of 4)

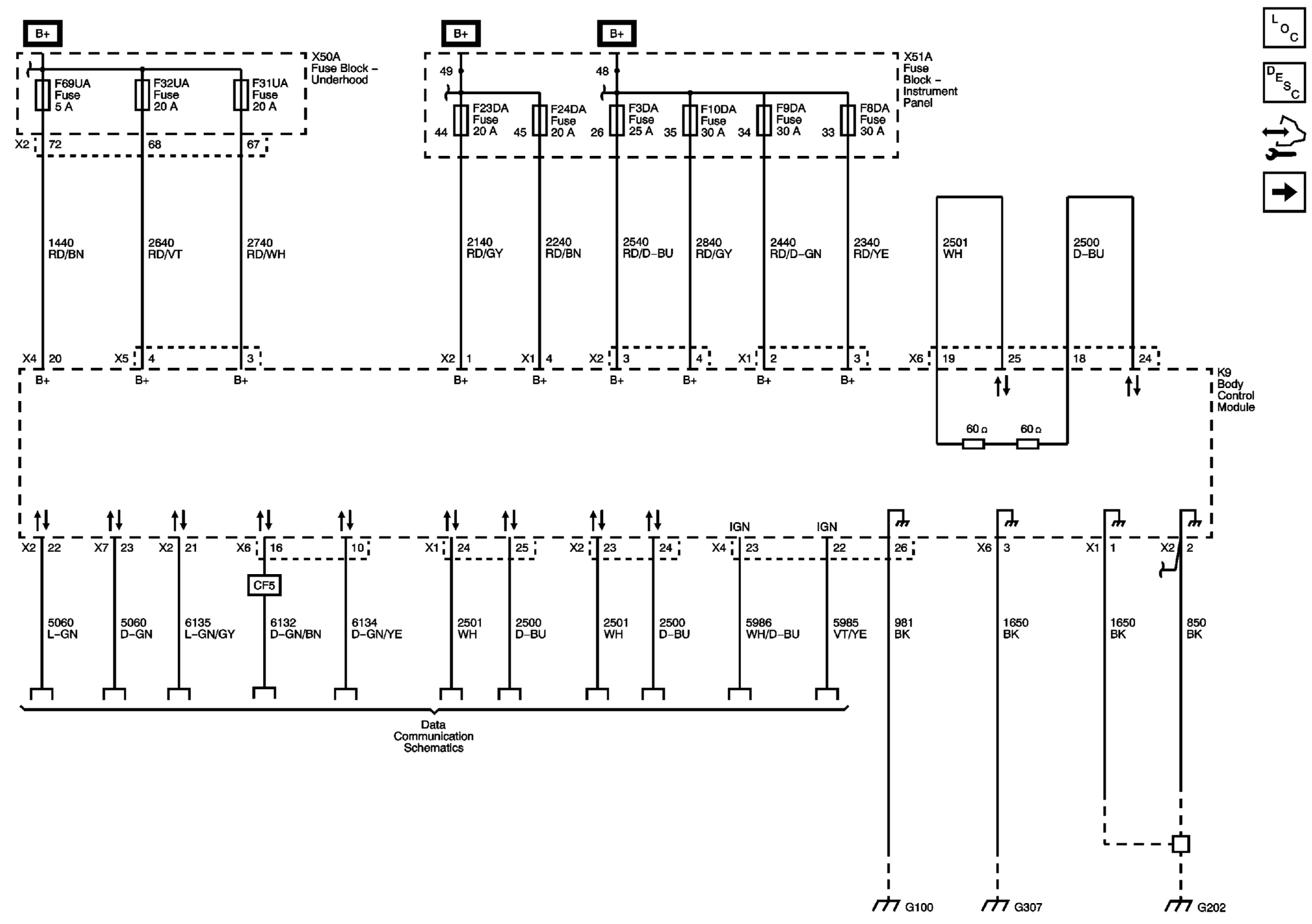

Fig 1: Power, Ground, Data Communications And Subsystem References Wiring Schematic (1 Of 4)
GM2587654Courtesy of GENERAL MOTORS COMPANY
