Local Interconnect Network (LIN) Serial Data

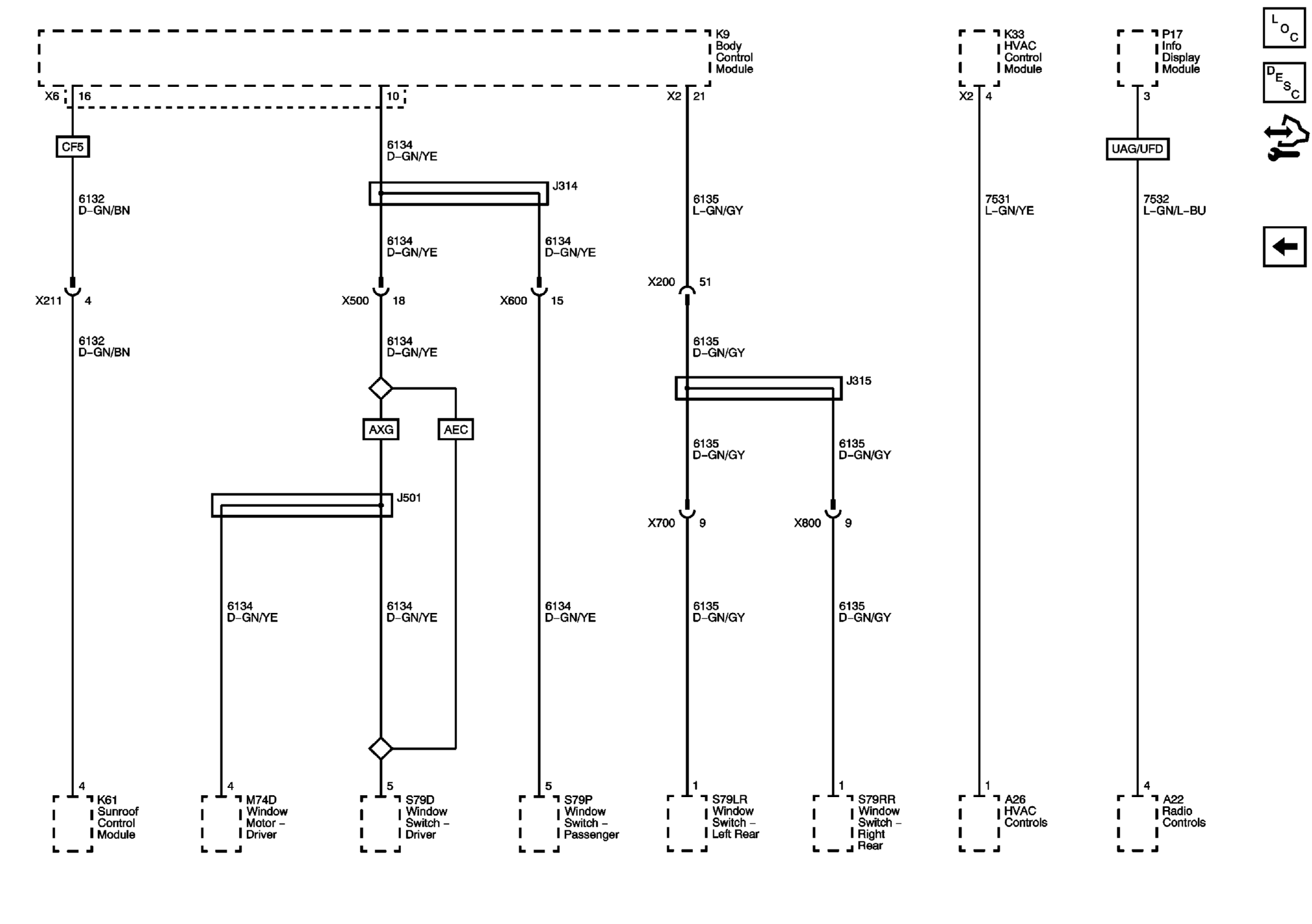

Fig 1: Local Interconnect Network (LIN) Serial Data Wiring Schematic
GM2587653Courtesy of GENERAL MOTORS COMPANY
