Front Seat Belt Guide Adjuster Replacement

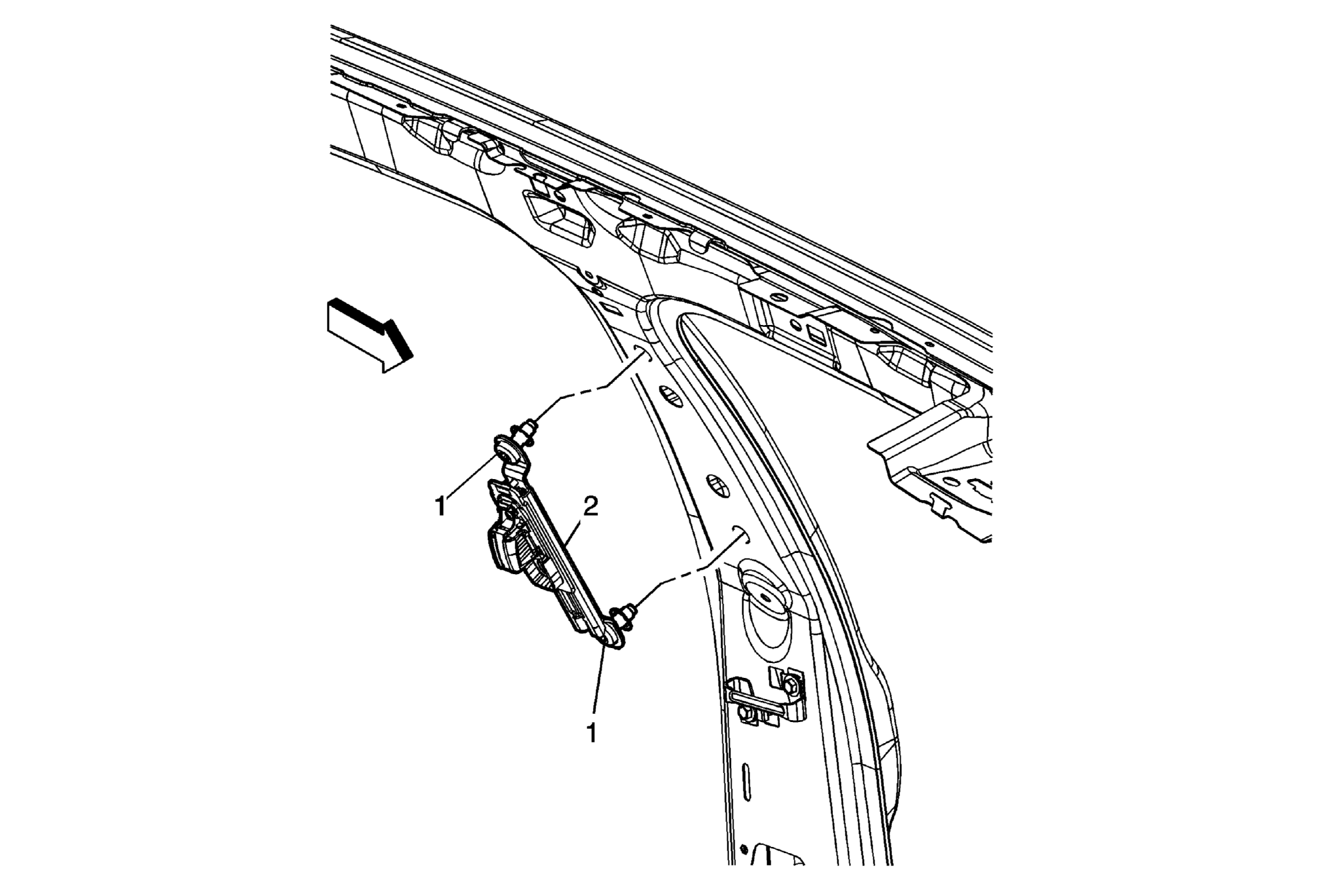

Fig 1: Front Shoulder Belt Guide Adjuster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the center pillar upper garnish molding. Refer to Center Pillar Upper Garnish Molding Replacement .
1	Front Seat Shoulder Belt Guide Adjuster Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Front Seat Shoulder Belt Guide Adjuster
