Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

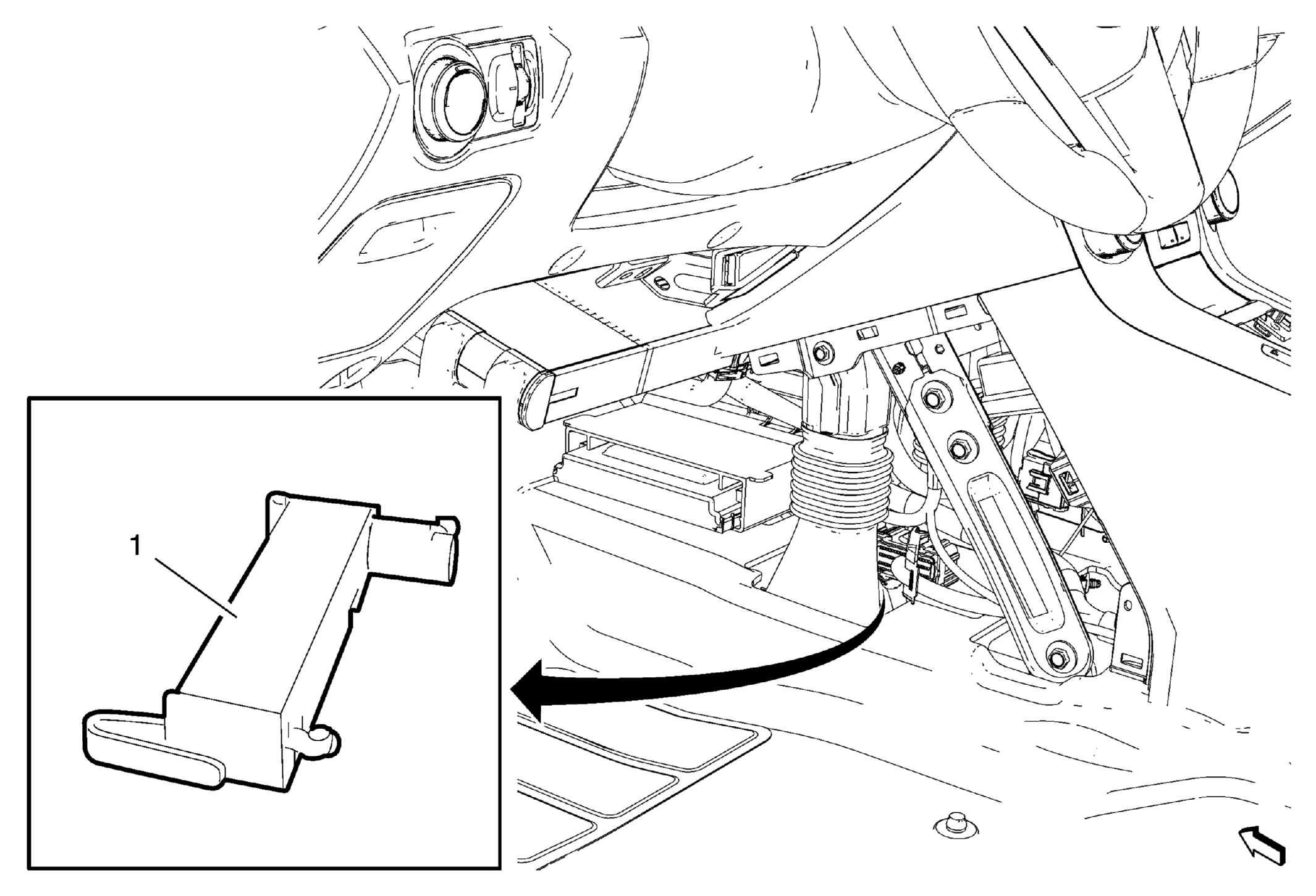

Fig 1: Ignition Lock Key Transmitter Antenna - Instrument Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side .
1	Ignition Lock Key Transmitter Antenna - Instrument Panel Procedure To access the antenna remove the air duct. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures
Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side .

Ignition Lock Key Transmitter Antenna - Instrument Panel

Procedure
