Fuel Tank Filler Pipe Replacement

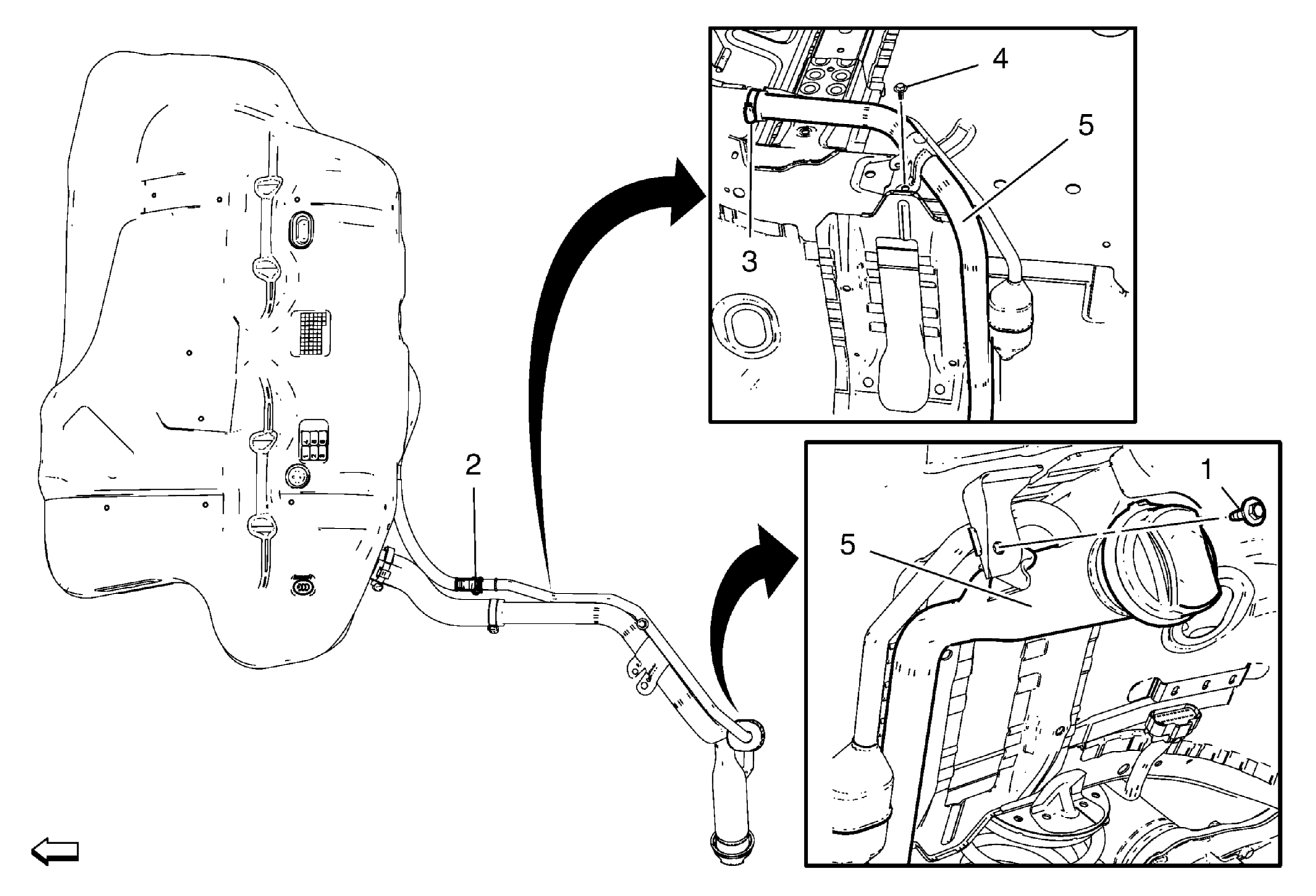

Fig 1: Fuel Tank Filler Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Gasoline or gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby. Preliminary Procedures Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the fuel tank filler pipe housing. Refer to Fuel Tank Filler Pipe Housing Replacement . Drain the fuel tank. Refer to Fuel Tank Draining .
1	Fuel Tank Filler Pipe Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Lower Recirculation Tube Quick Release Fitting
3	Fuel Tank Filler Pipe Clamp
4	Fuel Tank Filler Pipe Ground Bolt Tighten 9 N.m (80 lb in)
5	Fuel Tank Filler Pipe
