Installation Procedure

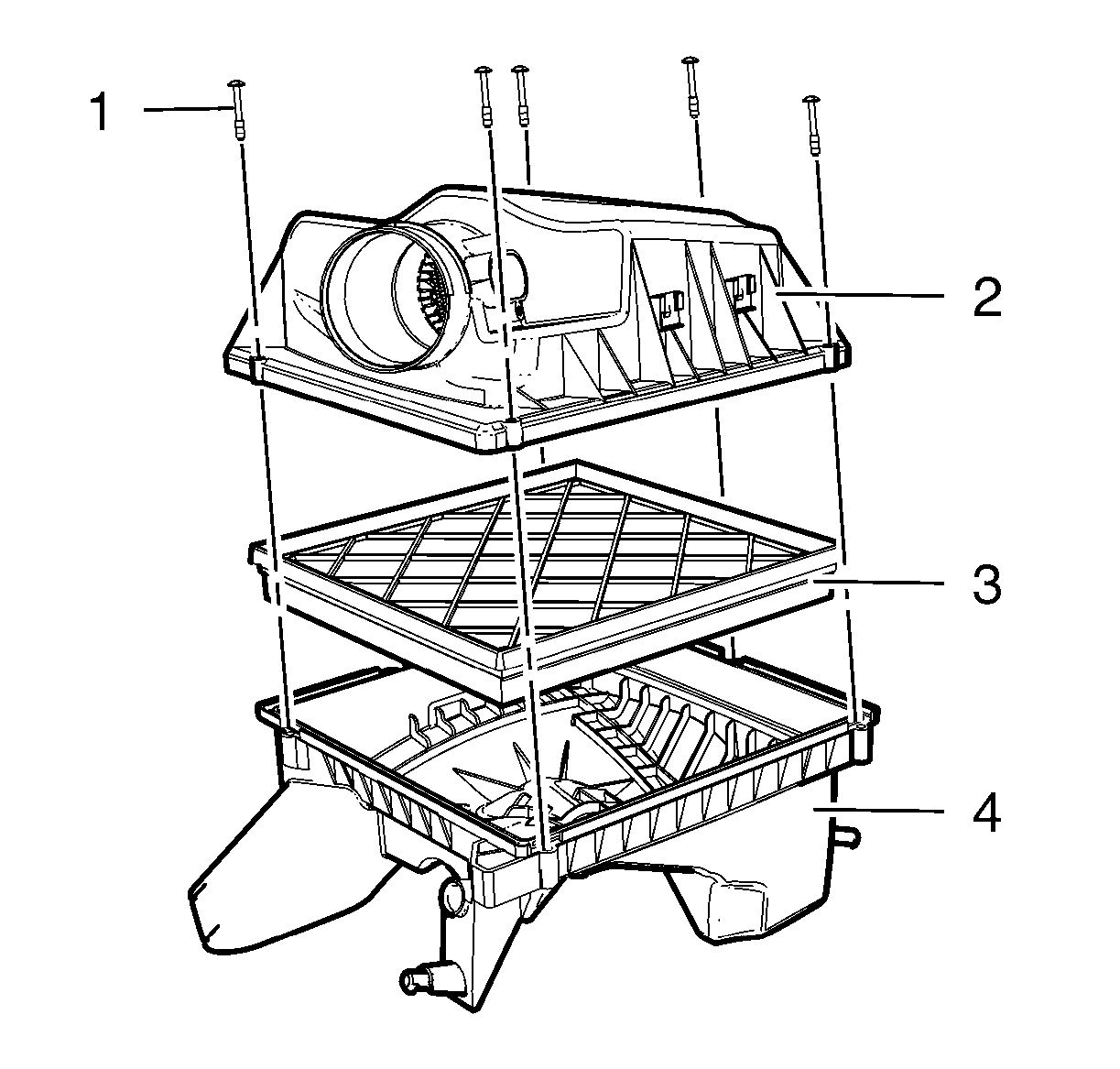

    Fig 1: Air Cleaner Element
    GM2191545Courtesy of GENERAL MOTORS COMPANY
  1. Install the air cleaner element (3).
  2. Install the air cleaner upper housing (2) to the air cleaner lower housing (4).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the 5 air cleaner housing bolts (1).

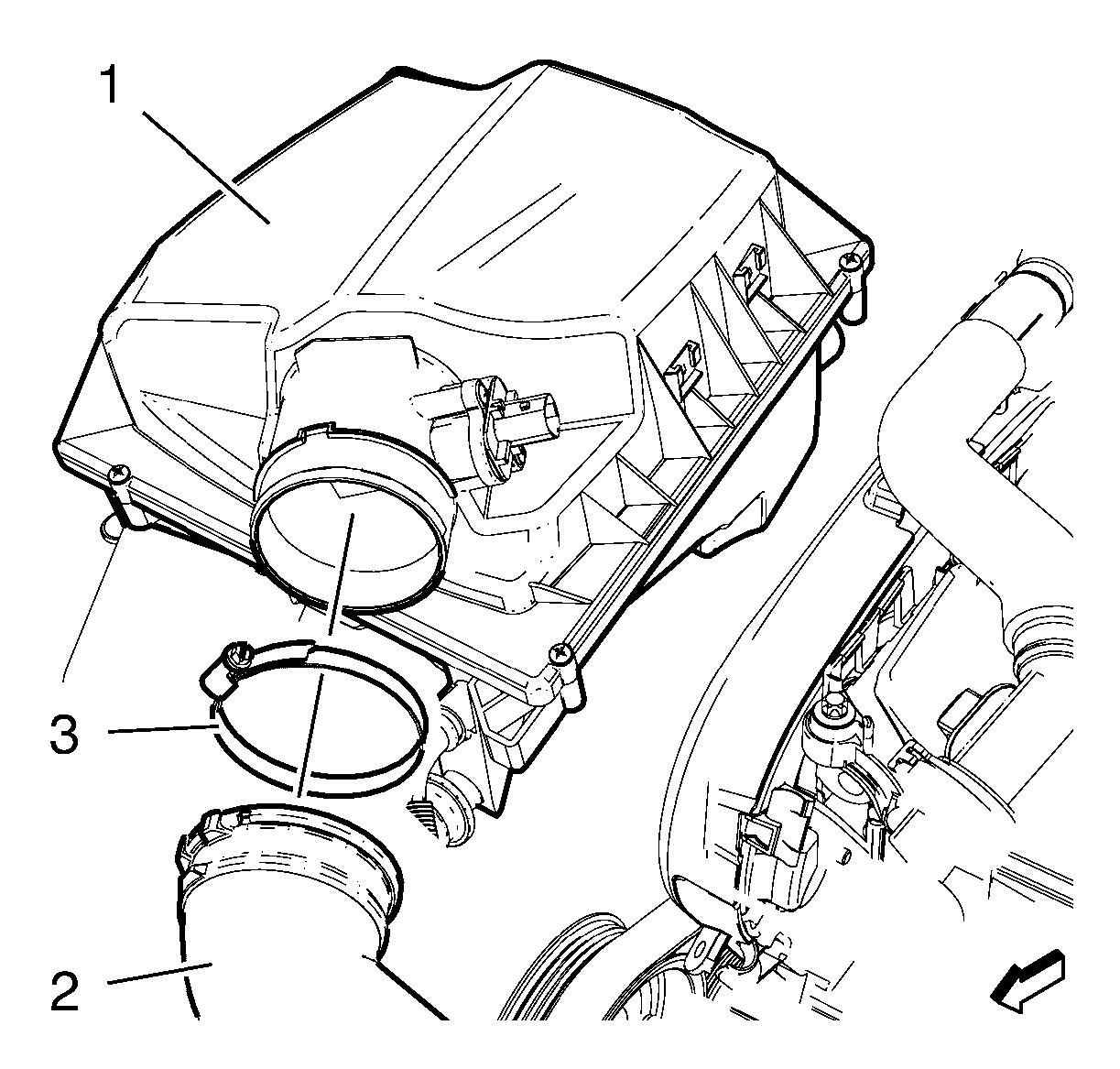

    4. Fig 2: Air Cleaner Housing Air Cleaner Housing, Mass Air Flow Sensor Wiring Harness Plug And Mass Air Flow Sensor
    GM2191547Courtesy of GENERAL MOTORS COMPANY
  4. Install the air cleaner outlet duct (2) to the air cleaner housing (1).
  5. Install the air cleaner outlet duct clamp (3).

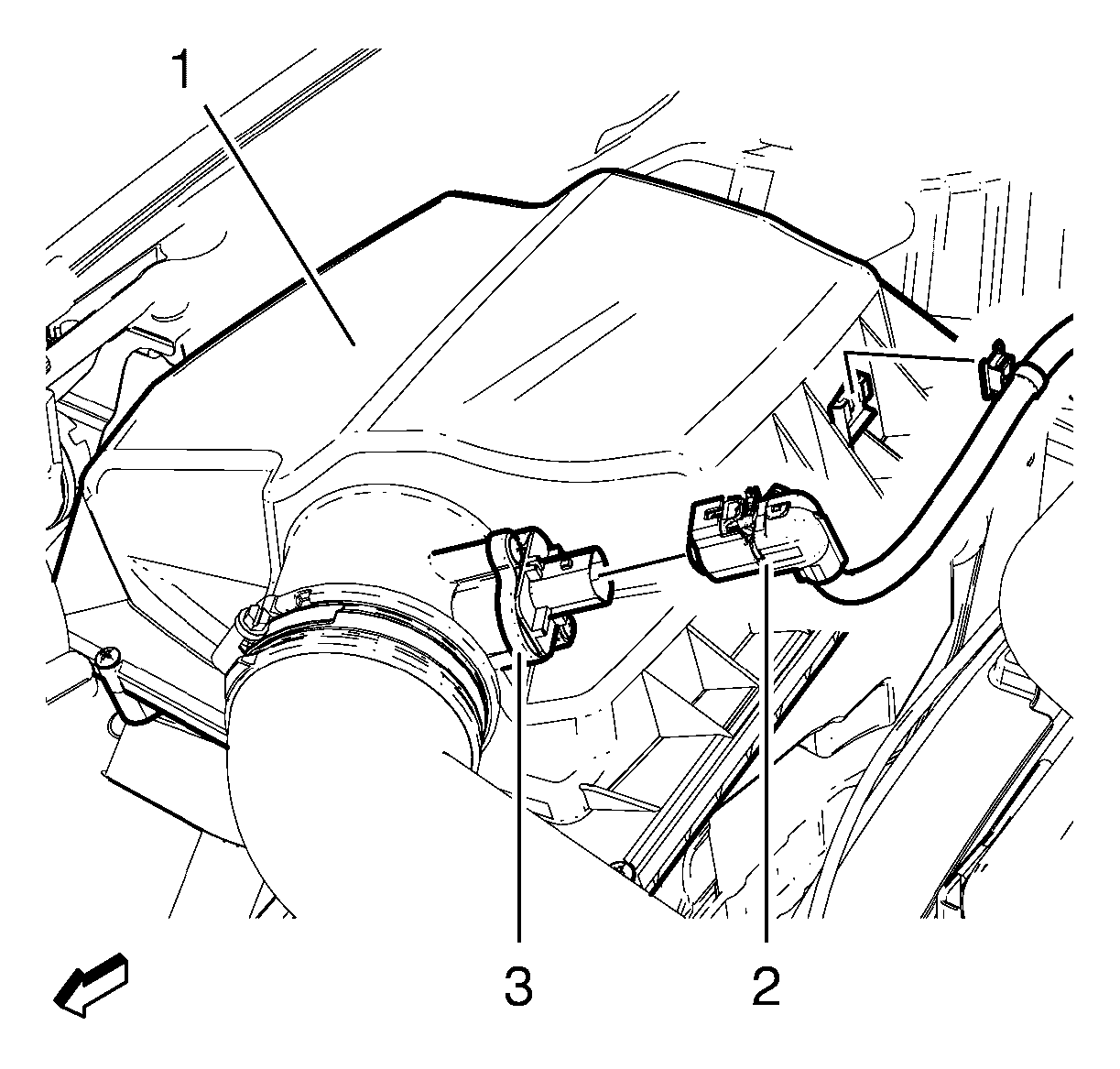

    6. Fig 3: Air Cleaner Housing, Mass Air Flow Sensor Wiring Harness Plug And Mass Air Flow Sensor
    GM2191533Courtesy of GENERAL MOTORS COMPANY
  6. Clip in mass air flow sensor wiring harness retainer clip to air cleaner housing (1).
  7. Connect the mass air flow sensor wiring harness plug 2) to the mass air flow sensor (3).
  8. Close hood.
