Installation Procedure

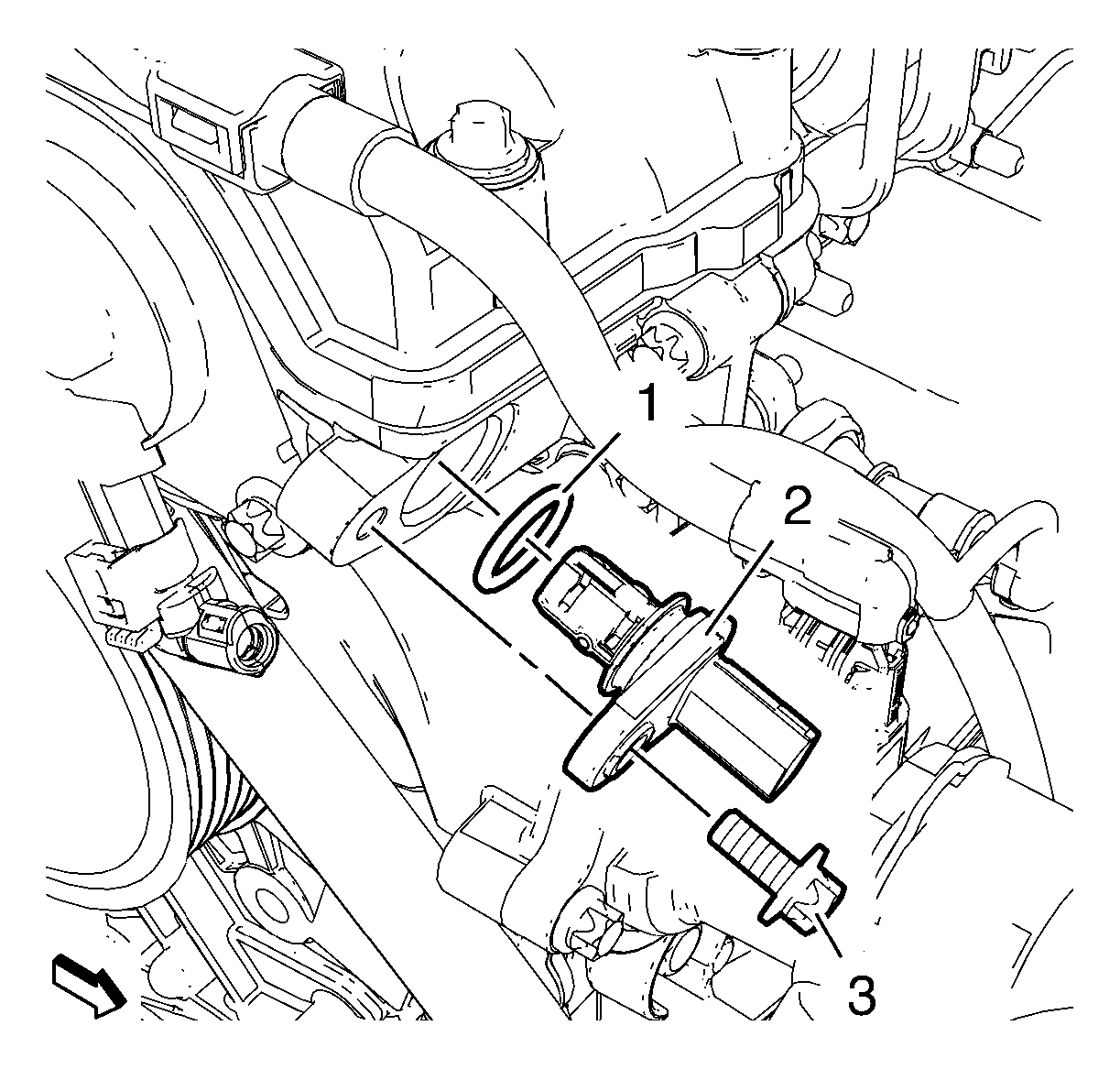

    Fig 1: Camshaft Position Sensor
    GM2191799Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Graphic shows exhaust camshaft position sensor. Use same procedure for Intake camshaft position sensor.

  1. Install the camshaft position sensor (2) and the seal ring (1).
    2. CAUTION:

    Refer to Fastener Caution

  2. Install the camshaft position sensor bolt (3) and tighten to 8 N.m (71 lb in).

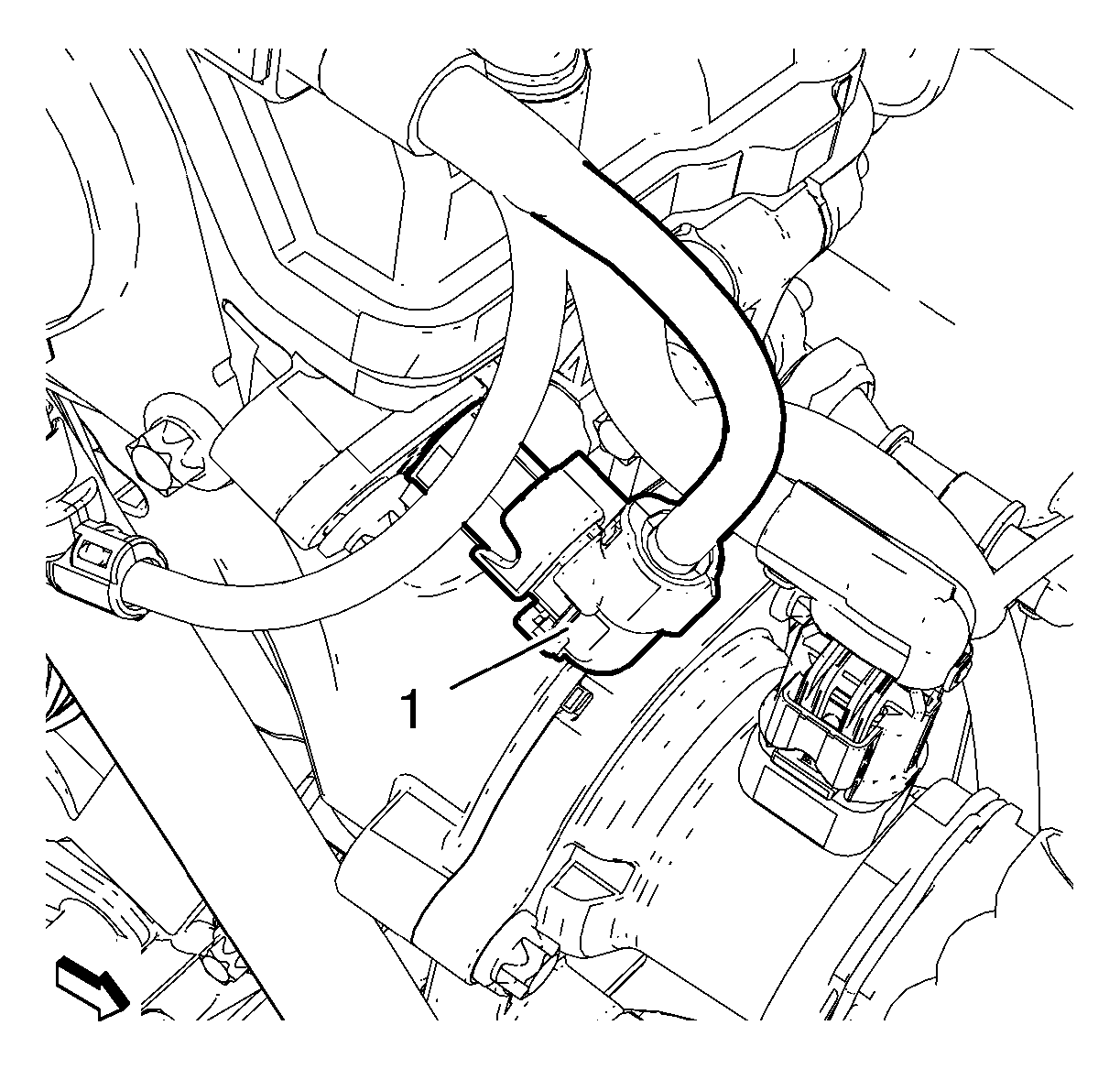

    3. Fig 2: Camshaft Position Sensor Wiring Harness Plug
    GM2191800Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Graphic shows exhaust camshaft position sensor. Use same procedure for Intake camshaft position sensor.

  3. Connect the camshaft position sensor wiring harness plug (1).
  4. After replacement of an camshaft position sensor, use a scan tool to speed up learn function. Refer to Engine Control Module Programming and Setup
  5. Close hood.
