Installation Procedure

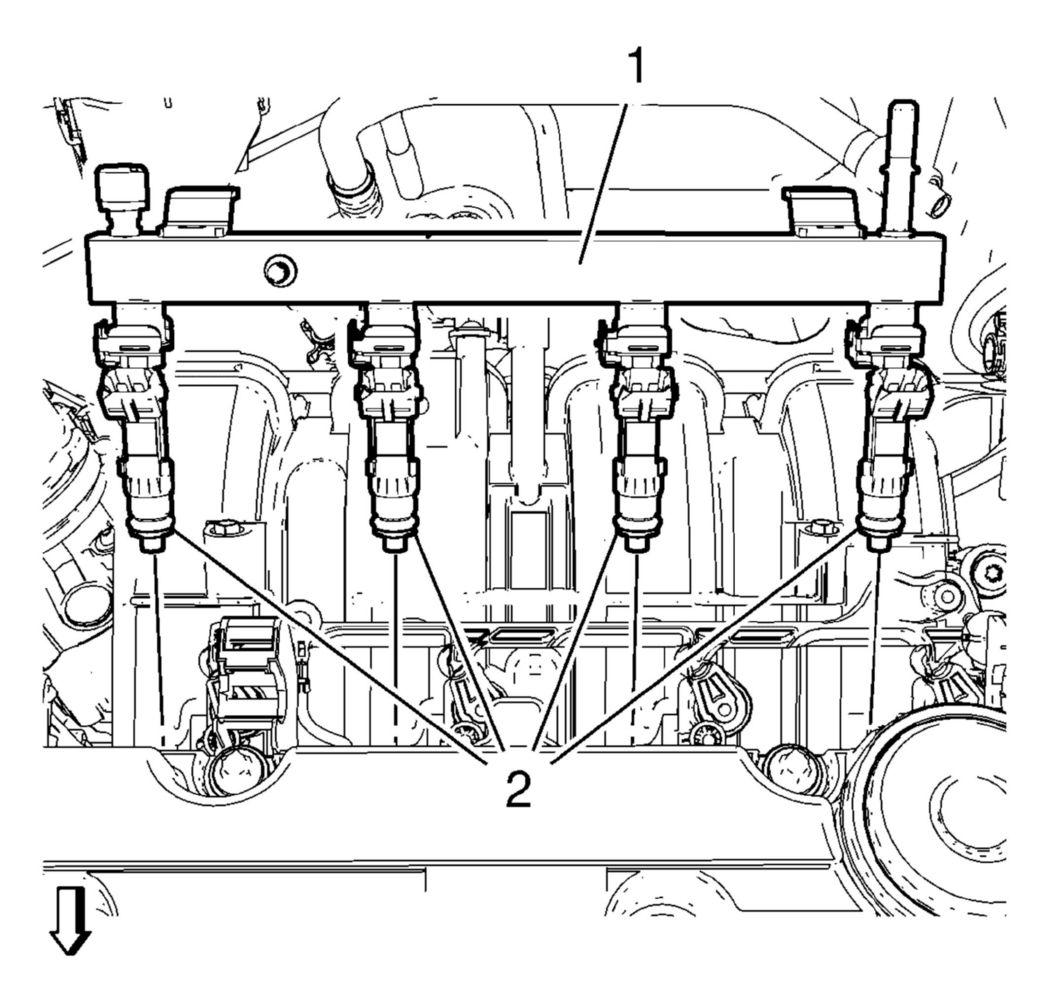

- Install the fuel injection fuel rail assembly (1) to the intake manifold. Use NEW fuel injector seal rings (2).

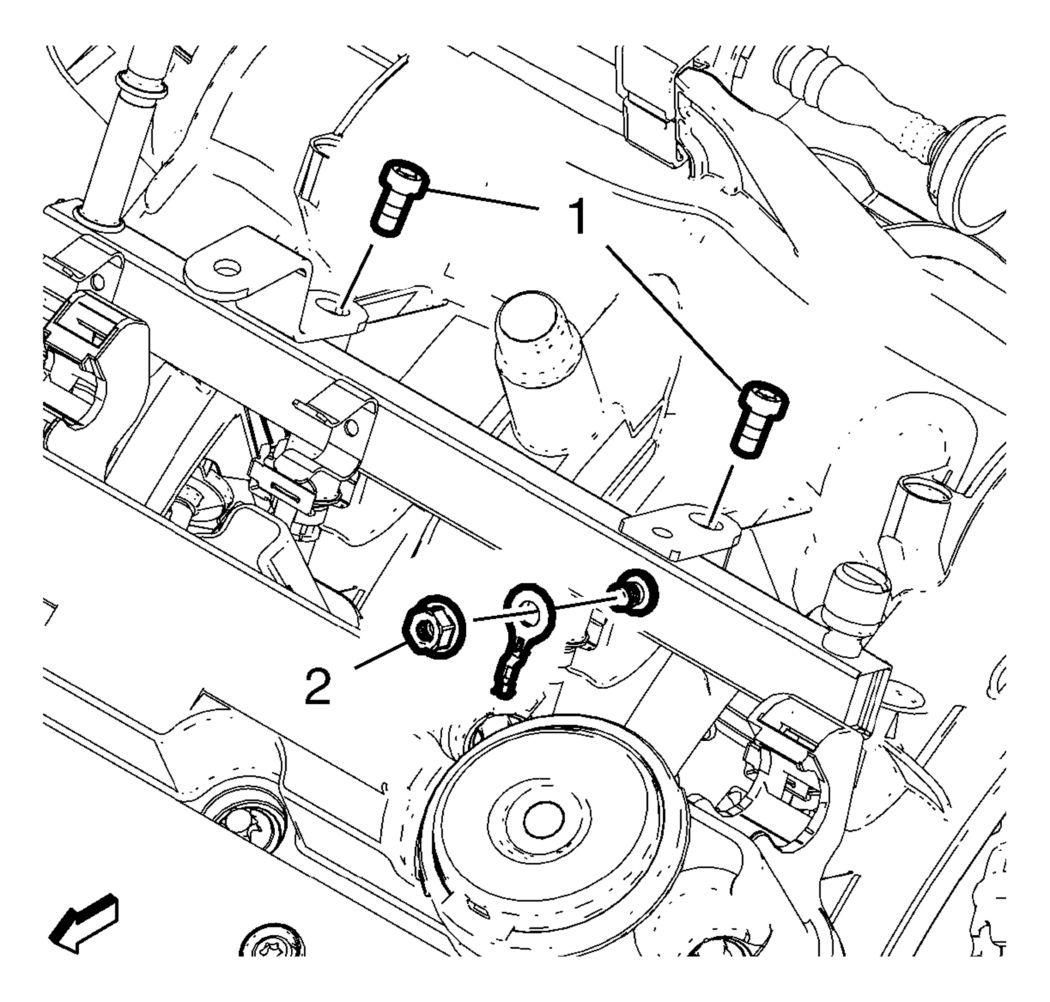

- Install the 2 fuel injection fuel rail bolts (1) and tighten to 7 N.m (62 lb in).
- Install the ground cable and the ground cable nut (2) and tighten.

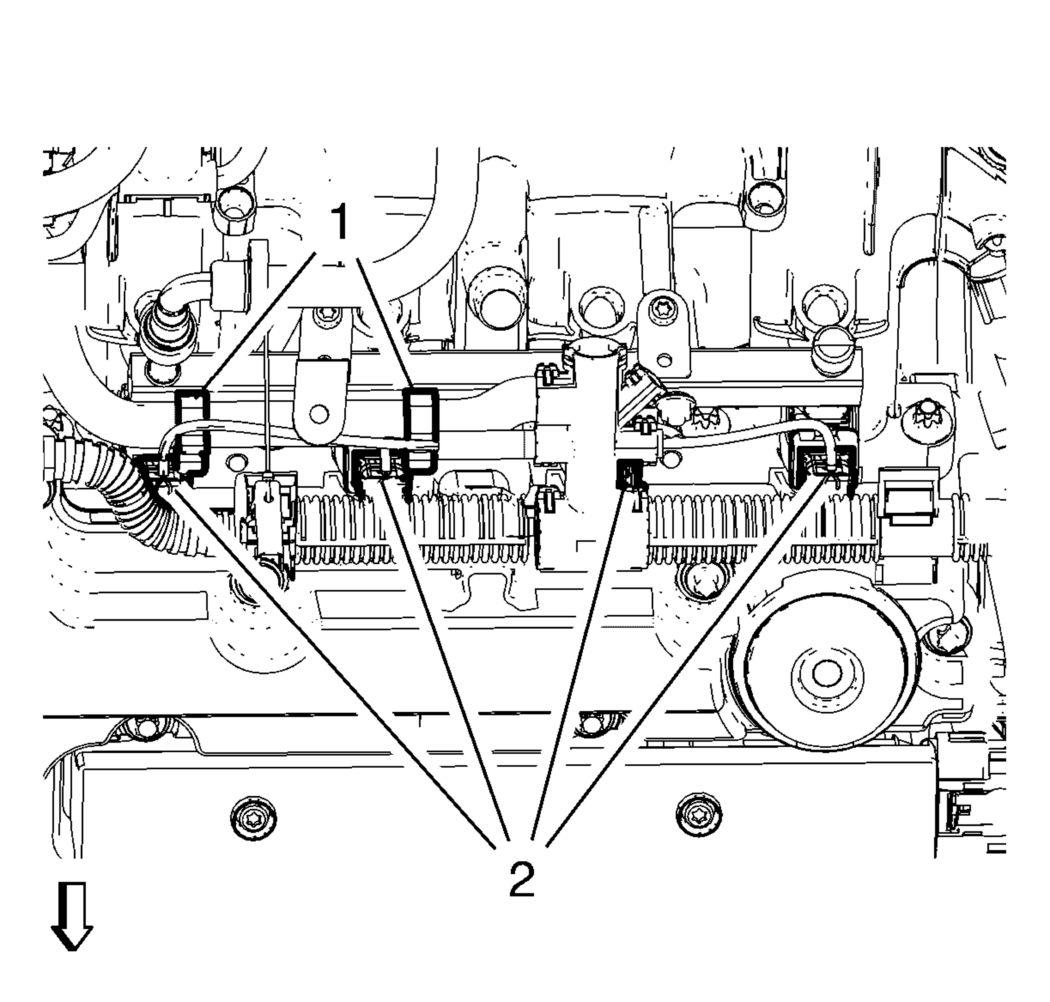

- Connect the 4 fuel injector wiring harness plugs (2).
- Clip the ECM wiring harness to the retainer clip (1) and the camshaft cover.
- Install the positive crankcase ventilation pipe to the intake manifold. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement .
- Install the fuel feed pipe to the fuel injection fuel rail. Refer to Fuel Feed Pipe Replacement .
- Install the engine sight shield.
- Connect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
NOTE:
Lubricate the 4 fuel injector seal rings (2) with clean engine oil.
CAUTION:
Refer to Fastener Caution .
