Body Control Module Bracket Replacement

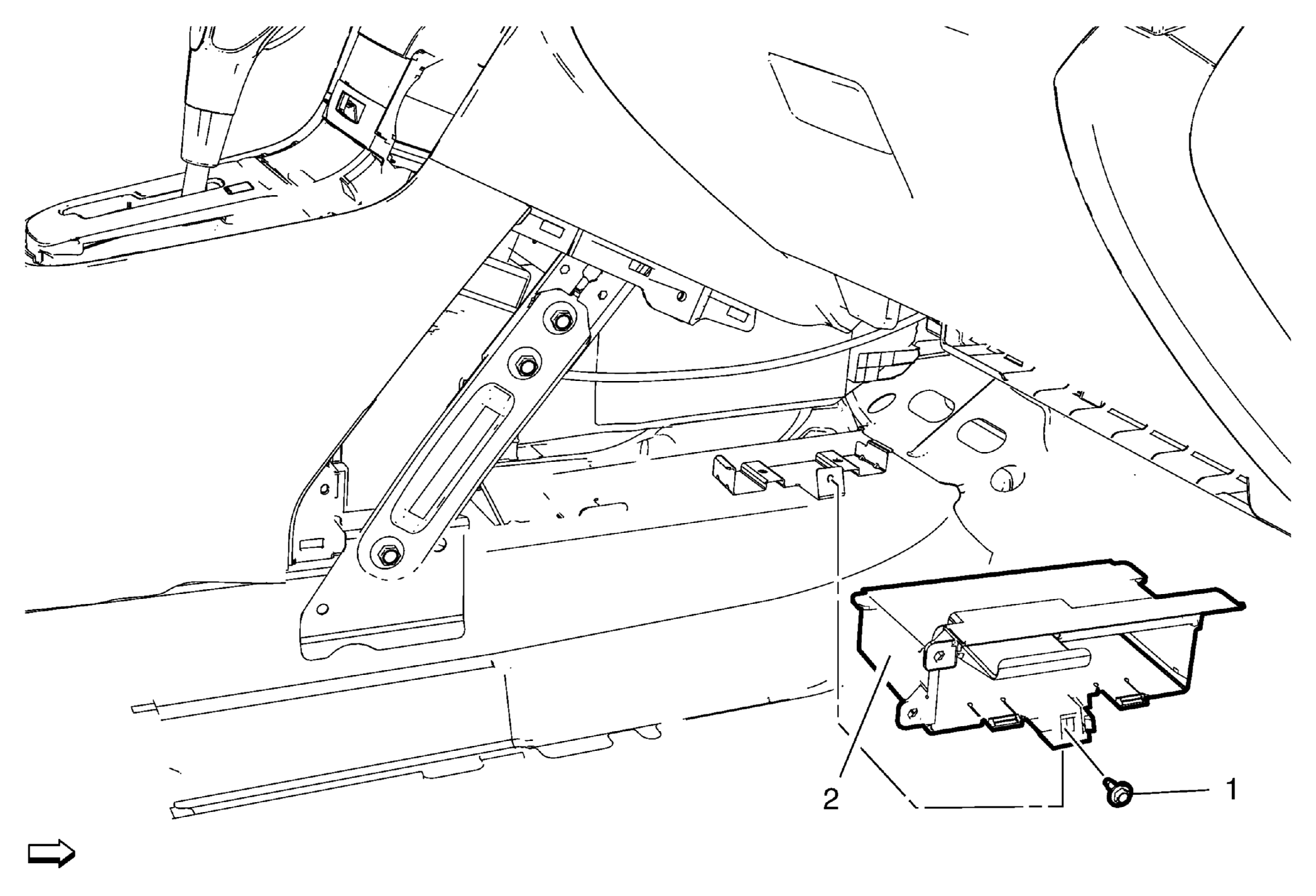

Fig 1: Body Control Module Bracket

GM2372600

Courtesy of GENERAL MOTORS COMPANY

Body Control Module Bracket Replacement

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove instrument panel lower trim panel - right side. Refer to Instrument Panel Lower Trim Panel Replacement - Right Side .
Remove the body control module.

1

Body Control Module Bracket Bolt

CAUTION:

Refer to Fastener Caution .

2

Body Control Module Bracket
