Air Cleaner Assembly Replacement

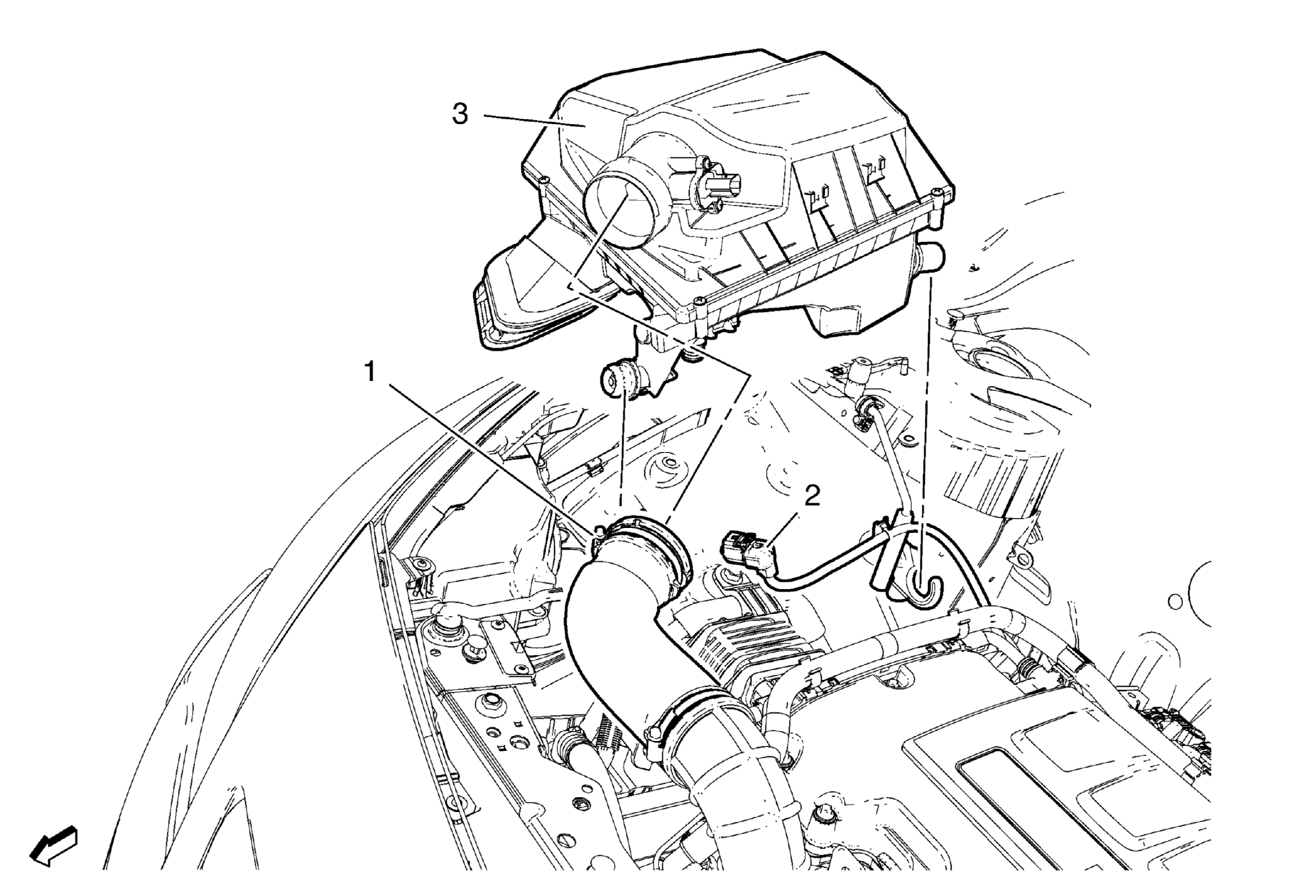

Fig 1: Air Cleaner Assembly
GM2191936Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Assembly Replacement

Callout Component Name
1 Air Cleaner Outlet Duct Clamp.
Procedure
Loosen clamp and remove air cleaner outlet duct from air cleaner assembly.
2 Mass Flow Sensor
Procedure
Disconnect mass air flow sensor wiring harness plug from mass air flow sensor and unclip from retainer clip.
3 Air Cleaner Assembly
