Fuel Injector Replacement

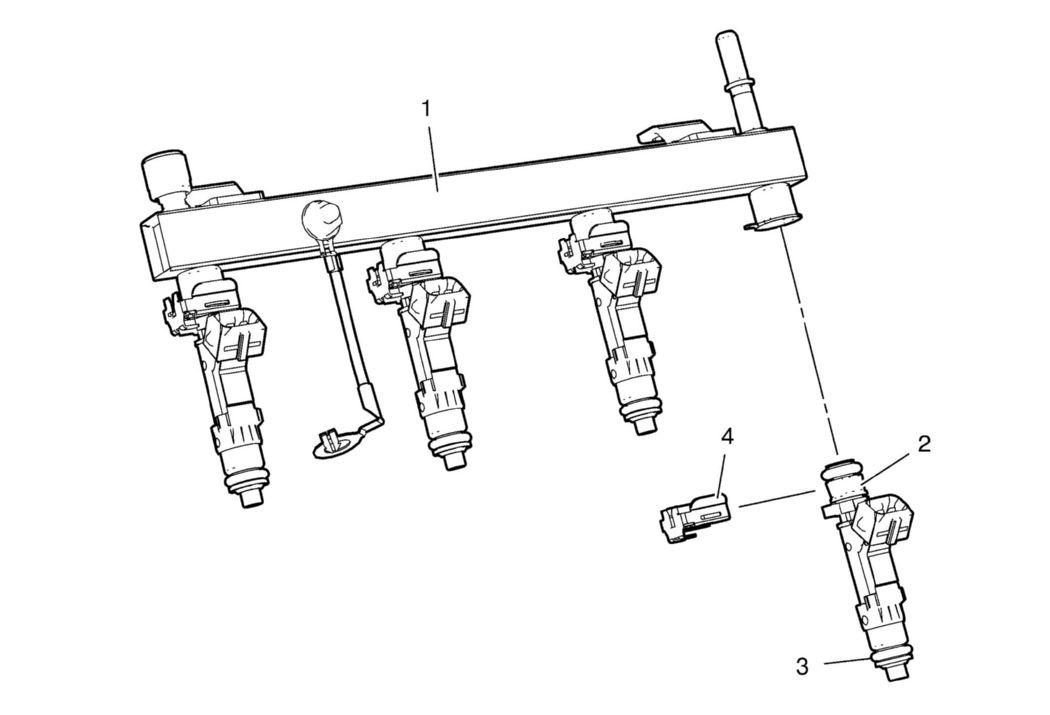

Fig 1: Fuel Injector
GM2191822Courtesy of GENERAL MOTORS COMPANY
Fuel Injector Replacement

Callout Component Name

Preliminary Procedure

  1. Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the fuel injection fuel rail assembly. Refer to Fuel Injection Fuel Rail Assembly Replacement .
1 Fuel Rail
2 Fuel Injector
3 Fuel Injector Seal Ring
4 Fuel Injector Retainer Clamp
