Installation Procedure

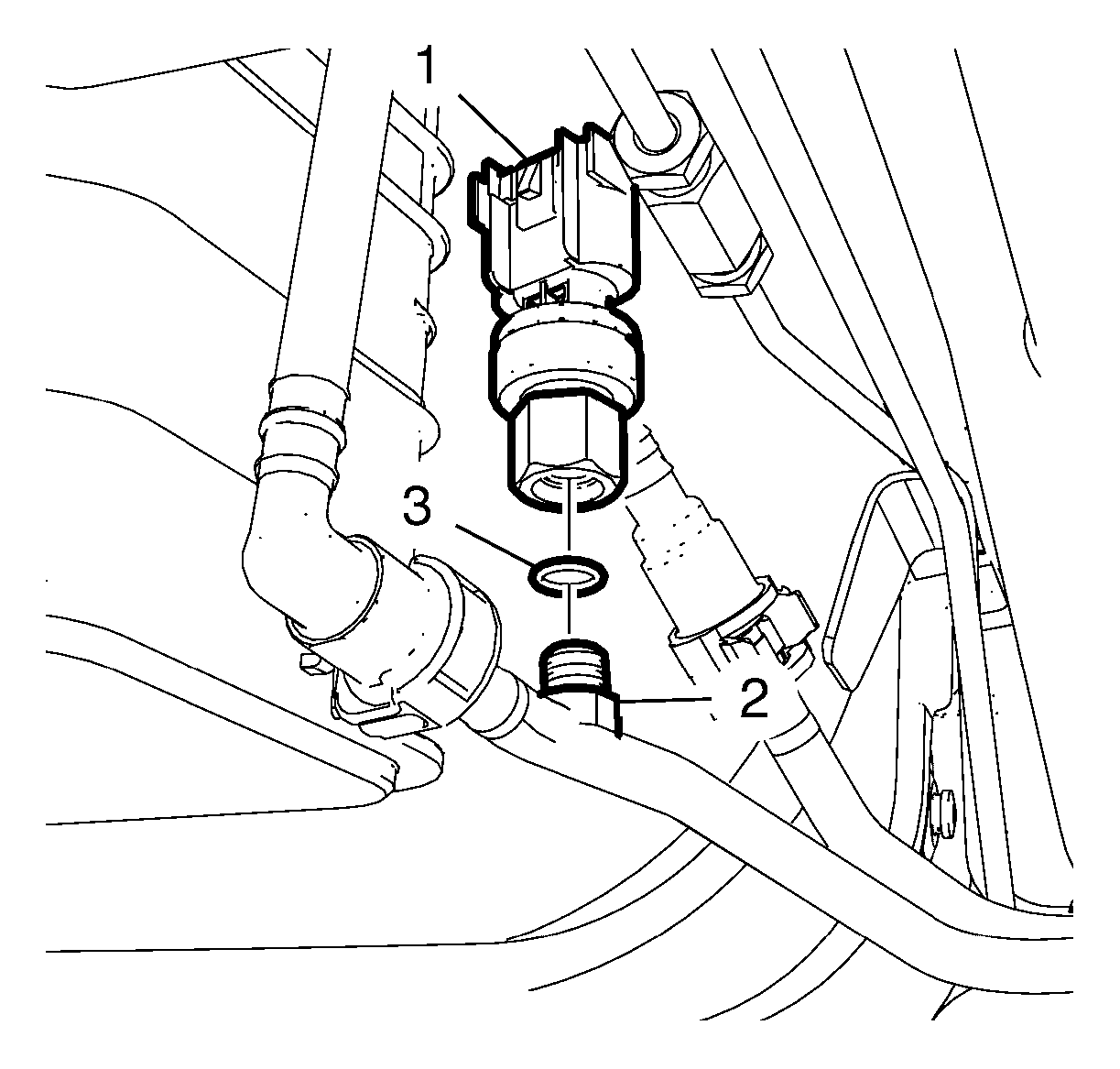

    Fig 1: Fuel Pressure Sensor And Fuel Pressure Relief Valve
    GM2373082Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW fuel pressure sensor seal ring (3).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the fuel pressure sensor (1) to the fuel pressure line (2) and tighten to 19 N.m (14 lb ft).

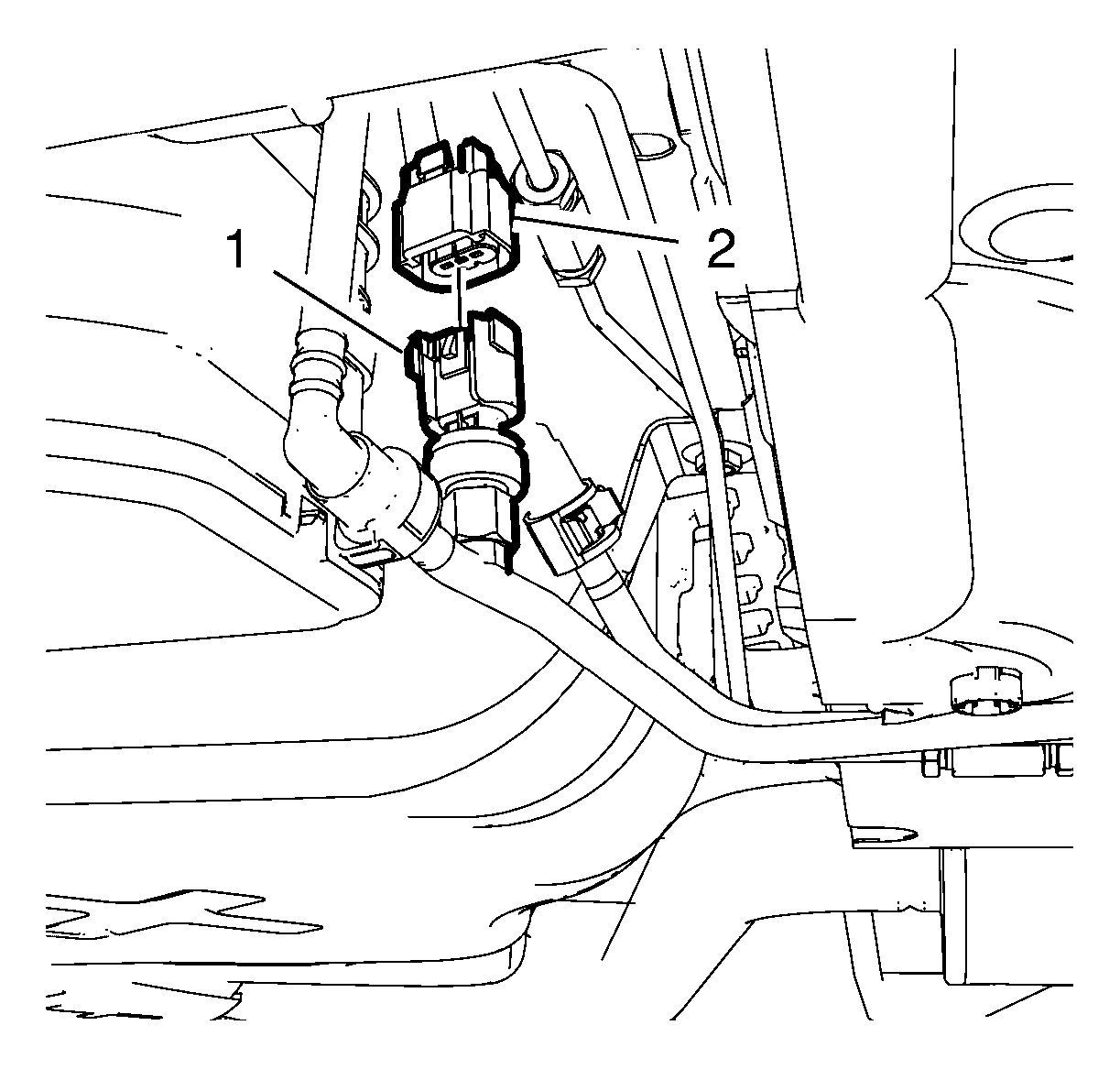

    3. Fig 2: Fuel Pressure Sensor
    GM2373081Courtesy of GENERAL MOTORS COMPANY
  3. Plug the fuel pressure sensor wiring harness plug (2) to the fuel pressure sensor (1).
  4. Lower the vehicle.
  5. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
