Installation Procedure

  1. Install the ignition coil.

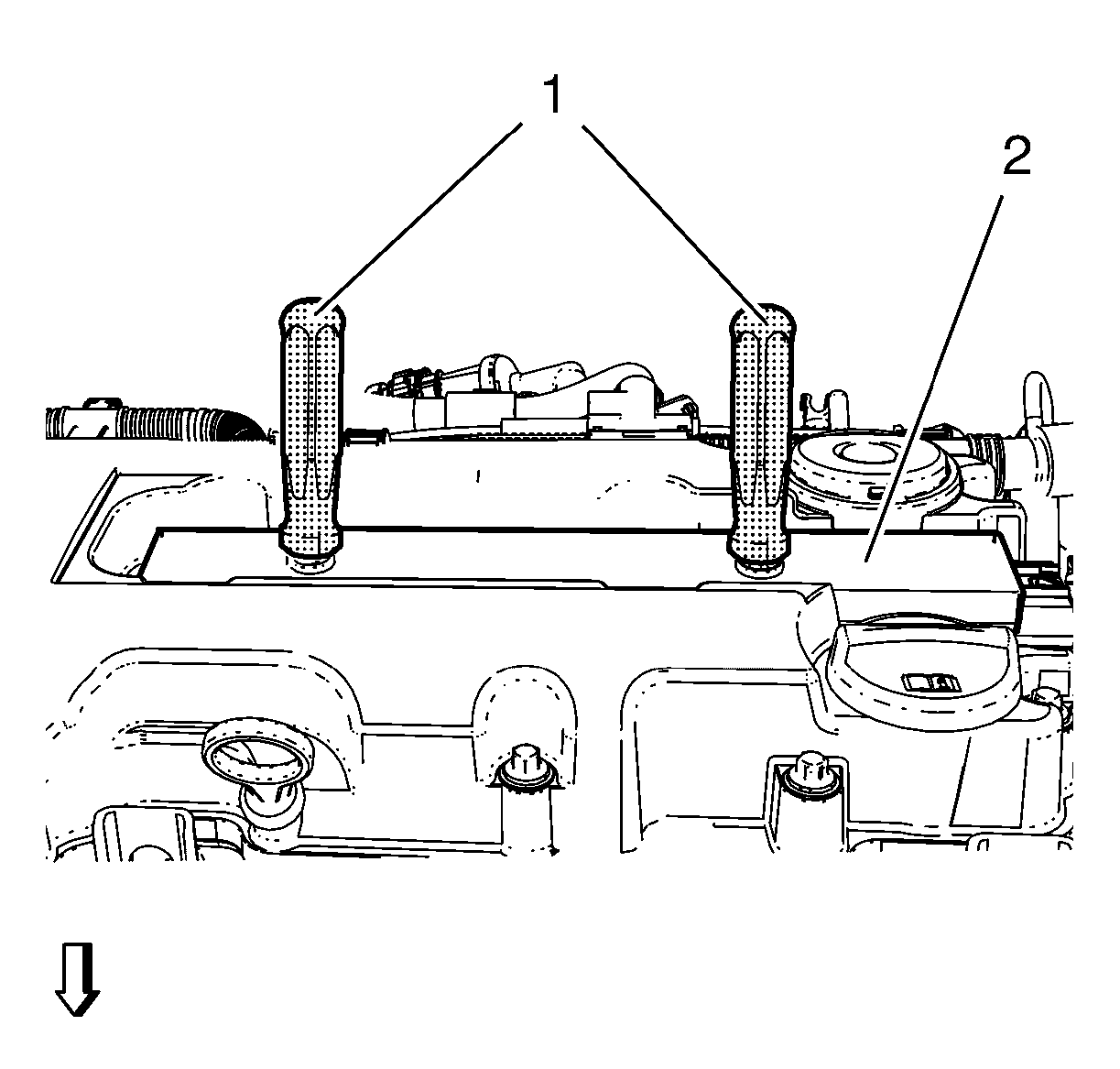

    2. Fig 1: Ignition Coil And Special Tool
    GM2191365Courtesy of GENERAL MOTORS COMPANY
  2. Remove EN-6009  remover (1) from ignition coil (2).

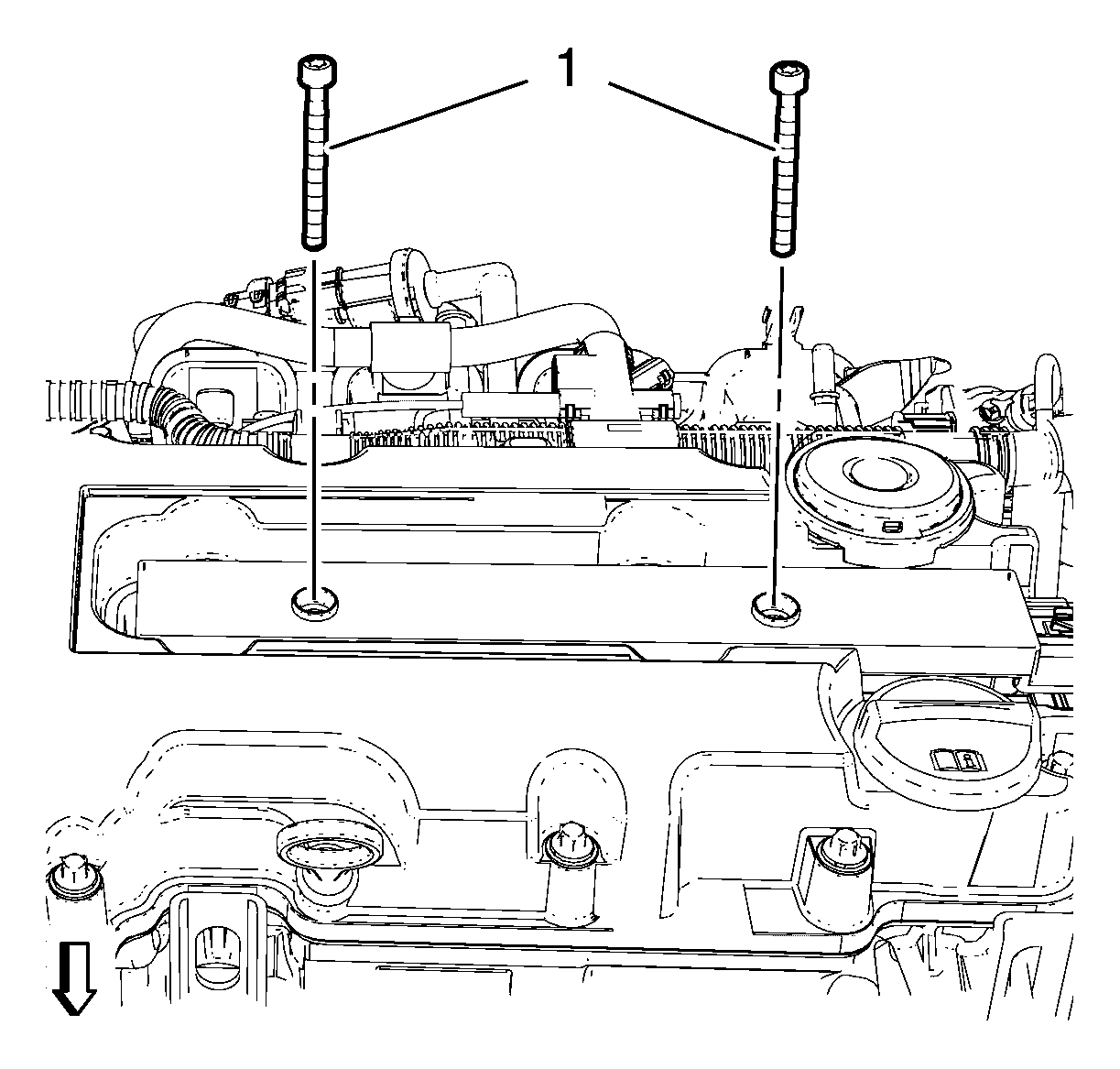

    3. Fig 2: Ignition Coil Bolts
    GM2191364Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the 2 ignition coil bolts (1) and tighten to 8 N.m (71 lb in).

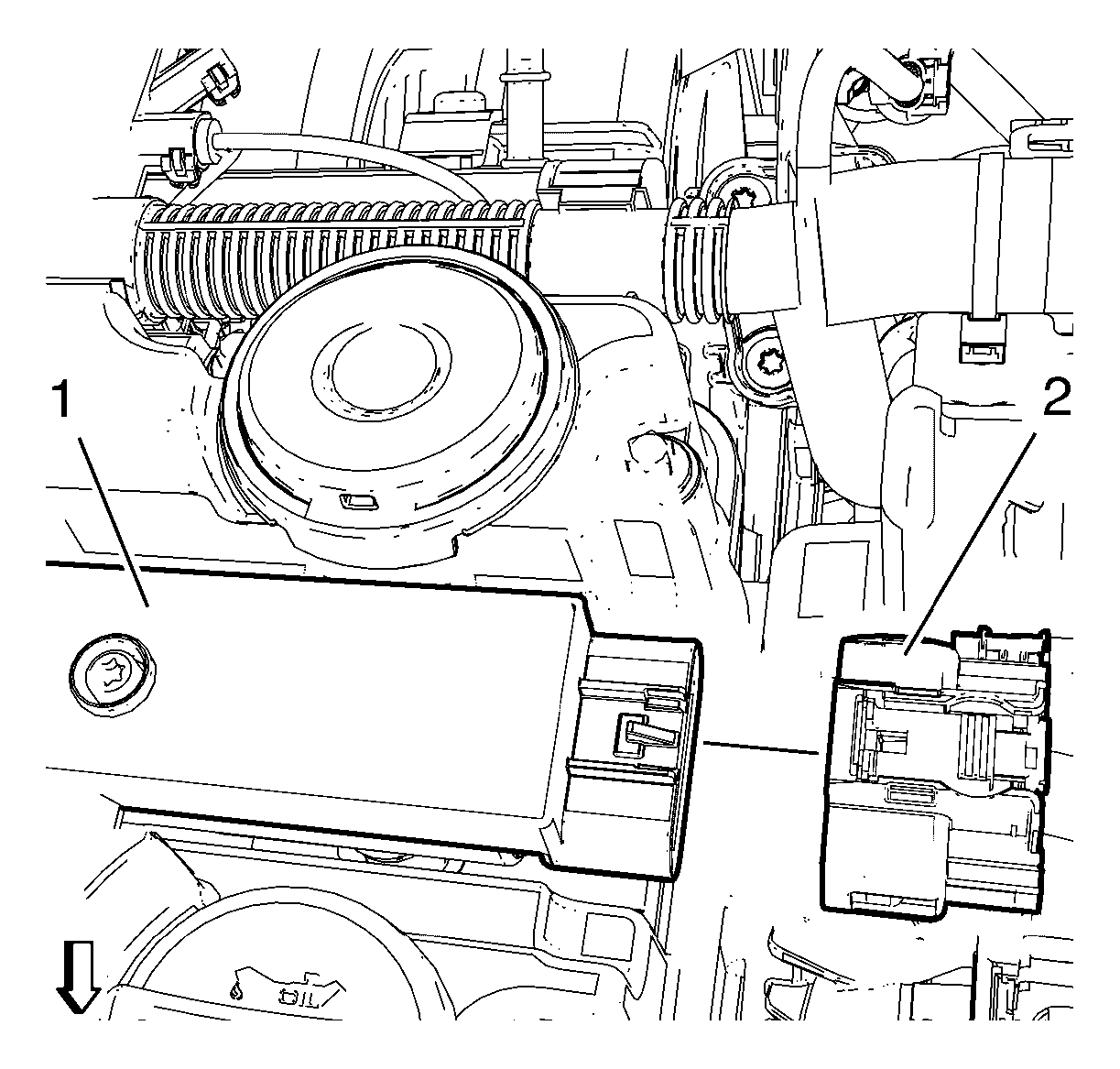

    4. Fig 3: Ignition Coil And Ignition Coil Wiring Harness Plug
    GM2191363Courtesy of GENERAL MOTORS COMPANY
  4. Connect ignition coil wiring harness plug (2) to ignition coil (1).
  5. Install engine sight shield.
