Intake Air Pressure and Temperature Sensor Replacement

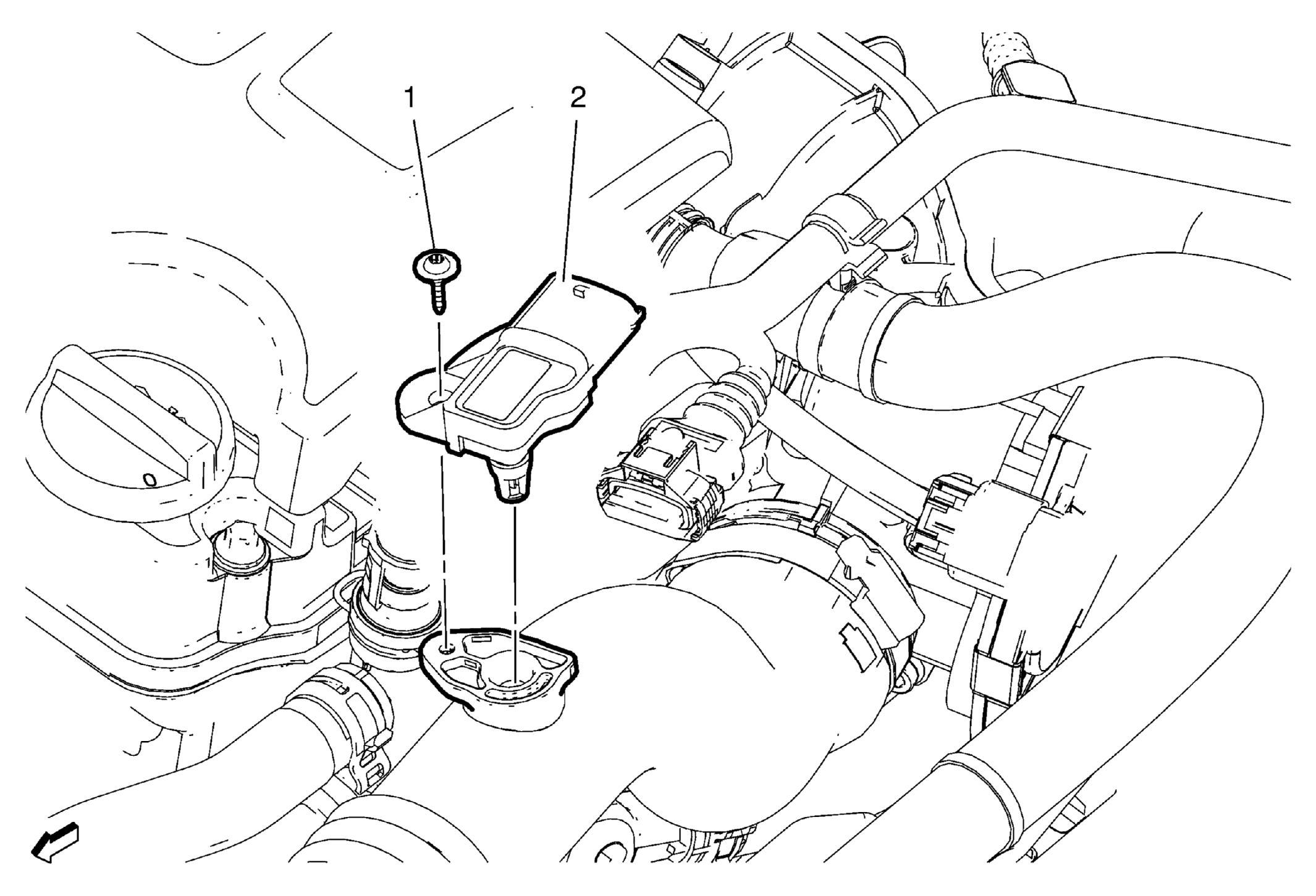

Fig 1: Intake Air Pressure And Temperature Sensor
GM2557111Courtesy of GENERAL MOTORS COMPANY
Intake Air Pressure and Temperature Sensor Replacement

Callout Component Name
1 Intake Air Temperature and Pressure Sensor Bolt
CAUTION:

Refer to Fastener Caution .

2 Intake Air Temperature and Pressure Sensor
Procedure
Disconnect the electrical connector.
