Manifold Absolute Pressure Sensor Replacement

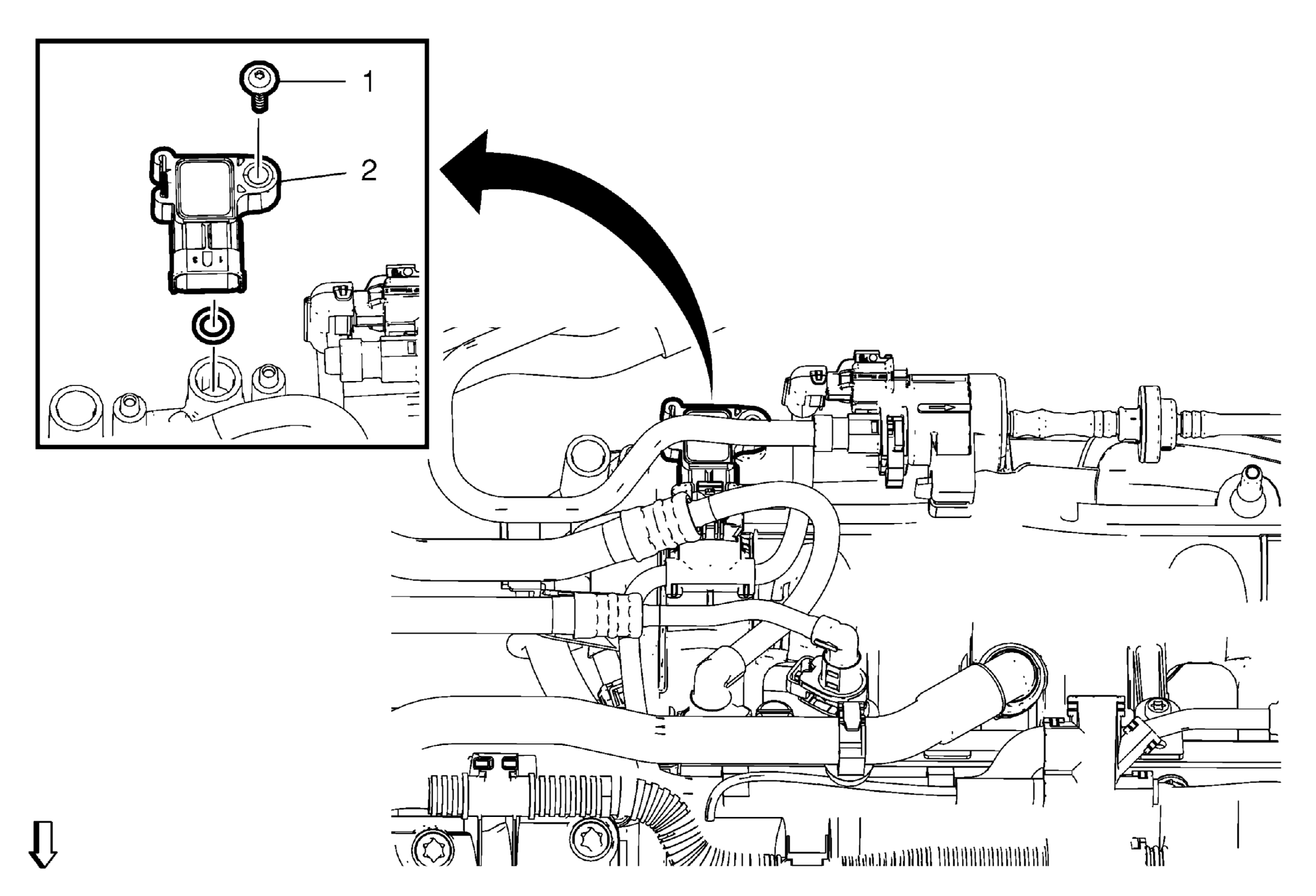

Fig 1: Manifold Absolute Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Manifold Absolute Pressure Sensor Bolt
2	Manifold Absolute Pressure Sensor Procedure Disconnect the electrical connector. After replacement of the manifold absolute pressure sensor use a scan tool to speed up the learn process. Refer to Engine Control Module Programming and Setup .

Callout

Component Name

Manifold Absolute Pressure Sensor Bolt

Manifold Absolute Pressure Sensor

Procedure

Disconnect the electrical connector.
After replacement of the manifold absolute pressure sensor use a scan tool to speed up the learn process. Refer to Engine Control Module Programming and Setup .
