Inflatable Restraint I/P Module Disable Switch (C99)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Inflatable Restraint I/P Module Disable Switch (C99)

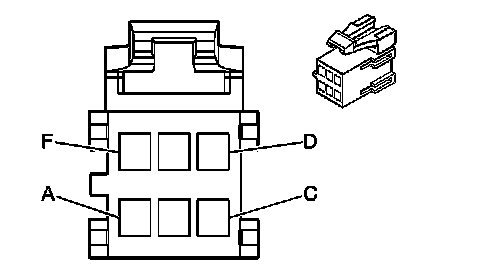

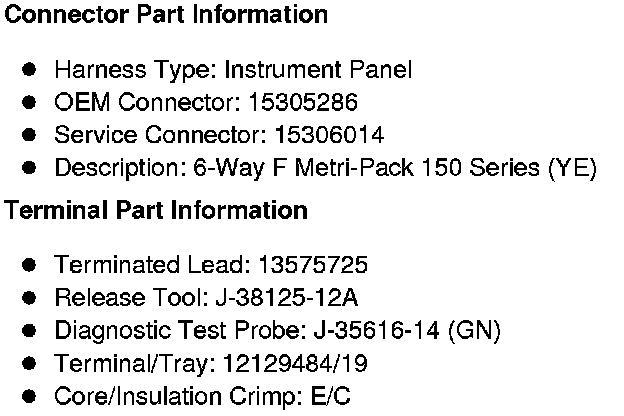

Component Connector End Views

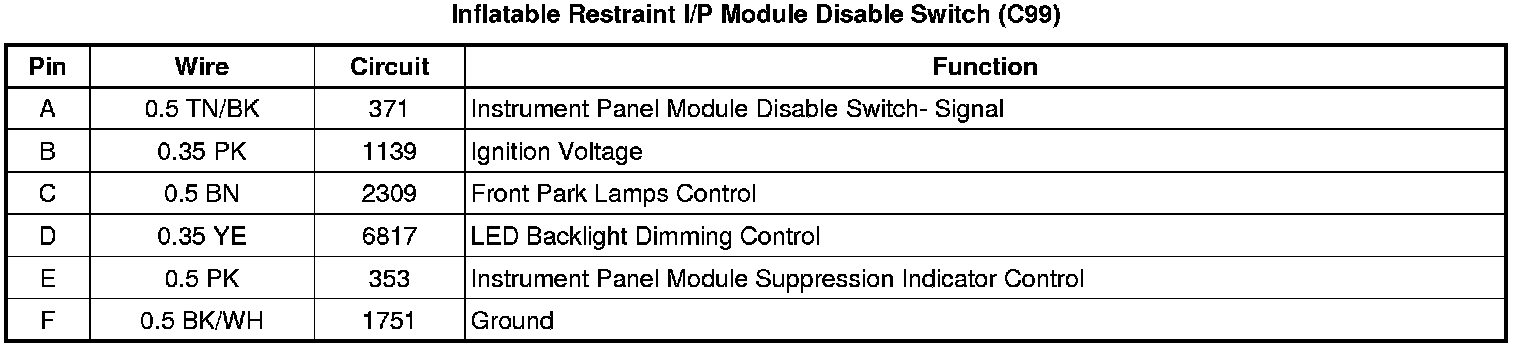

Inflatable Restraint I/P Module Disable Switch (C99)
