Control Module HVAC
Component Connector End Views

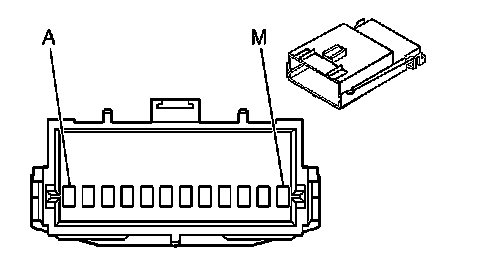

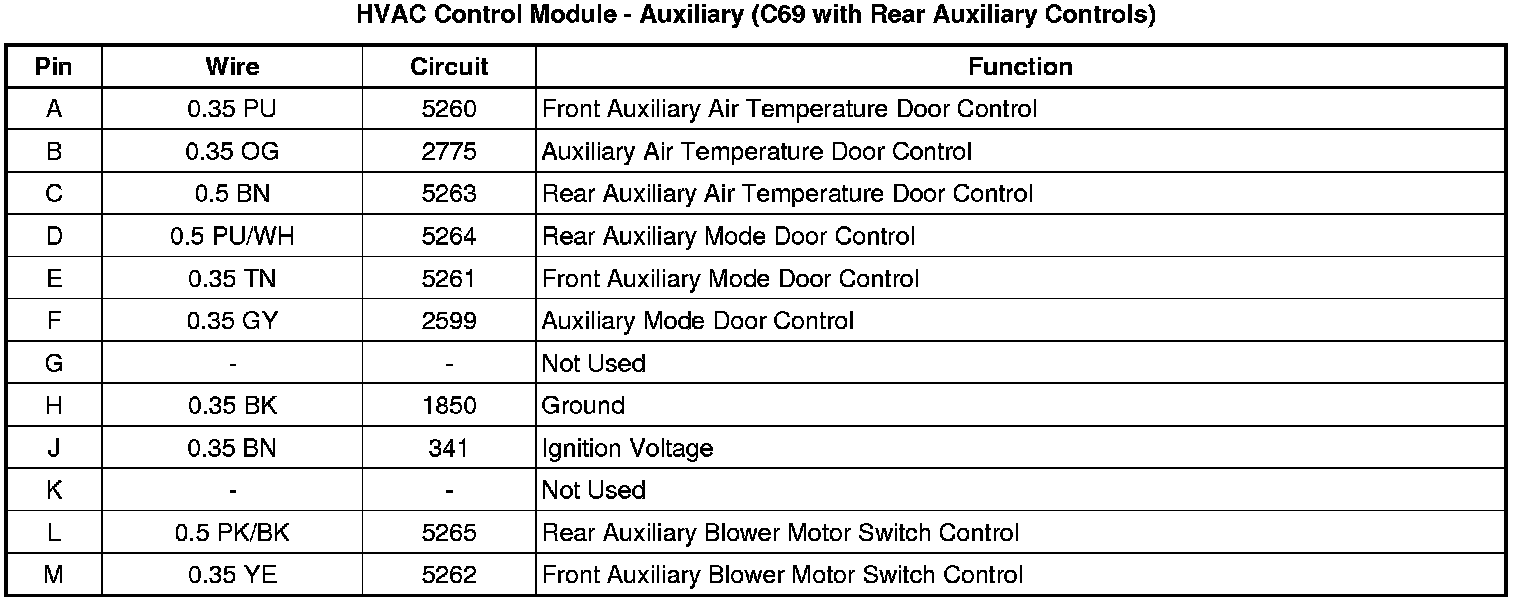

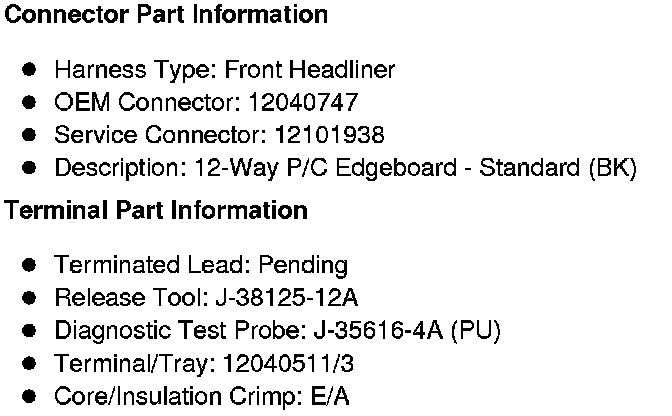

HVAC Control Module - Auxiliary (C69 with Rear Auxiliary Controls)
