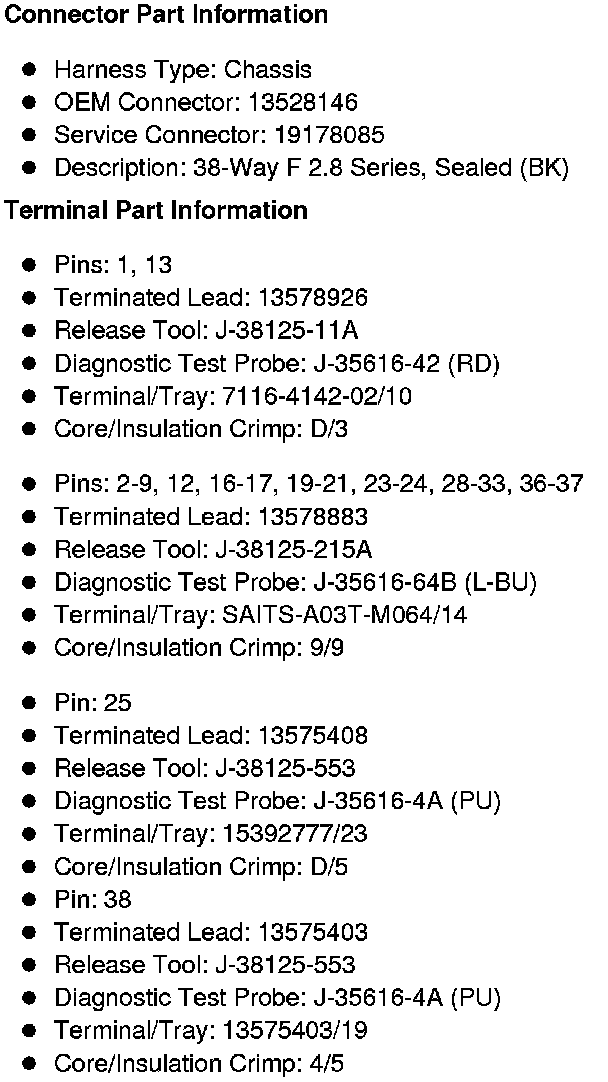

Electronic Brake Control Module (EBCM) (JL4)

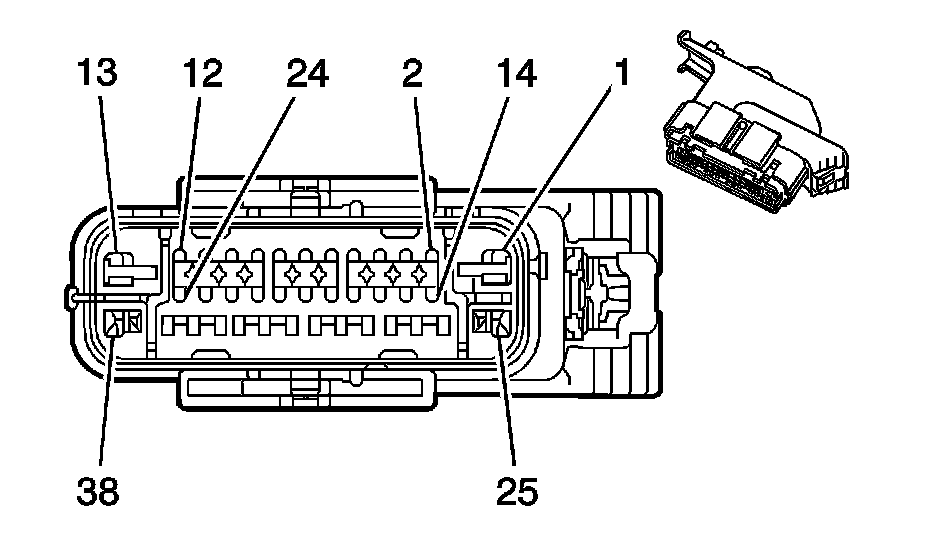

Component Connector End Views

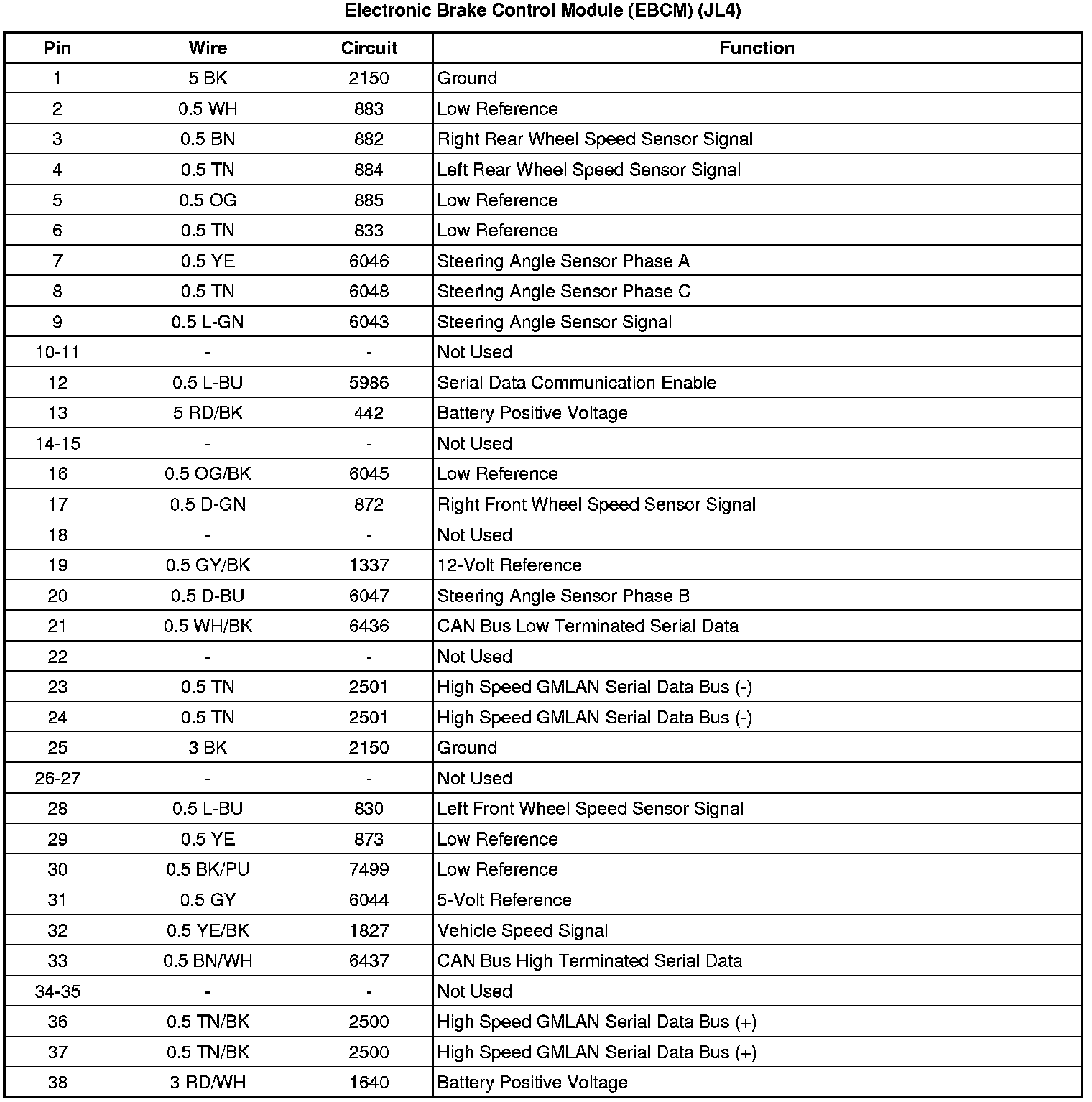

Electronic Brake Control Module
(EBCM) (JL4)
