Fuel Tank Unit




Component Connector End Views

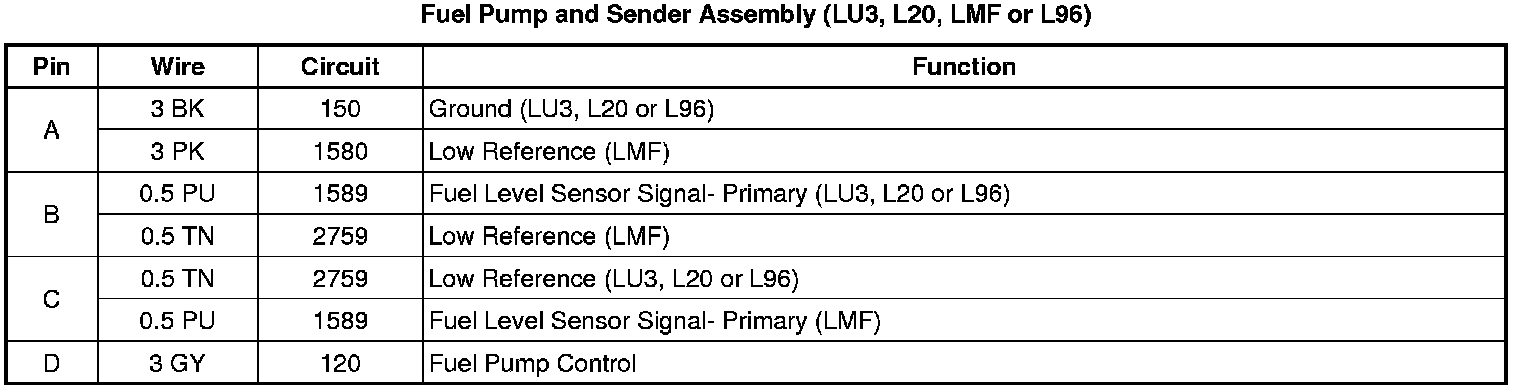

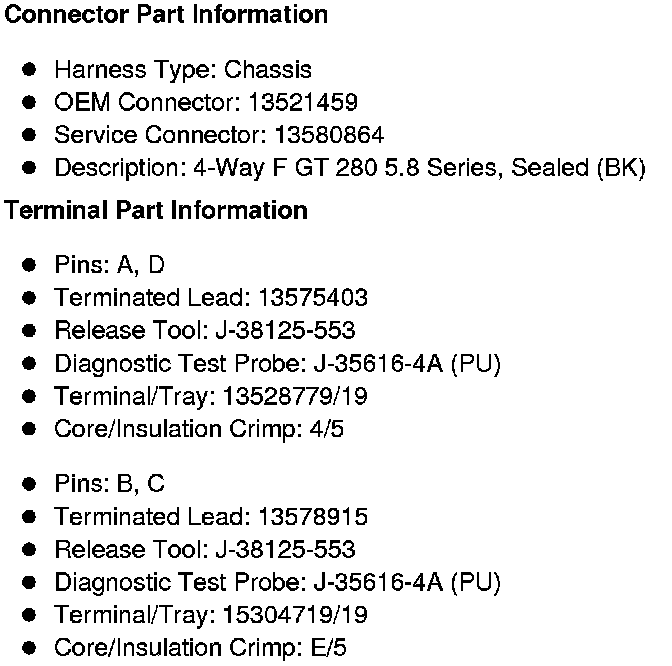

Fuel Pump and Sender Assembly (LU3, L20, LMF or L96)
