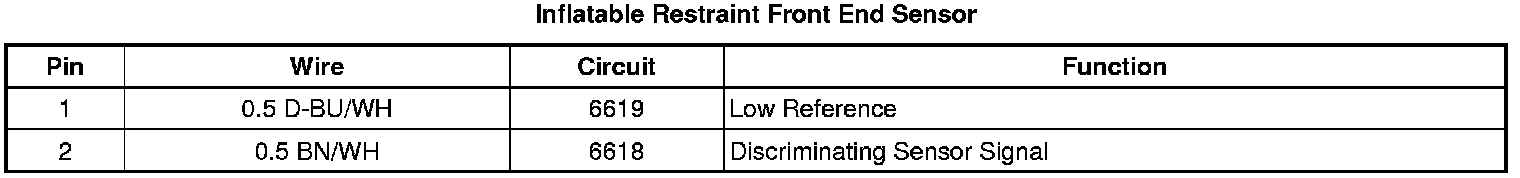

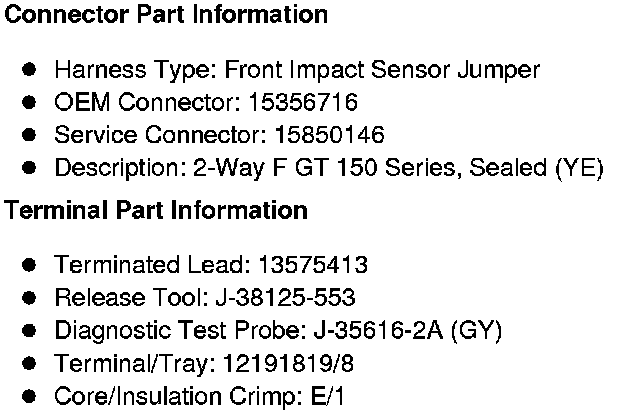

Inflatable Restraint Front End Sensor

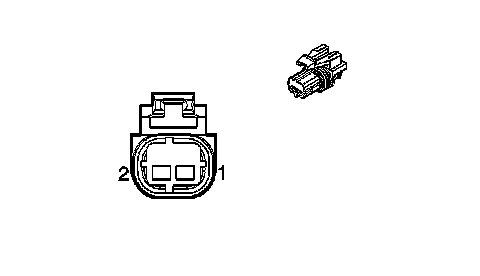

Component Connector End Views
Inflatable Restraint Front End Sensor
