Heater and Air Conditioning Control Replacement

Heater and Air Conditioning Control Replacement

Removal Procedure

1. Remove the I/P cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement Instrument Panel Cluster Trim Plate Bezel Replacement.

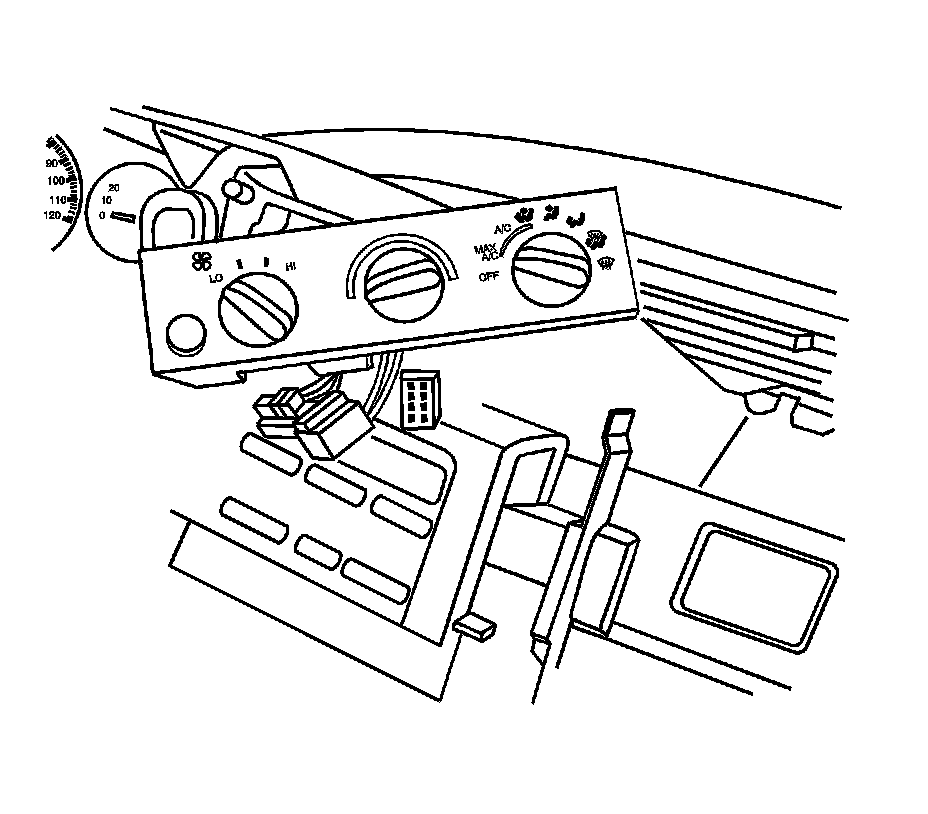

2. Remove the retaining screw from the HVAC control assembly.

3. Pivot the HVAC control assembly to disengage the locking tab on the right side.

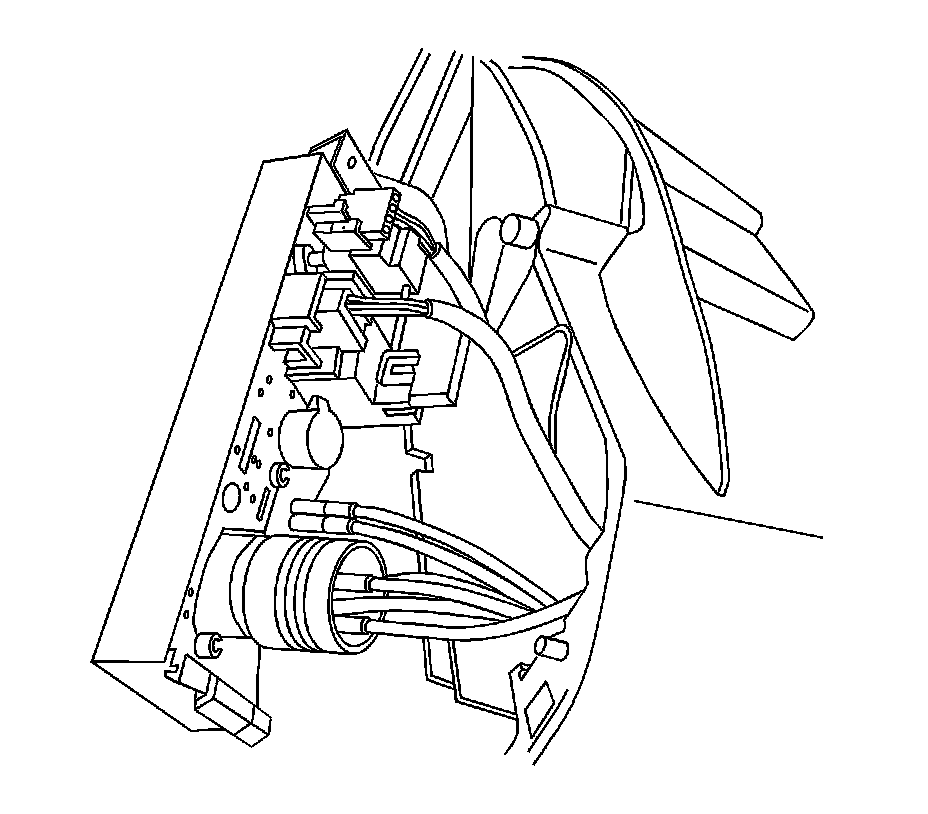

4. Disconnect the electrical connectors.

5. Disconnect the vacuum connector.





6. Remove the HVAC control assembly.

Installation Procedure





1. Connect the vacuum connector.

2. Connect the electrical connectors.

3. Install the HVAC control assembly.

Caution:
Refer to Fastener Caution Fastener Caution.

4. Install the retaining screw to the HVAC control assembly and tighten to 2 Nm (18 lb in).

5. Install the I/P cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement Instrument Panel Cluster Trim Plate Bezel Replacement.
