Fuse Block- Body

Passenger Compartment/Roof Component Views

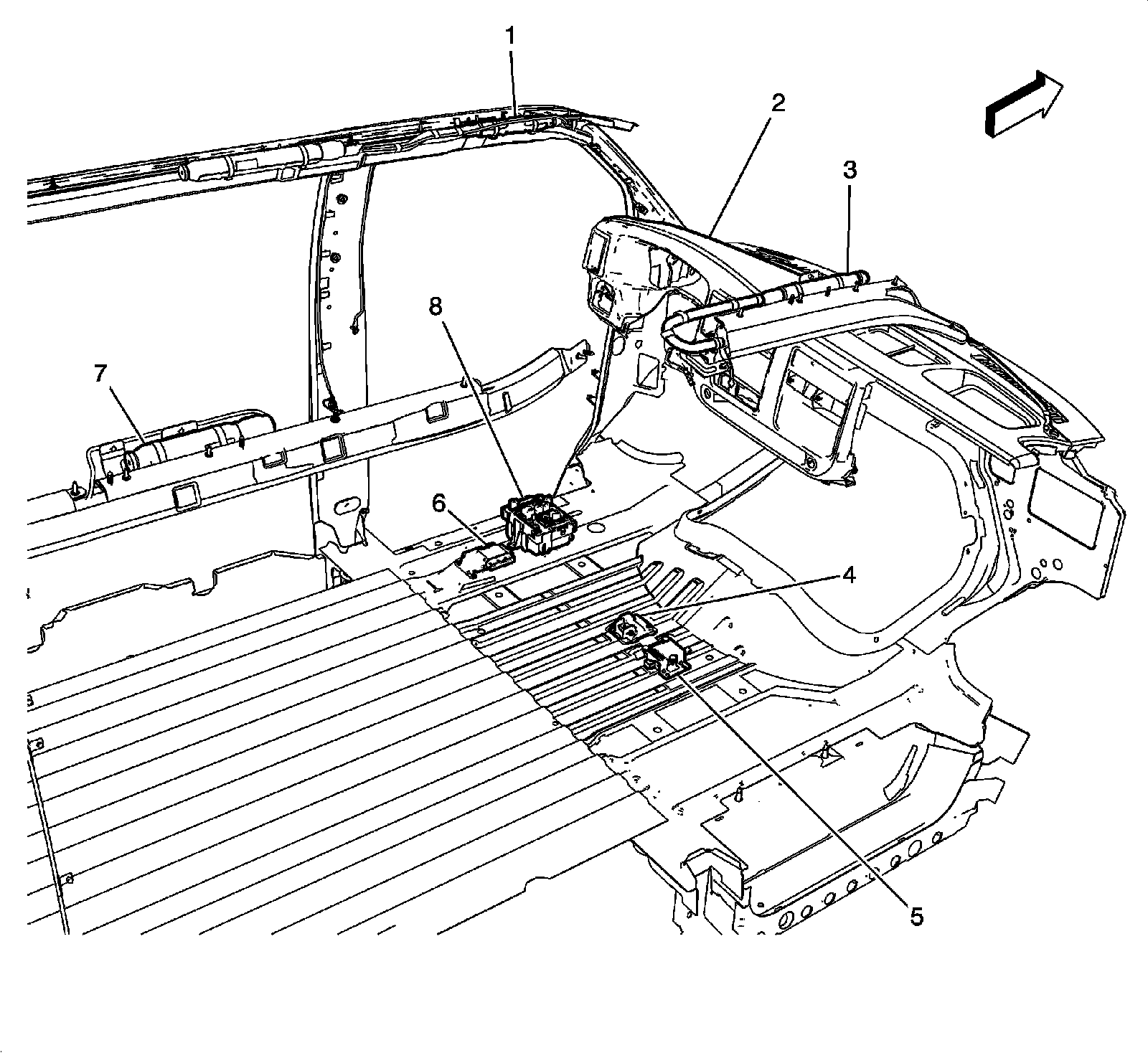

Front Left Side of Passenger Compartment





1 - Inflatable Restraint Roof Rail Module- Left Front (ASF)

2 - Instrument Panel- Upper Pad

3 - Inflatable Restraint Roof Rail Module- Right Front (ASF)

4 - Inflatable Restraint Vehicle Rollover Sensor (ASF)

5 - Yaw and Lateral Accelerometer Sensor (JL4)

6 - Inflatable Restraint Sensing and Diagnostic Module (SDM)

7 - Inflatable Restraint Roof Rail Module- Right Rear (ASF with YA2)

8 - Fuse Block- Body
