Oil Pressure Sensor: Locations

Powertrain Component Views

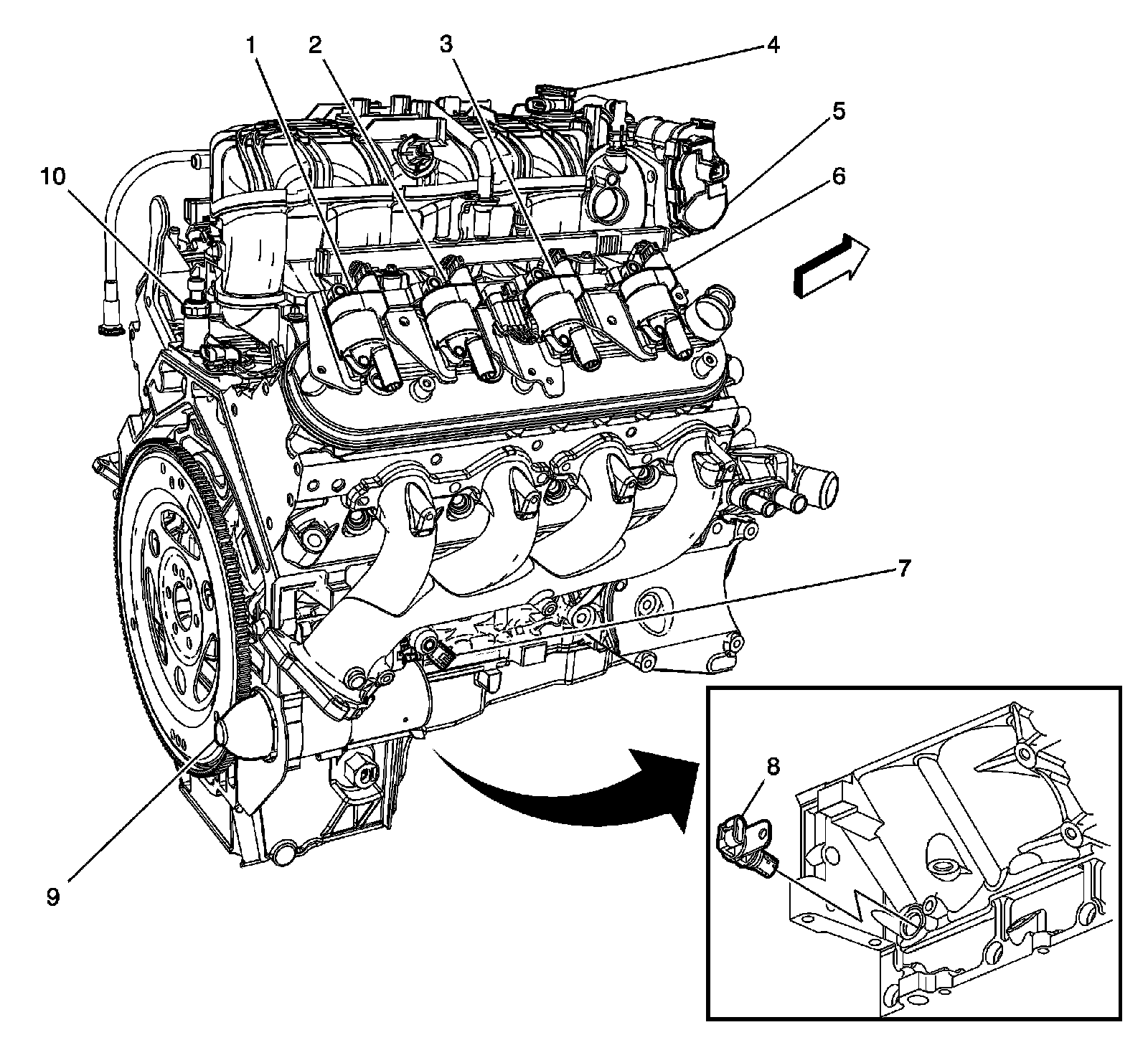

Right Side of the Engine Components (LC8, LMF, L20, or L96)





1 - Ignition Coil 8

2 - Ignition Coil 6

3 - Ignition Coil 4

4 - Manifold Absolute Pressure (MAP) Sensor

5 - Throttle Body

6 - Ignition Coil 2

7 - Knock Sensor (KS) 2

8 - Crankshaft Position (CKP) Sensor

9 - Starter

10 - Engine Oil Pressure (EOP) Sensor
