Thread Repair Specifications




Thread Repair Specifications

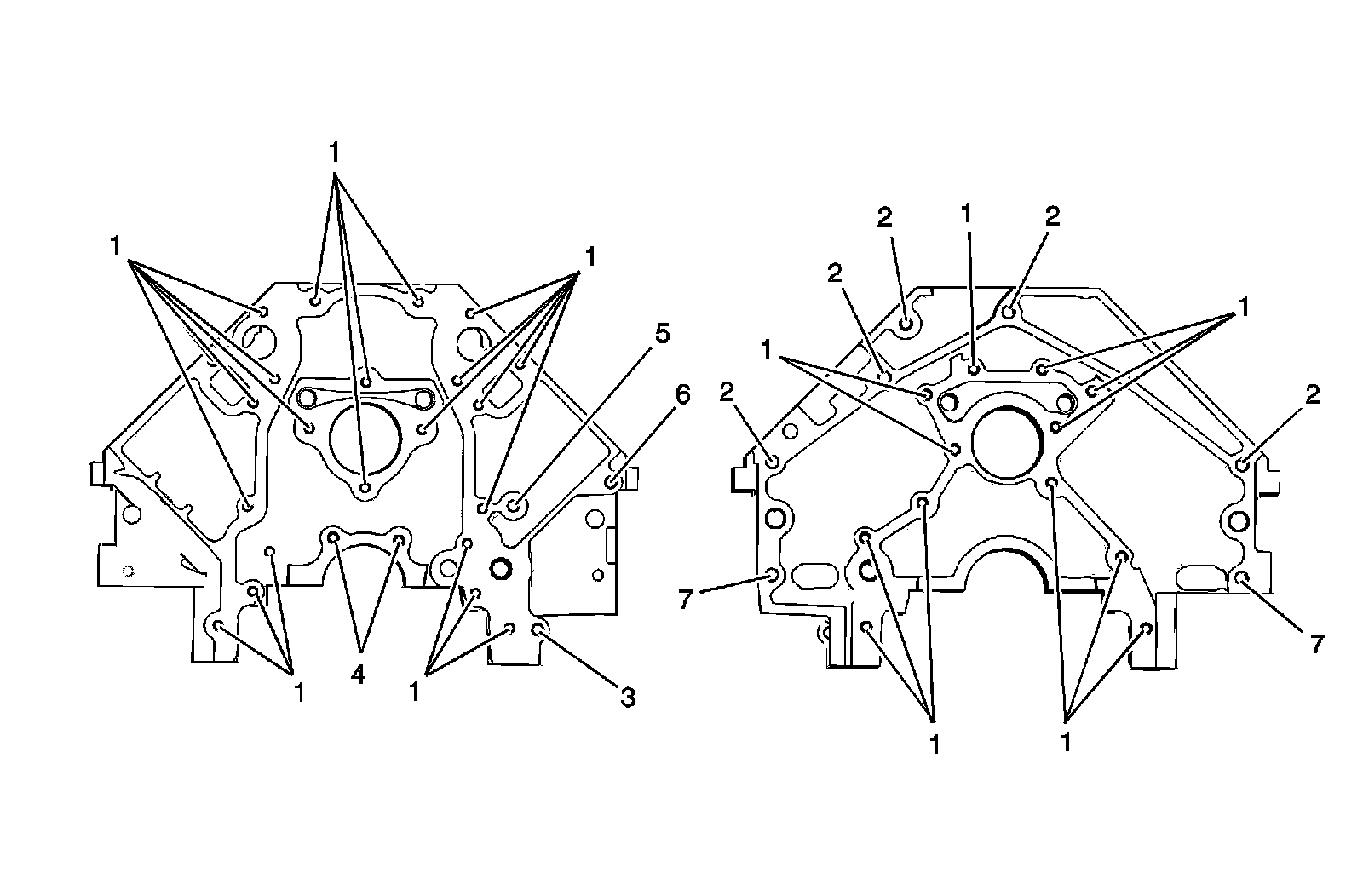

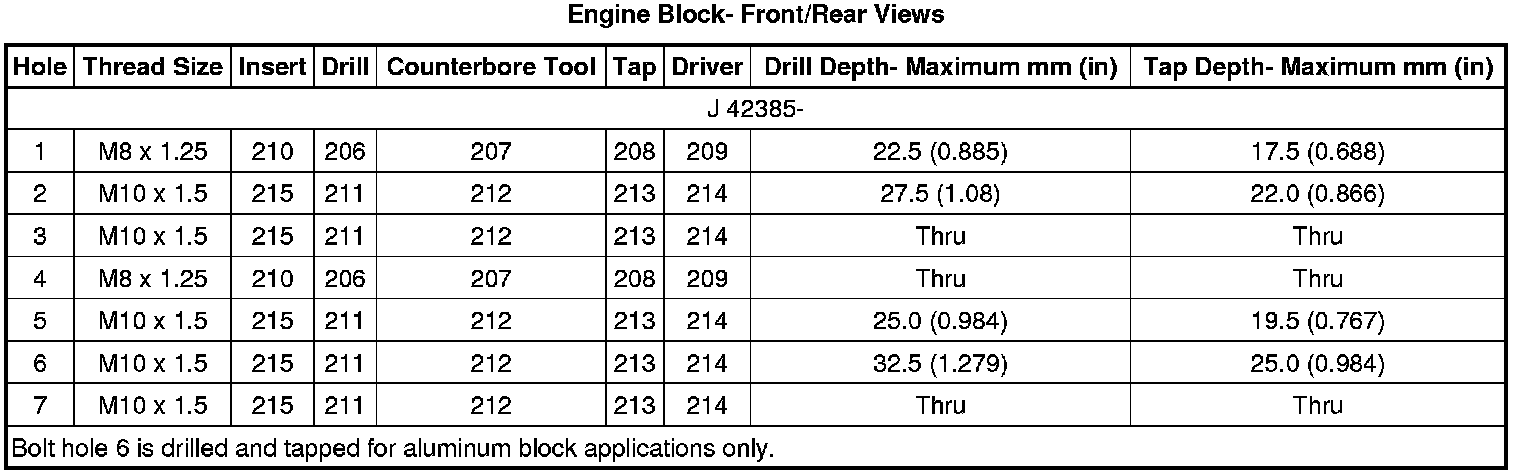

Engine Block- Front/Rear Views

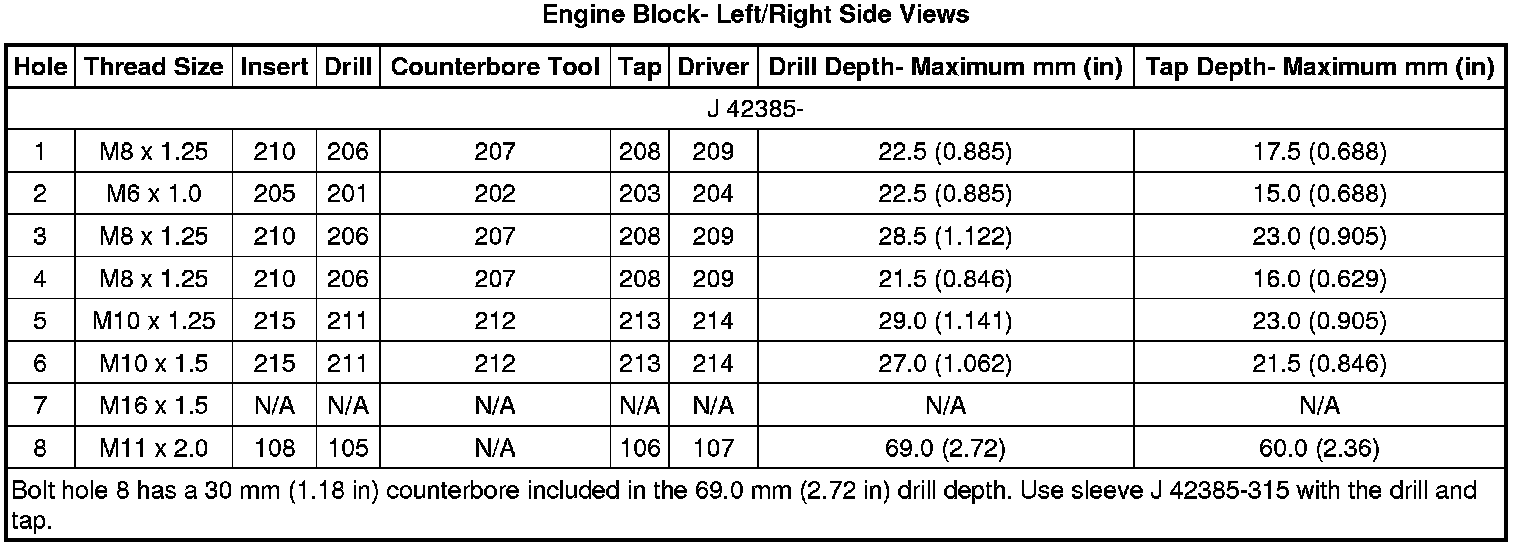

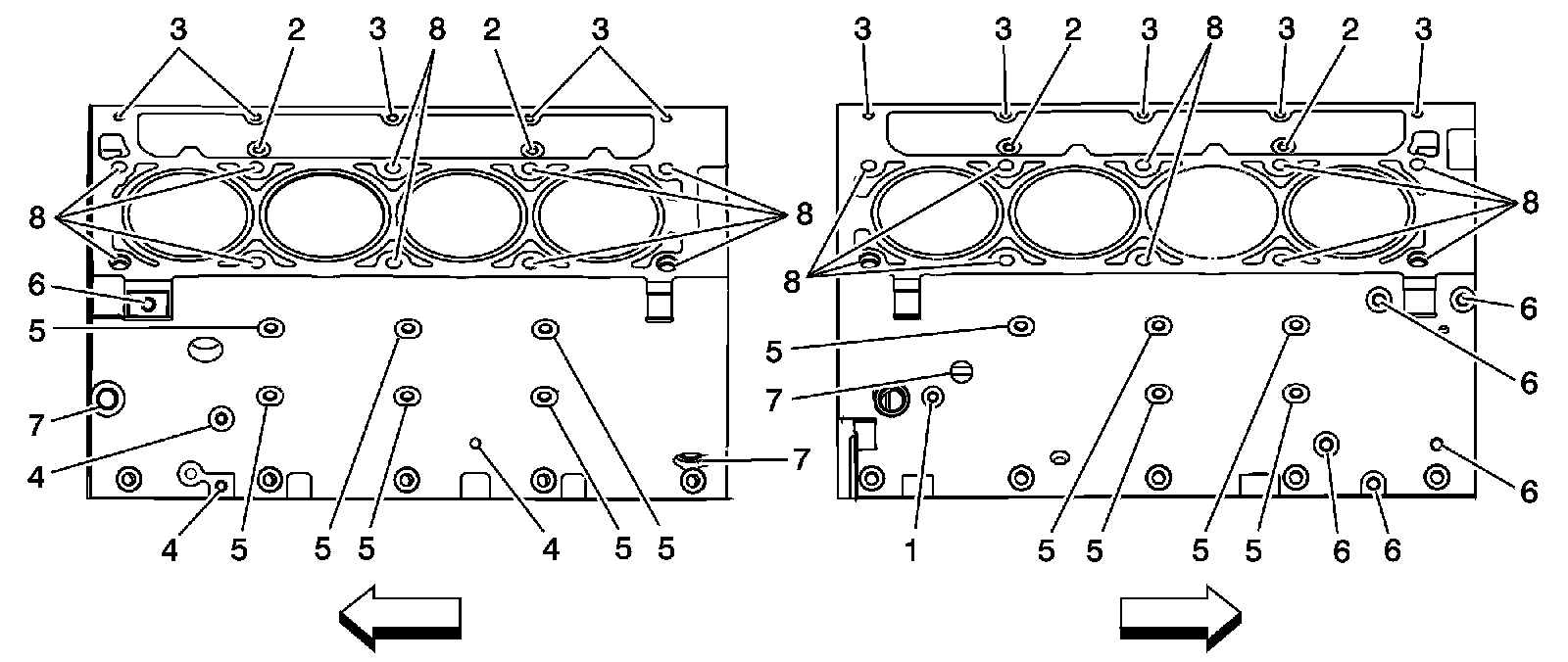

Engine Block- Left/Right Side Views

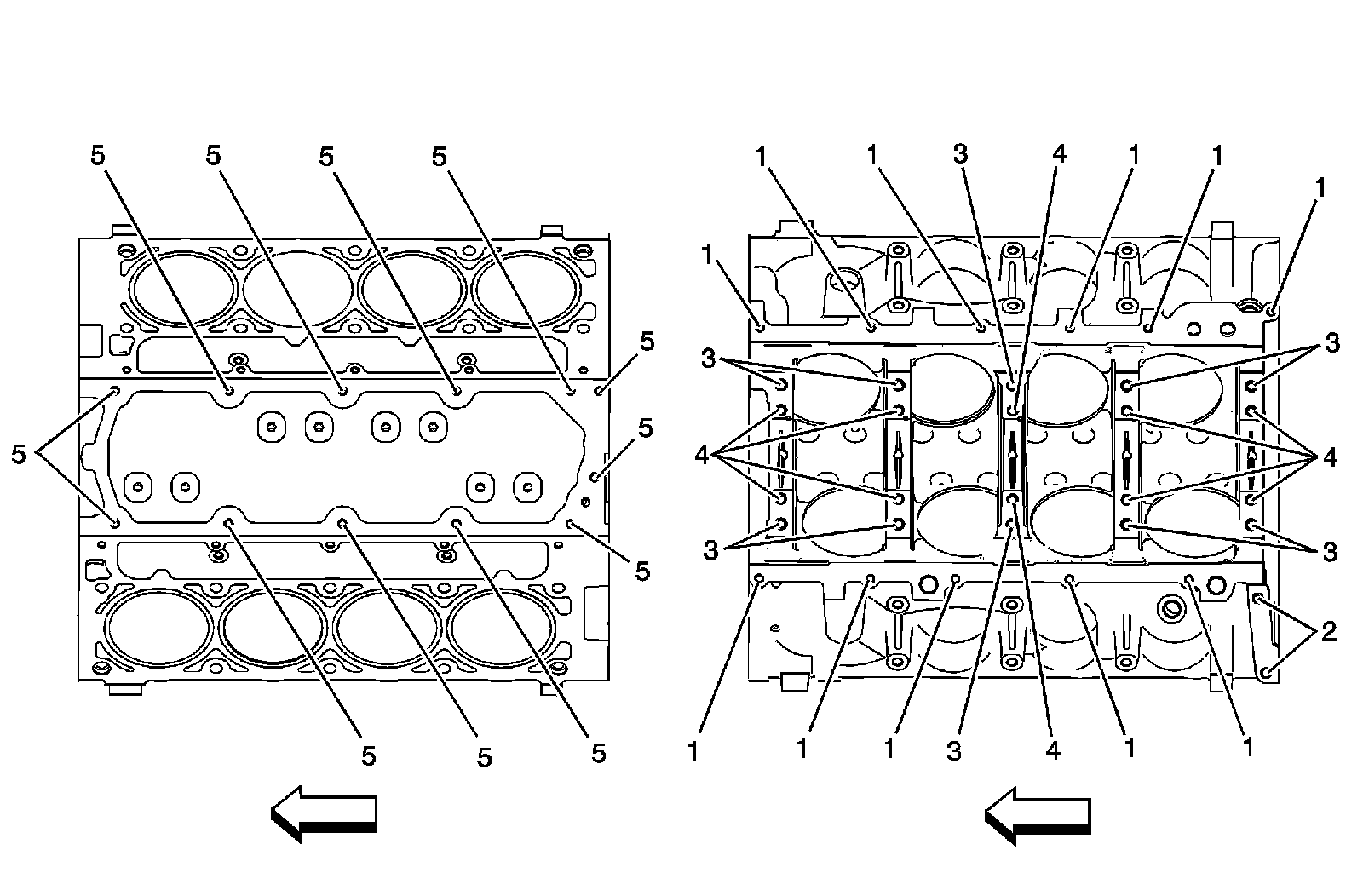

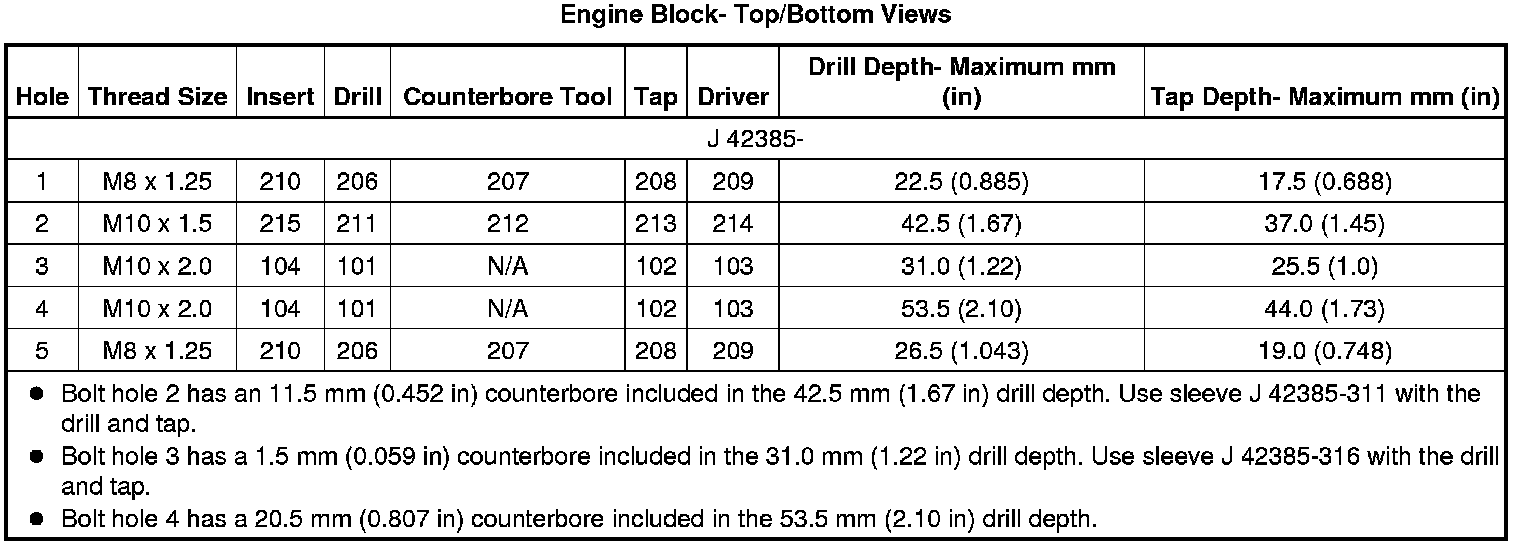

Engine Block- Top/Bottom Views

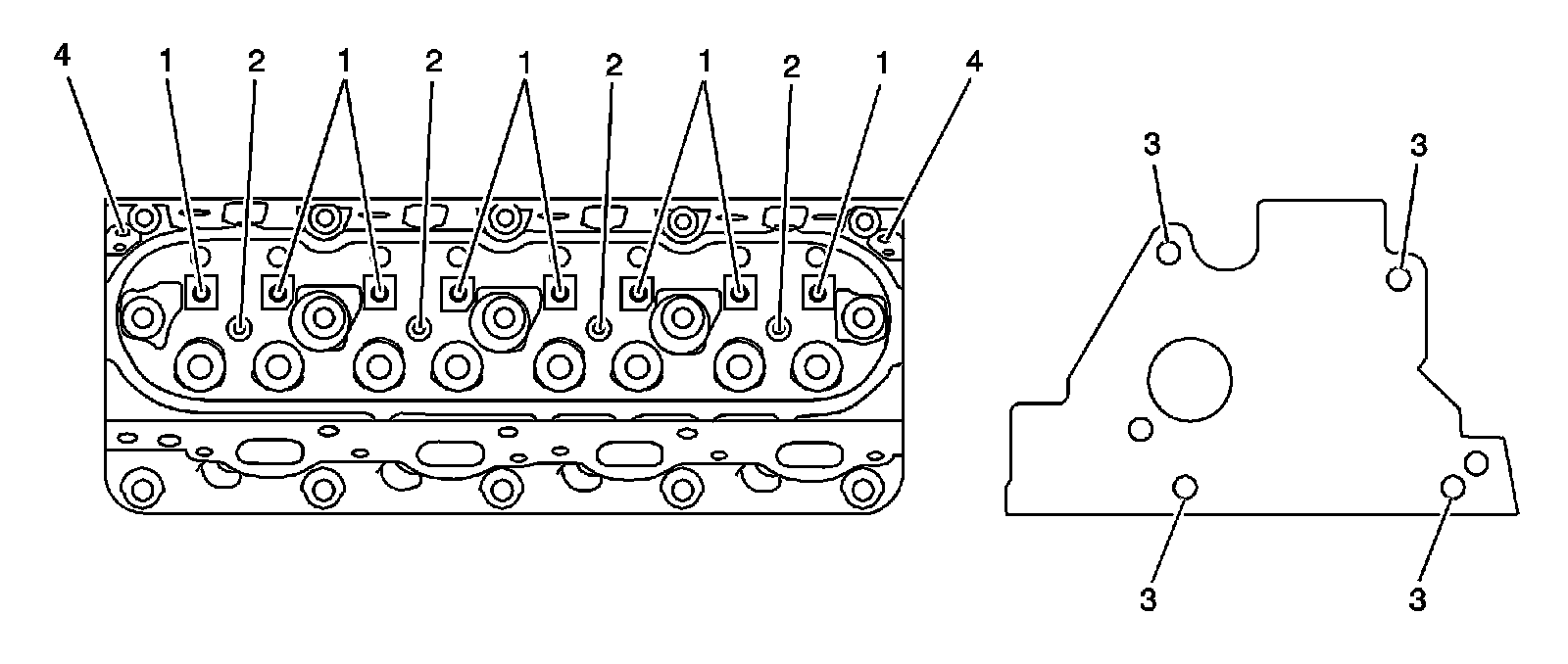

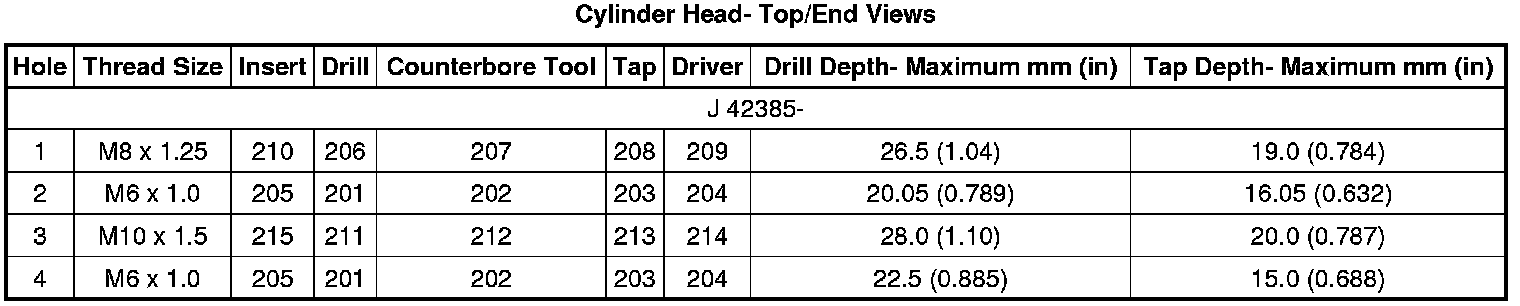

Cylinder Head- Top/End Views

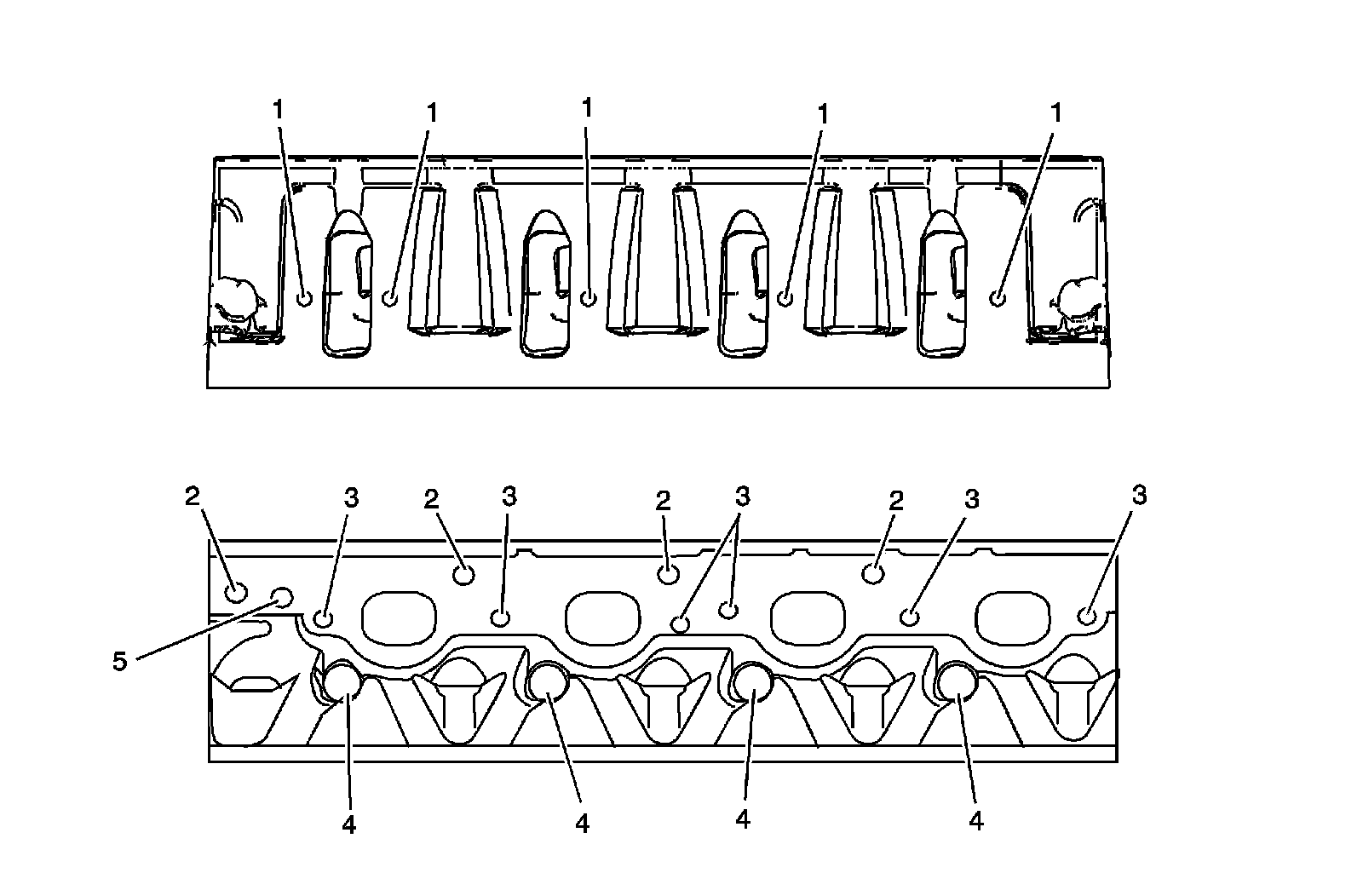

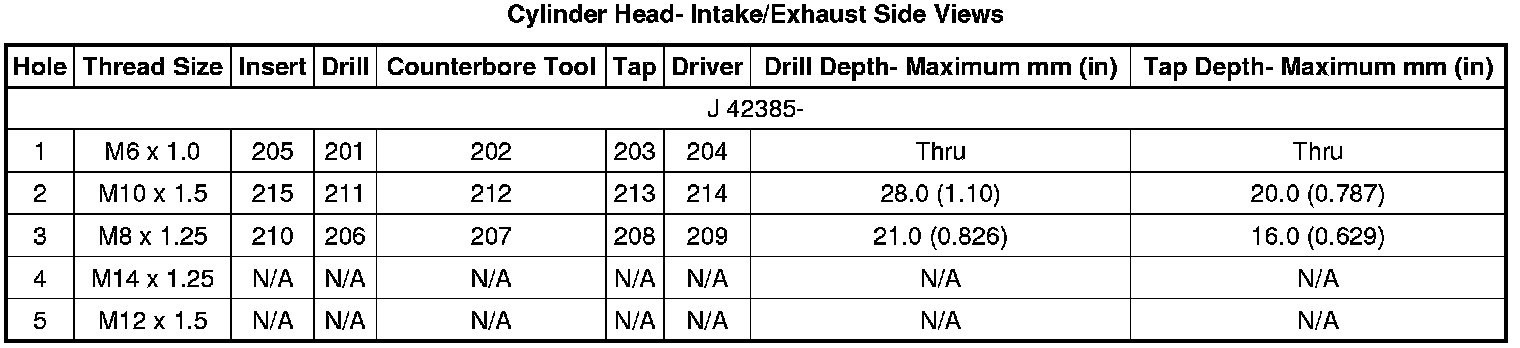

Cylinder Head- Intake/Exhaust Side Views
