Control Module: Locations

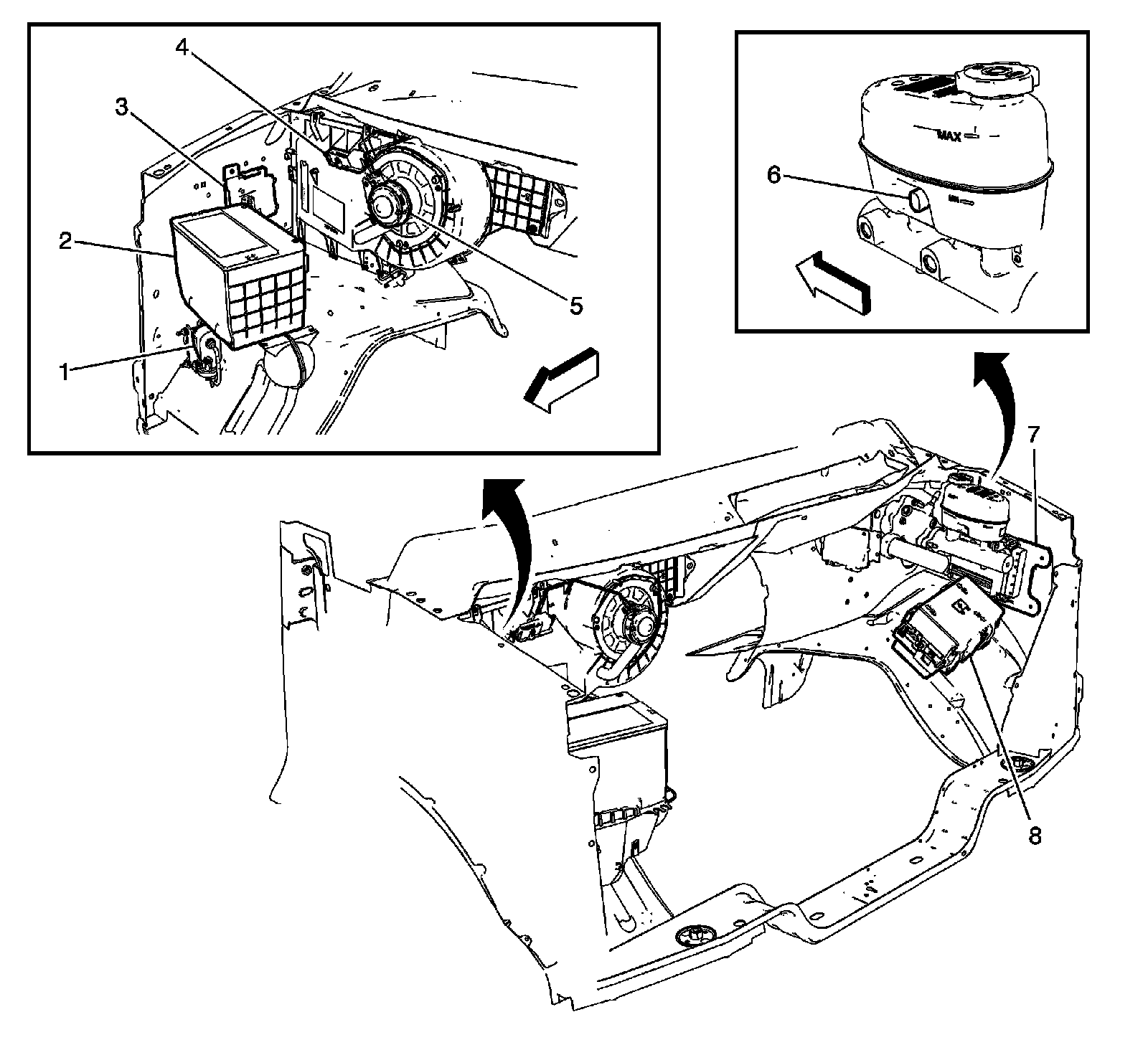

Front of Vehicle/Engine Compartment Component Views

Engine Compartment





1 - Vacuum Pump (LMM or LGH)

2 - Battery

3 - Transmission Control Module (TCM)

4 - Blower Motor Resistor

5 - Blower Motor

6 - Brake Fluid Level Switch (Heavy Duty)

7 - Engine Control Module (ECM)

8 - Fuse Block- Underhood
