Window Switch- Driver (A31)

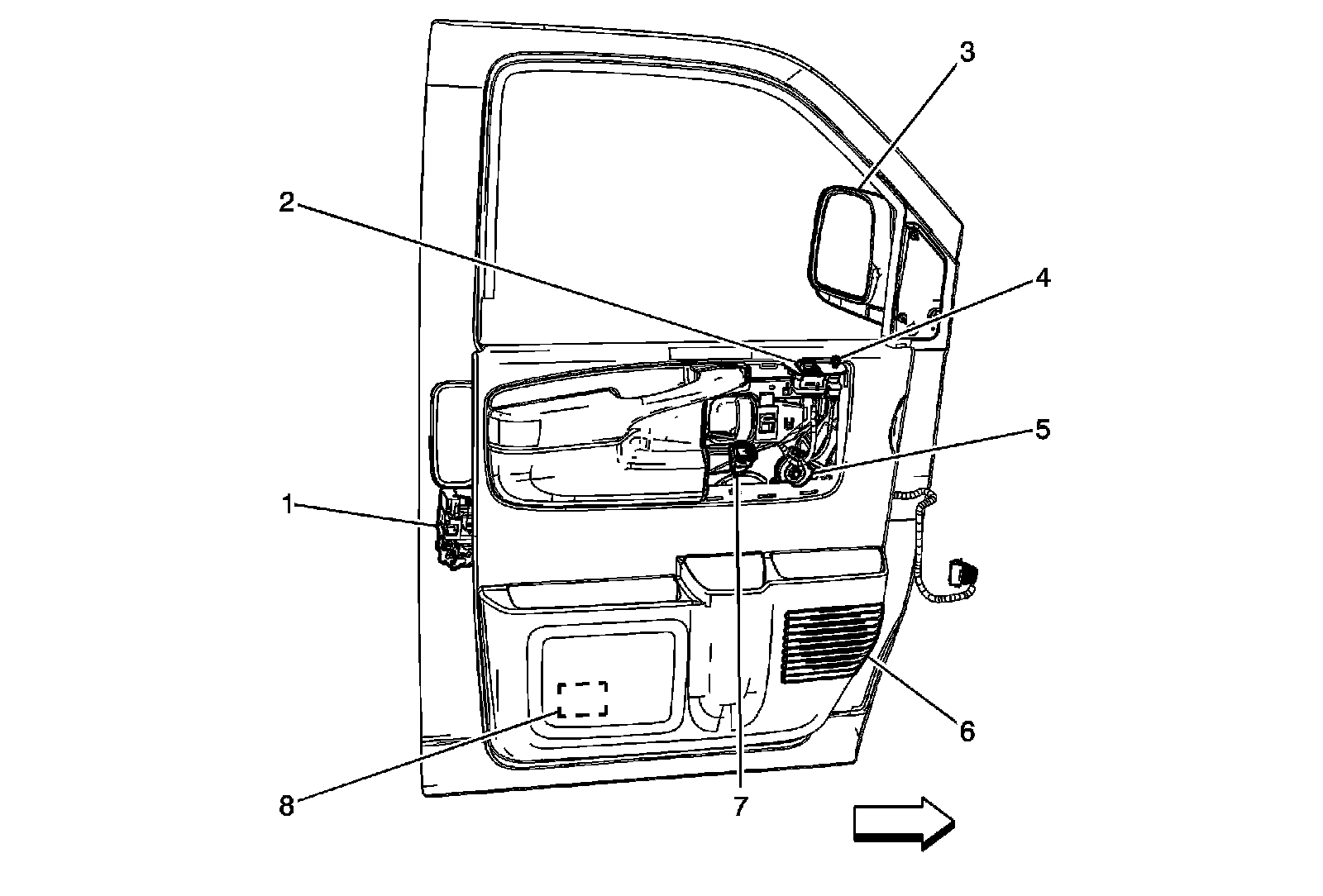

Door Component Views

Driver Door





1 - Door Latch- Driver

2 - Window Switch- Driver (A31)

3 - Outside Rearview Mirror- Driver (DE5 or DE7)

4 - Outside Rearview Mirror Switch (DE5 or DE7)

5 - Window Motor- Driver (A31)

6 - Speaker- Left Front

7 - Door Lock Switch- Driver (AU3)

8 - Inflatable Restraint Side Impact Sensor (SIS)- Left Front (ASF)
