Power Window Switch: Service and Repair

Front Side Door Window Switch Replacement

Removal Procedure





1. Remove the front door trim plate. Refer to Front Door Trim Plate Replacement Front Door Trim Plate Replacement.

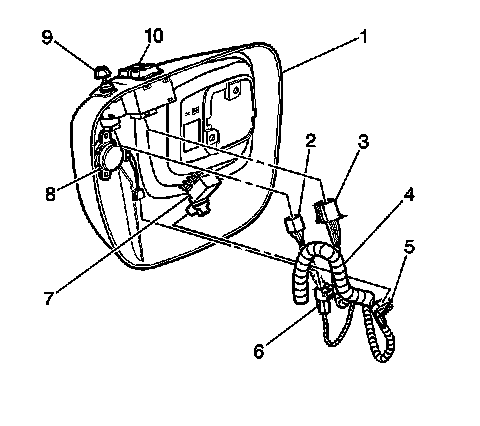

2. Remove the electrical connector (3) from the power window switch.

3. Release the clip from the front door trim plate (1) in order to remove the escutcheon from the trim plate (1).

4. Release the tabs on the power window switch (10) in order to remove the power window switch (10) from the trim plate.

Installation Procedure





1. Install the power window switch (10) to the front door trim plate (1).

2. Push the power window switch in order to engage the retaining clip.

3. Install the electrical connector (3) to the power window switch.

4. Install the front door trim plate (1). Refer to Front Door Trim Plate Replacement Front Door Trim Plate Replacement.
