Front of the Engine Components

Powertrain Component Views

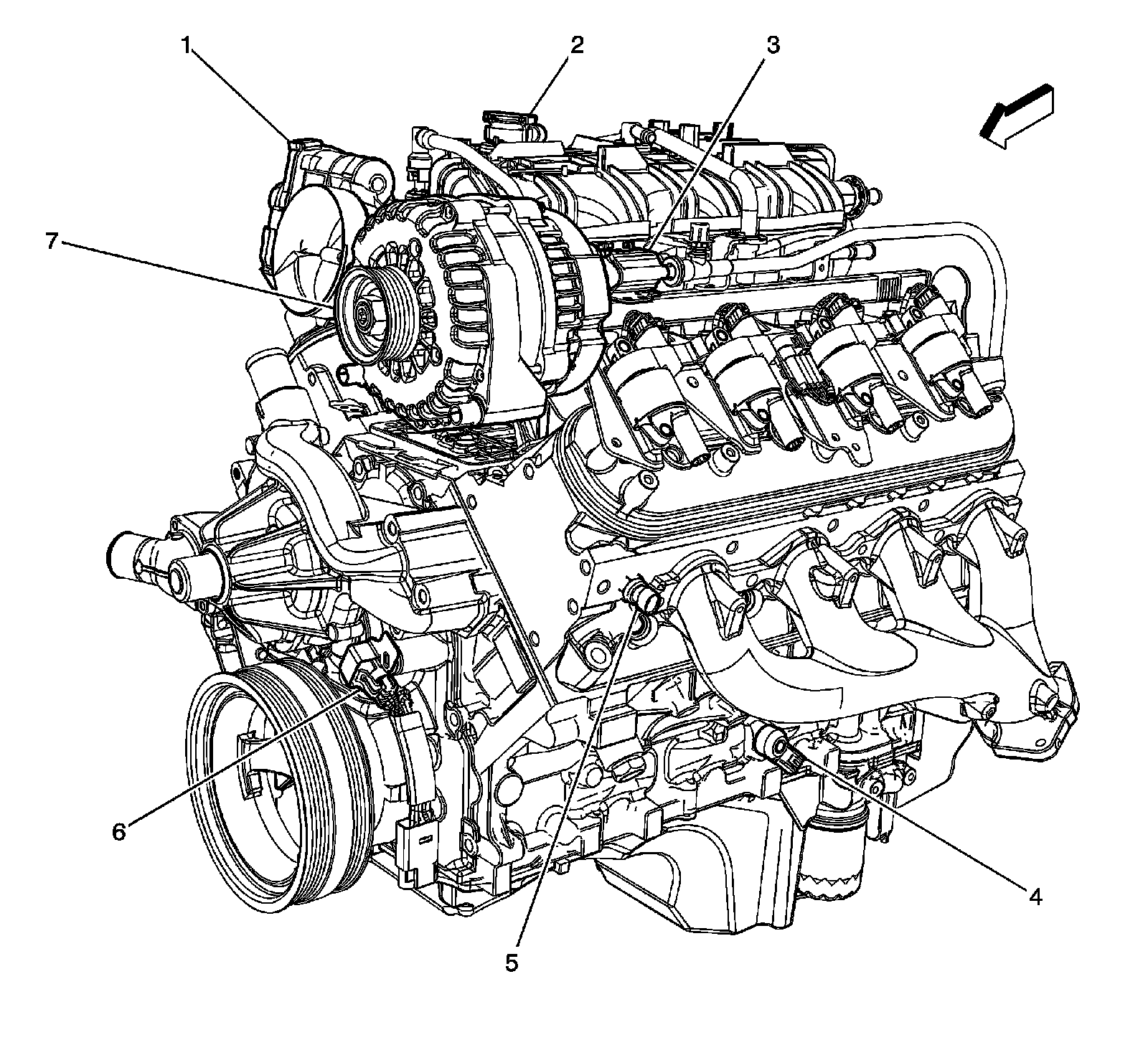

Front of the Engine Components ( LC8, LMF, L20, or L96)





1 - Throttle Body

2 - Manifold Absolute Pressure (MAP) Sensor

3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve

4 - Knock Sensor (KS) 1

5 - Engine Coolant Temperature (ECT) Sensor

6 - Camshaft Position (CMP) Sensor

7 - Generator
