Flexible Fuel Sensor Replacement

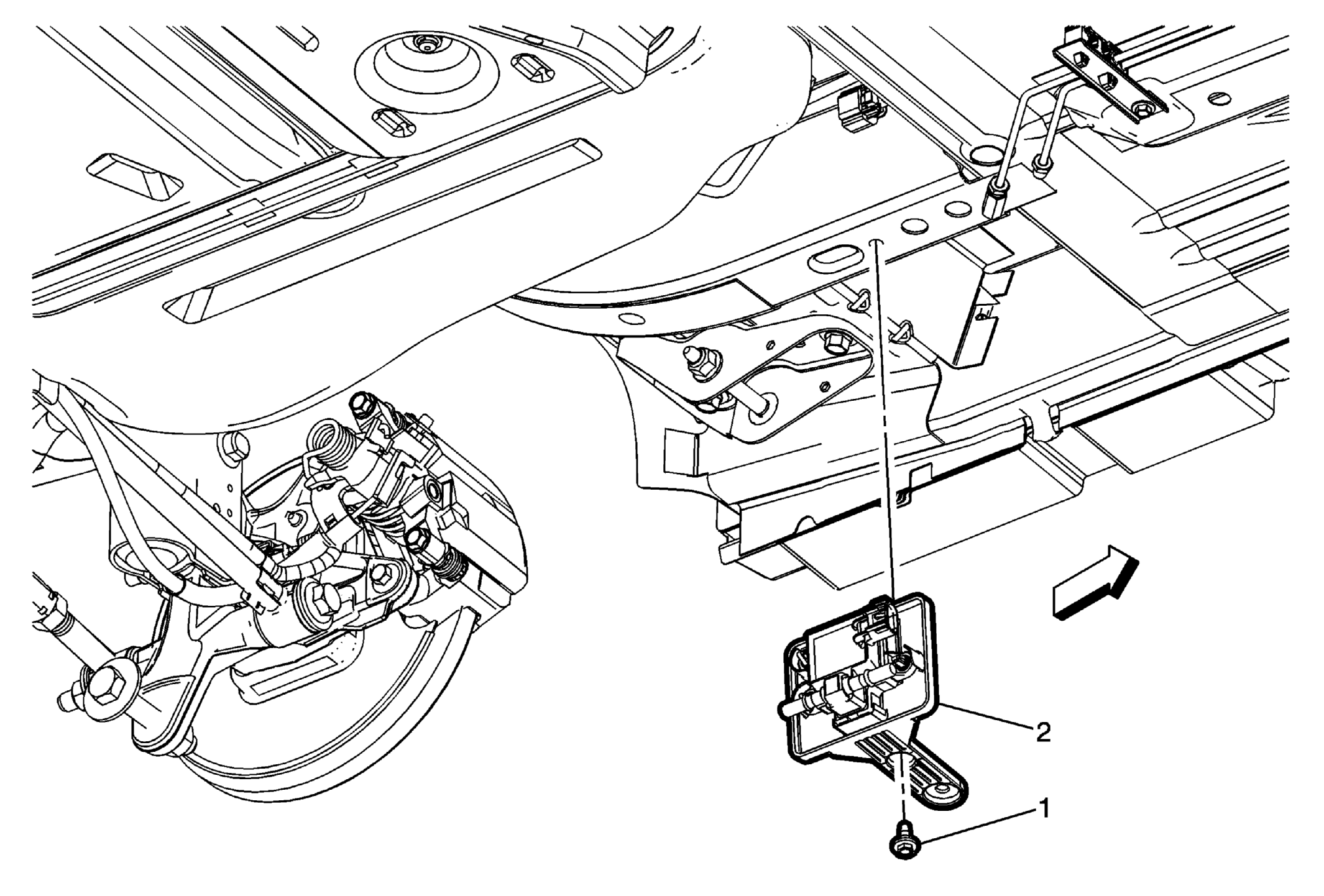

Fig 1: Flexible Fuel Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Relieve the fuel system pressure. Refer to Fuel Pressure Relief (Without CH 48027) , Fuel Pressure Relief (CH 48027) Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Flex Fuel Sensor Bolt. CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Flex Fuel Sensor. Procedure Disconnect the fuel line connectors. Refer to Plastic Collar Quick Connect Fitting Service Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure

Flex Fuel Sensor Bolt.

CAUTION:

Tighten
9 N.m (80 lb in)

Flex Fuel Sensor.

Procedure

Disconnect the fuel line connectors. Refer to Plastic Collar Quick Connect Fitting Service
Disconnect the electrical connector.
