Keyless Entry

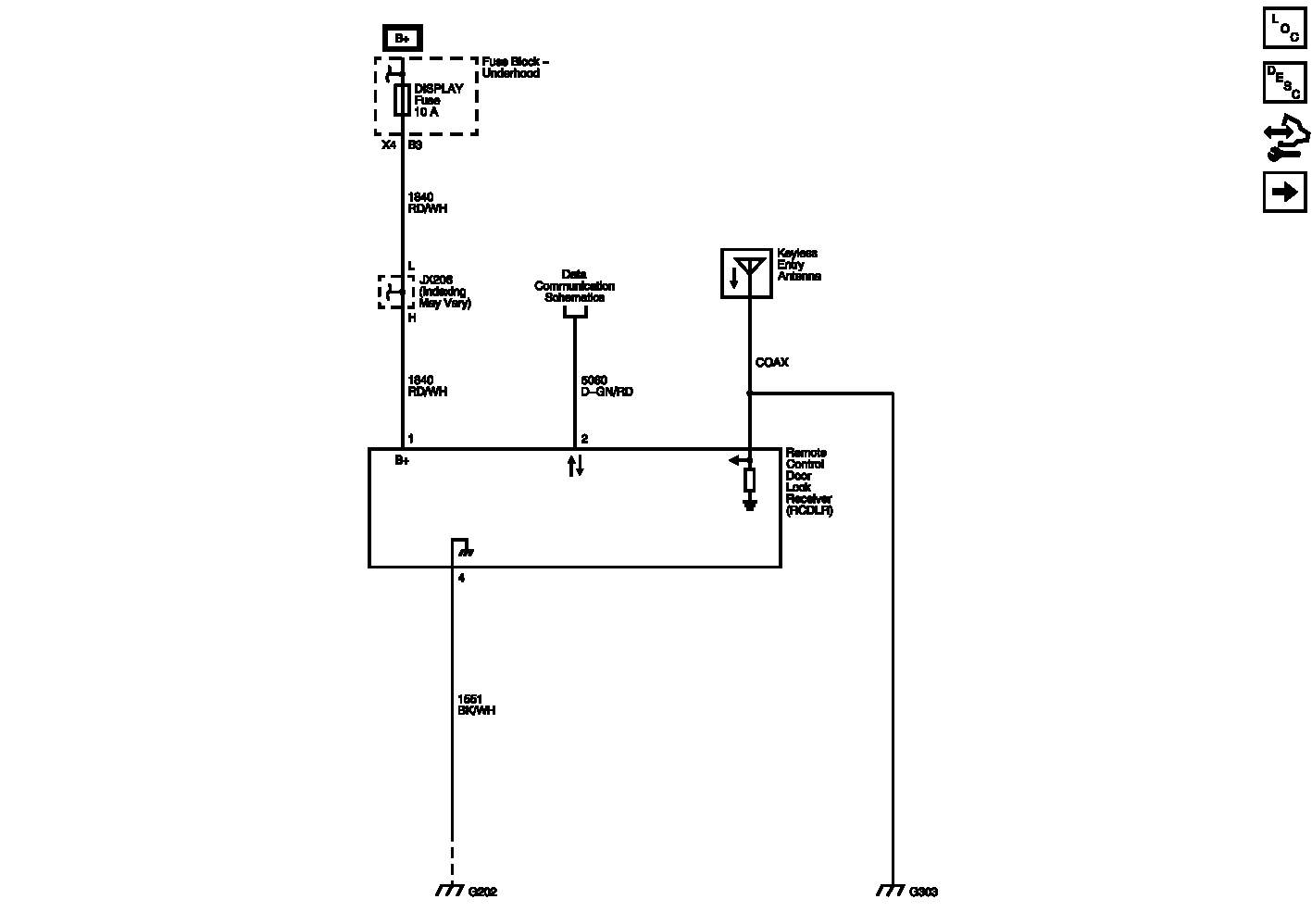

Fig 1: Keyless Entry System Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
