Air Cleaner Assembly Replacement

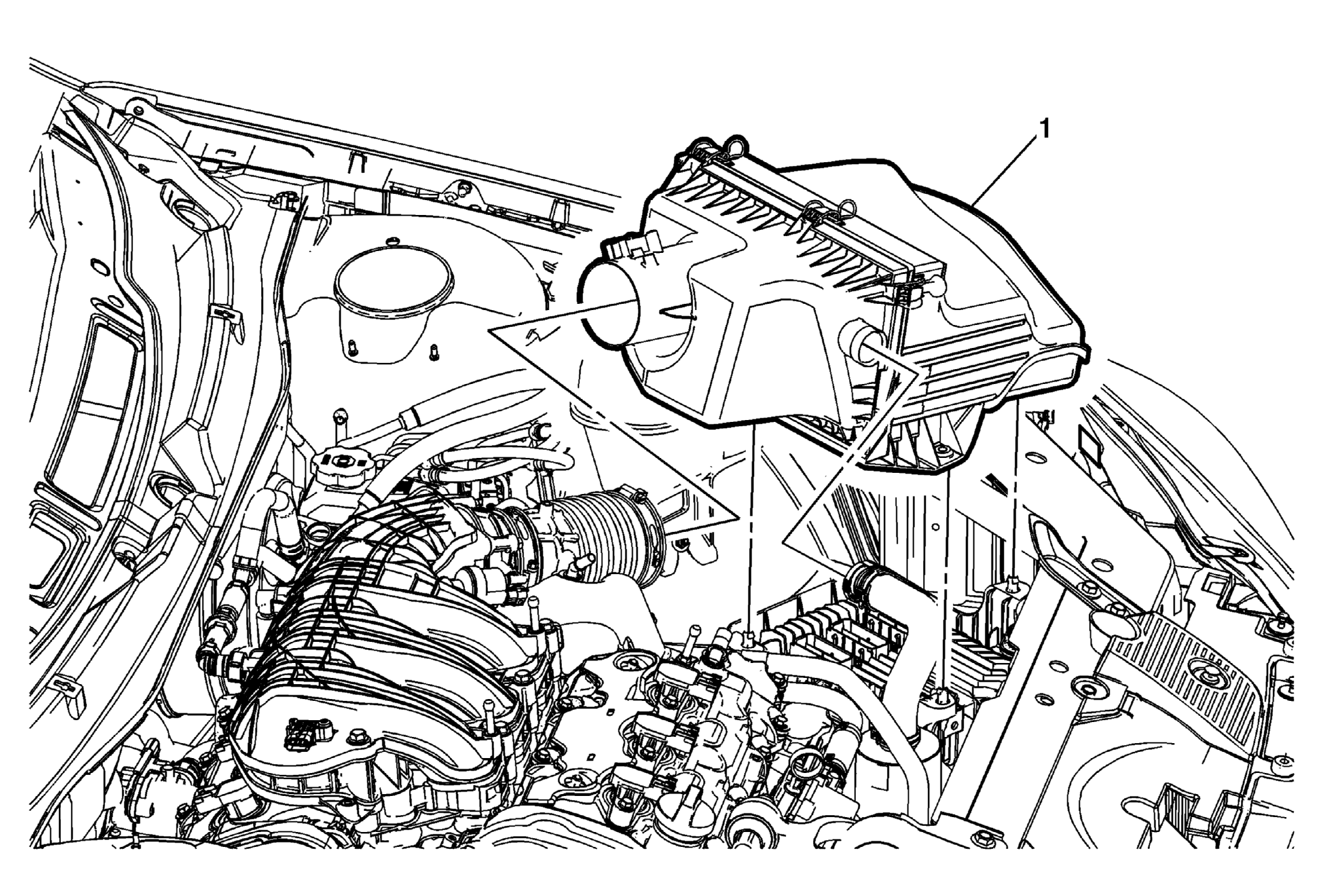

Fig 1: Air Cleaner Assembly
GM2614914Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Assembly Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement
  2. Remove the secondary air injection pump hose. Refer to Secondary Air Injection Pump Hose Replacement
  3. Disconnect the MAF sensor electrical connector.
1 Air Cleaner Assembly.
