Air Cleaner Element Replacement

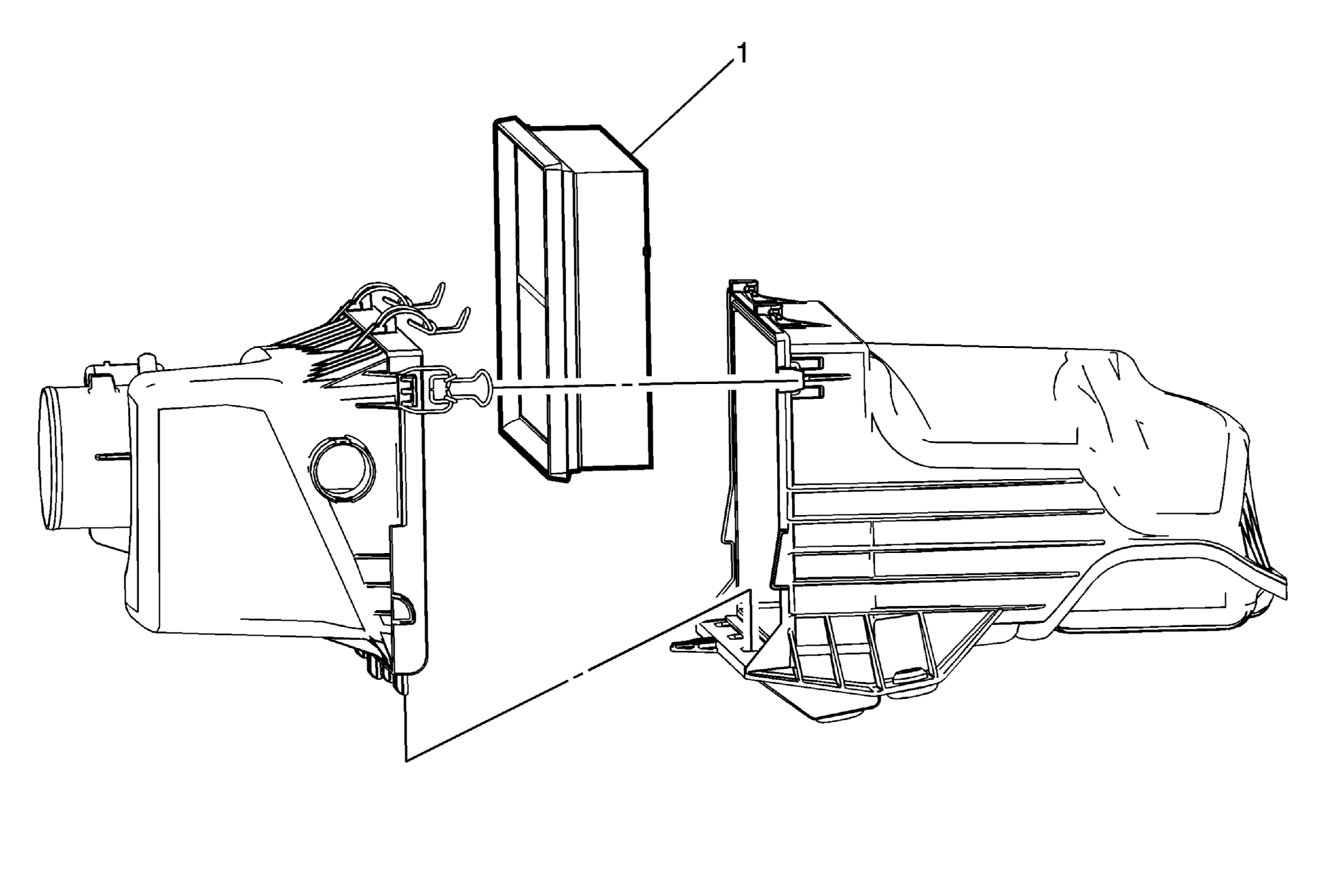

Fig 1: Air Cleaner Element

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement Remove the secondary air injection pump hose. Refer to Secondary Air Injection Pump Hose Replacement Disconnect the MAF sensor electrical connector.
1	Air Cleaner Element Procedure Release the spring clamps on top and side of the air cleaner housing.

Callout

Component Name

Preliminary Procedure

Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement
Remove the secondary air injection pump hose. Refer to Secondary Air Injection Pump Hose Replacement
Disconnect the MAF sensor electrical connector.

Air Cleaner Element
Procedure
Release the spring clamps on top and side of the air cleaner housing.
