Fuel Feed Rear Pipe Replacement

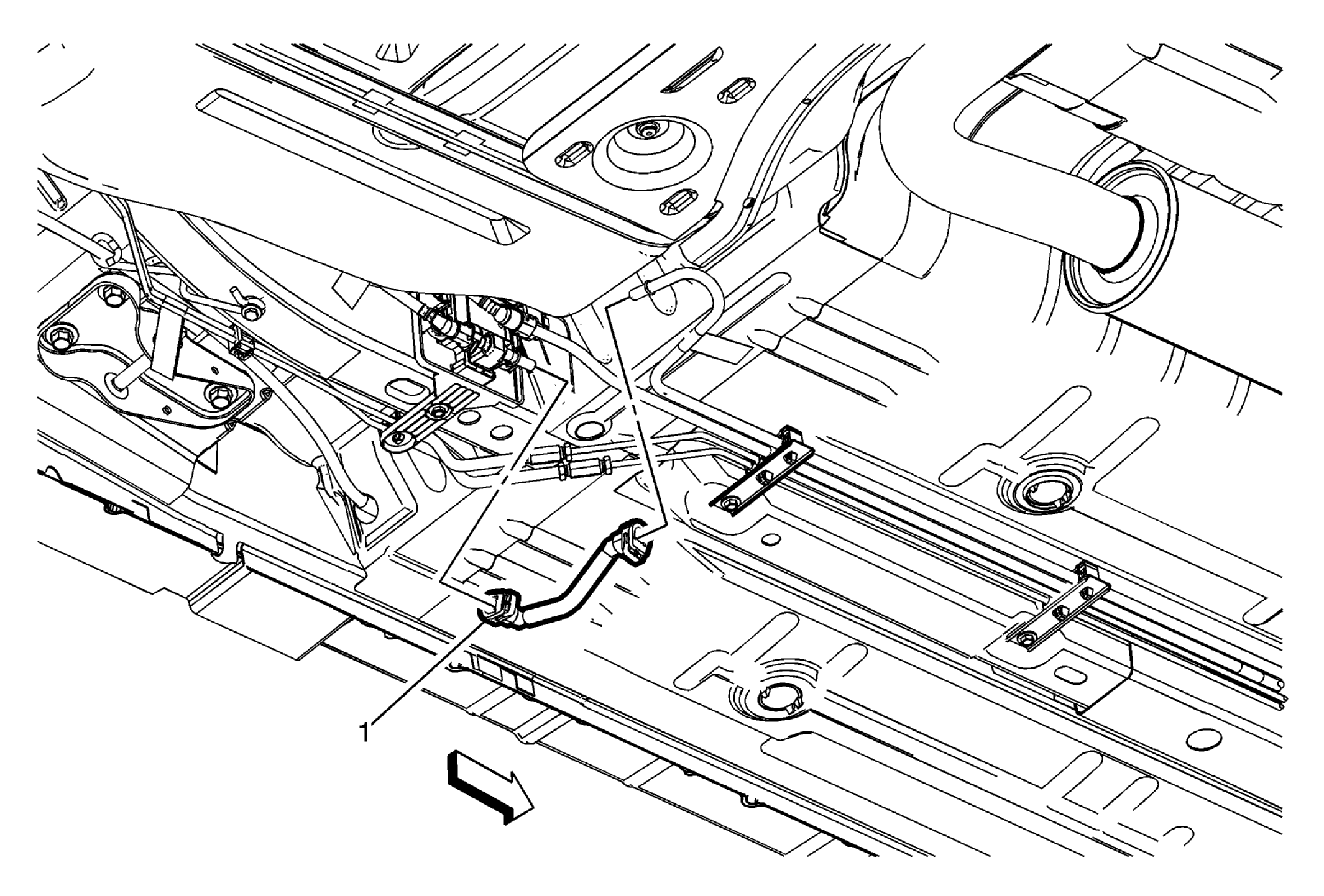

Fig 1: Fuel Feed Rear Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Relieve the fuel system pressure. Refer to Fuel Pressure Relief (Without CH 48027) , Fuel Pressure Relief (CH 48027) . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Fuel Feed Rear Pipe. Procedure Disconnect the fuel feed rear pipe quick connect fittings. Refer to Plastic Collar Quick Connect Fitting Service

Callout

Component Name

Preliminary Procedures

Fuel Feed Rear Pipe.
Procedure
Disconnect the fuel feed rear pipe quick connect fittings. Refer to Plastic Collar Quick Connect Fitting Service
