Fuel Pipe Shield Replacement

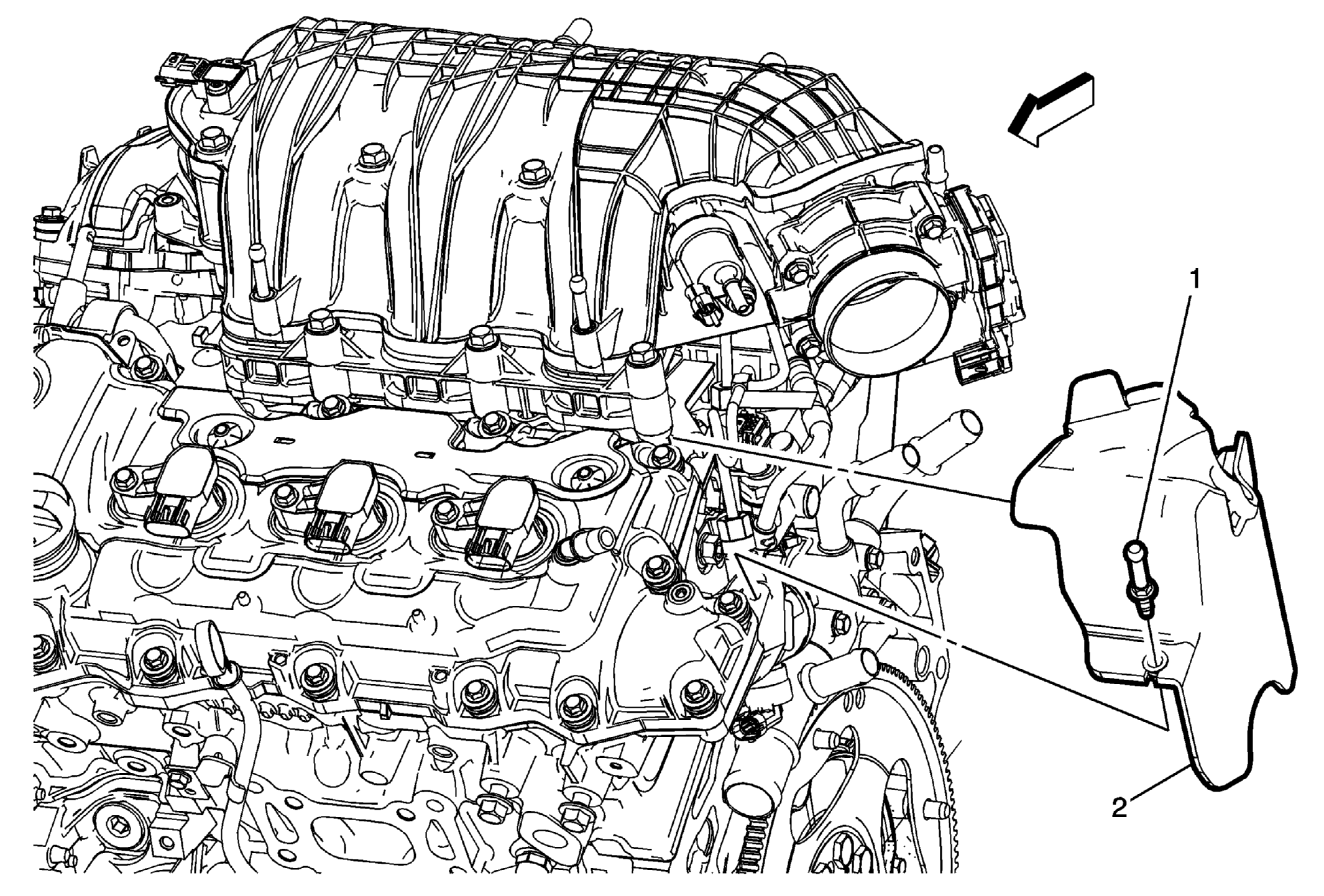

Fig 1: Fuel Pipe Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Fuel Pipe Shield
