Removal Procedure

  1. Remove the rear compartment side trim panel right side. Refer to Rear Compartment Side Trim Replacement - Right Side

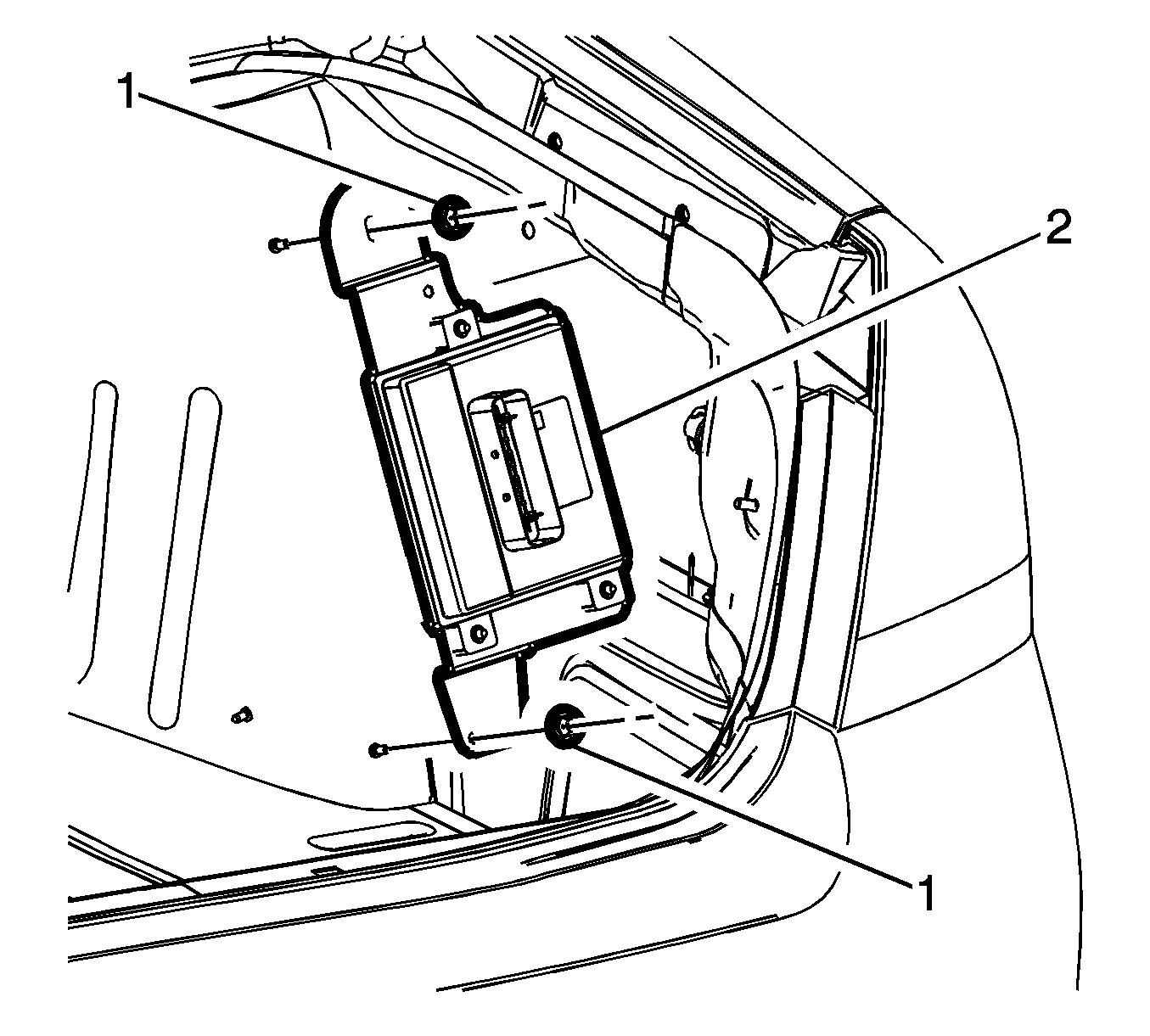

    2. Fig 1: Fuel Pump Flow Control Module Bracket And Nuts
    GM2656289Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect the electrical connector.
  3. Remove the fuel pump flow control module bracket nuts (1).
  4. Remove the fuel pump flow control module and bracket (2).

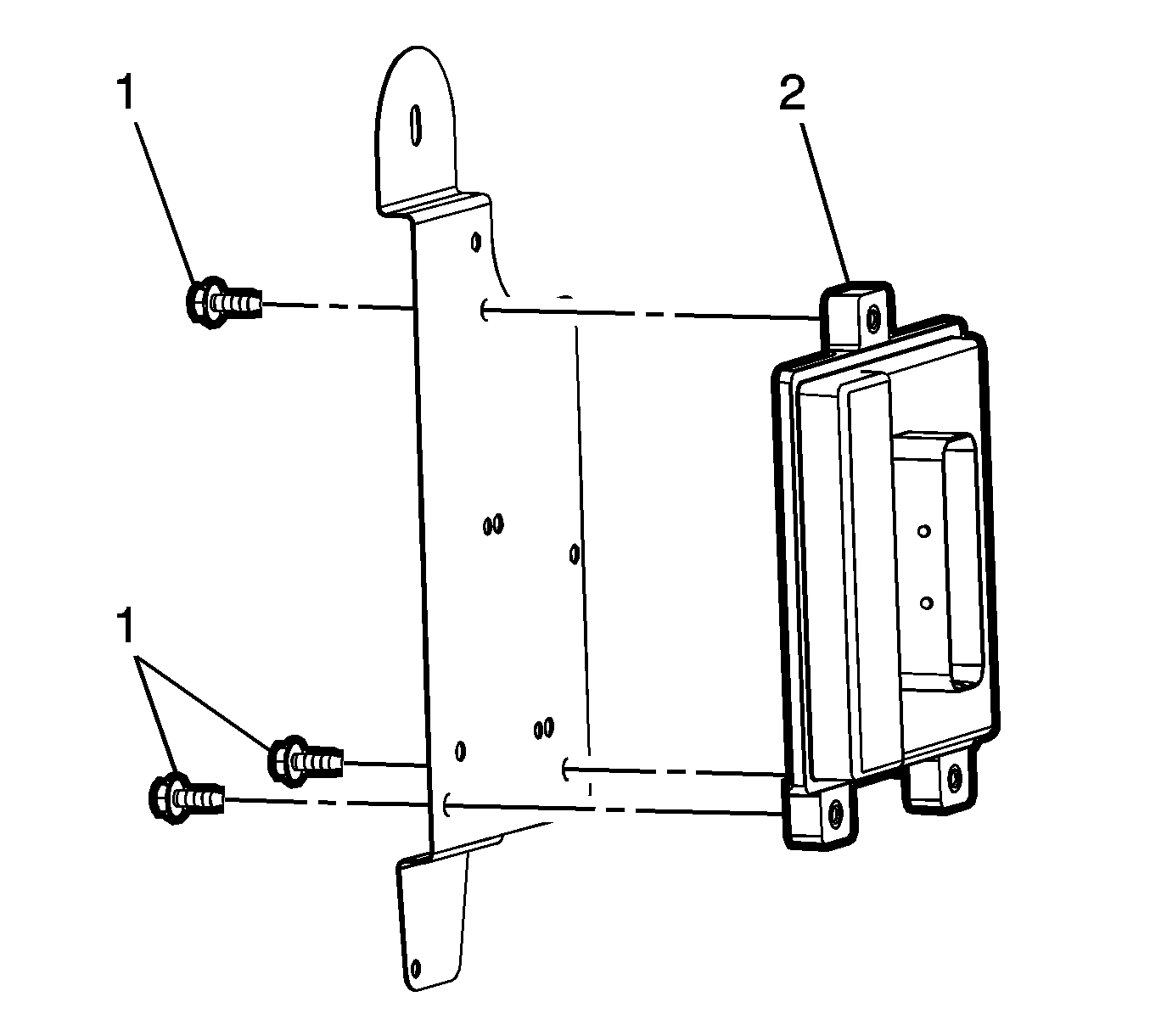

    5. Fig 2: Fuel Pump Flow Control Module And Bolts
    GM2656312Courtesy of GENERAL MOTORS COMPANY
  5. Remove the fuel pump flow control module bolts (1).
  6. Remove the fuel pump flow control module (2).
