Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

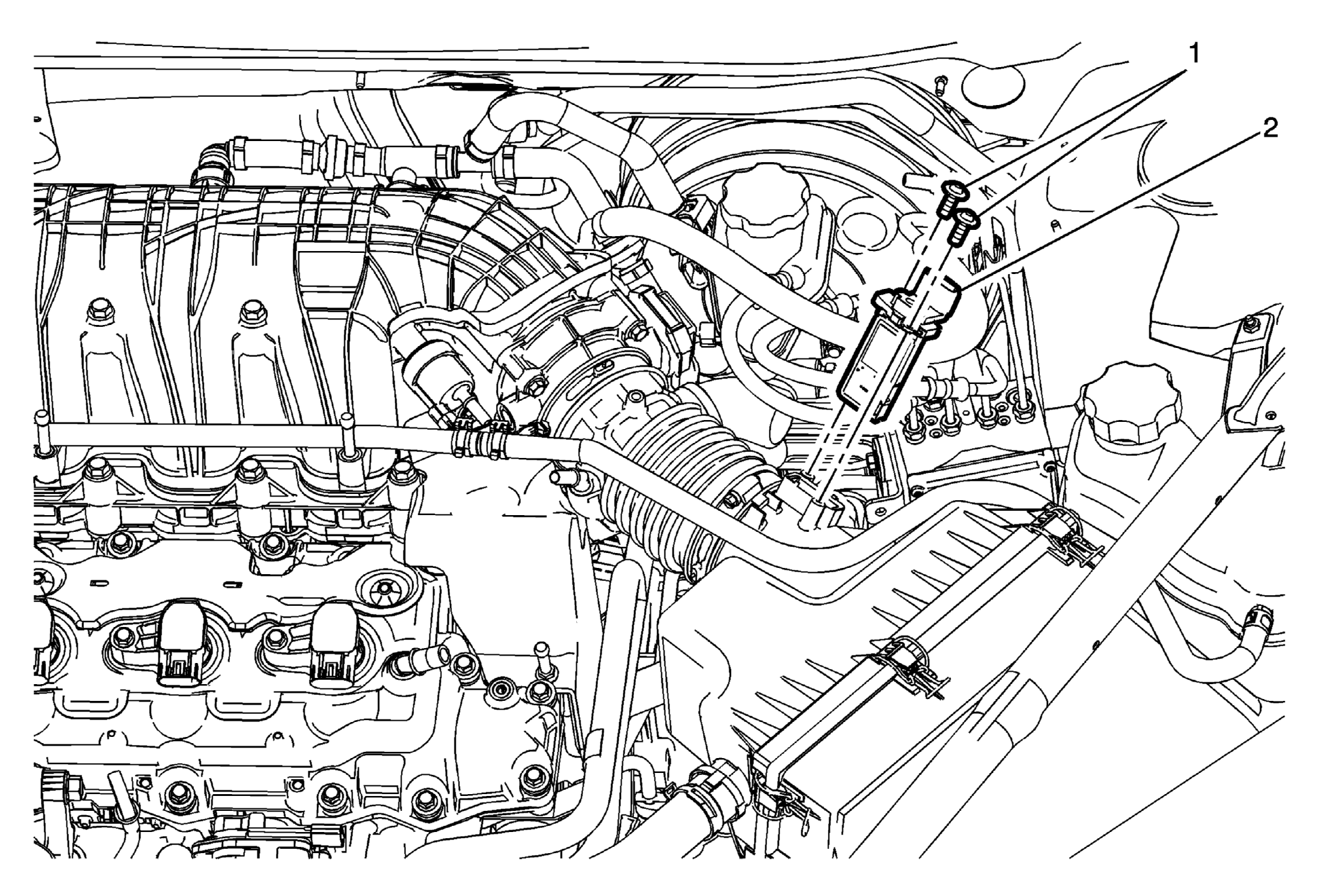

Fig 1: Mass Airflow Sensor with Intake Air Temperature Sensor
GM2614912Courtesy of GENERAL MOTORS COMPANY
Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

Callout Component Name
1 Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
3 N.m (27 lb in)
2 Mass Airflow Sensor
Procedure
Disconnect the mass airflow sensor harness connector.
