Secondary Air Injection Pump Replacement

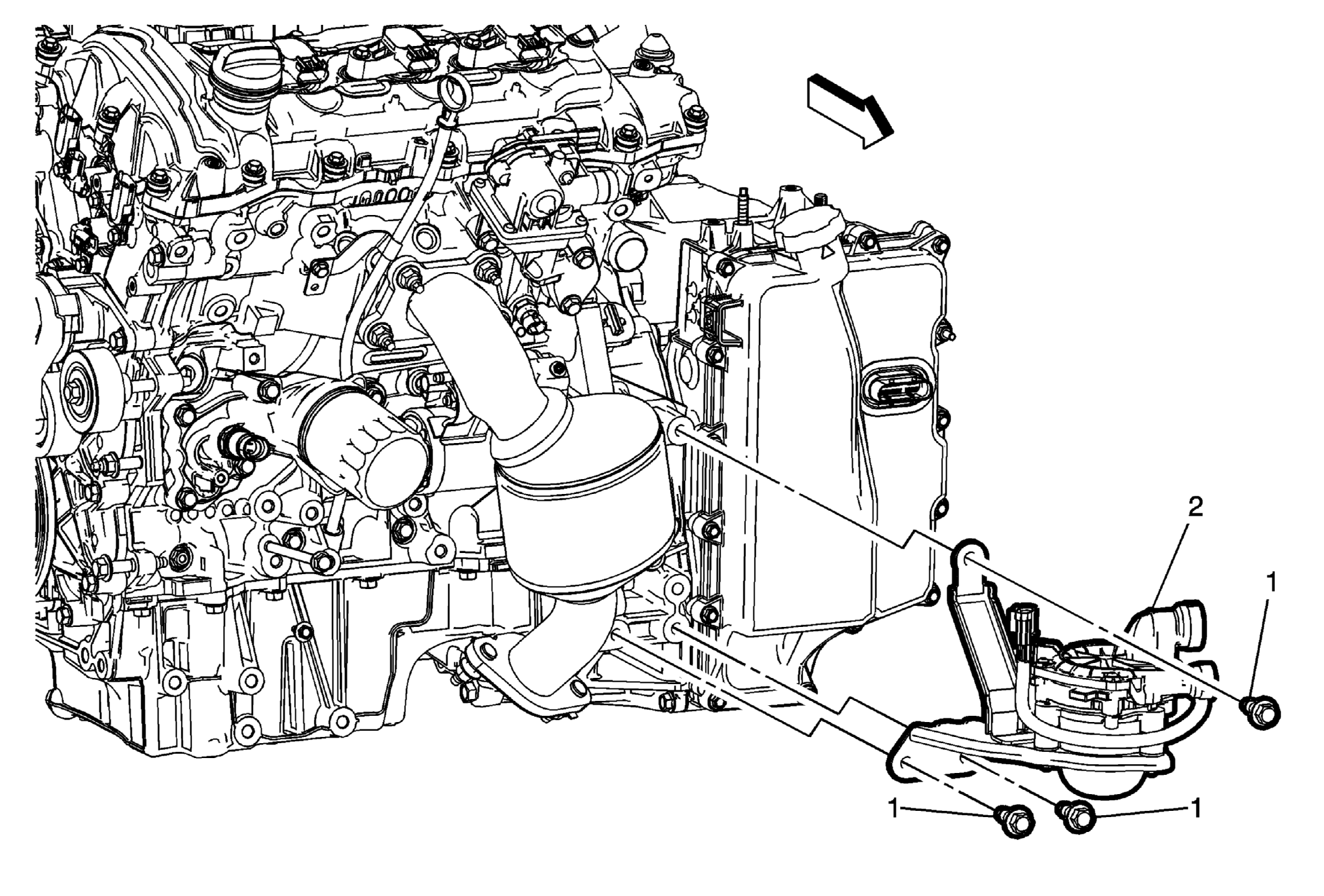

Fig 1: Secondary Air Injection Pump

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Secondary Air Injection Pump Bolts (Qty: 3). CAUTION: Refer to Fastener Caution . Tighten 58 N.m (43 lb ft)
2	Secondary Air Injection Pump. Procedure Disconnect the secondary air injection pump elactrical connector.

Callout

Component Name

Preliminary Procedures

Revove the radiator air lower baffel and deflector. Refer to Radiator Air Lower Baffle and Deflector Replacement
Remove the secondary air injection pipe. Refer to Secondary Air Injection Pipe Replacement
Remove the secondary air injection pump hose. Refer to Secondary Air Injection Pump Hose Replacement

Secondary Air Injection Pump Bolts (Qty: 3).

CAUTION:

Tighten
58 N.m (43 lb ft)

Secondary Air Injection Pump.
Procedure
Disconnect the secondary air injection pump elactrical connector.
