Body Control Module Replacement

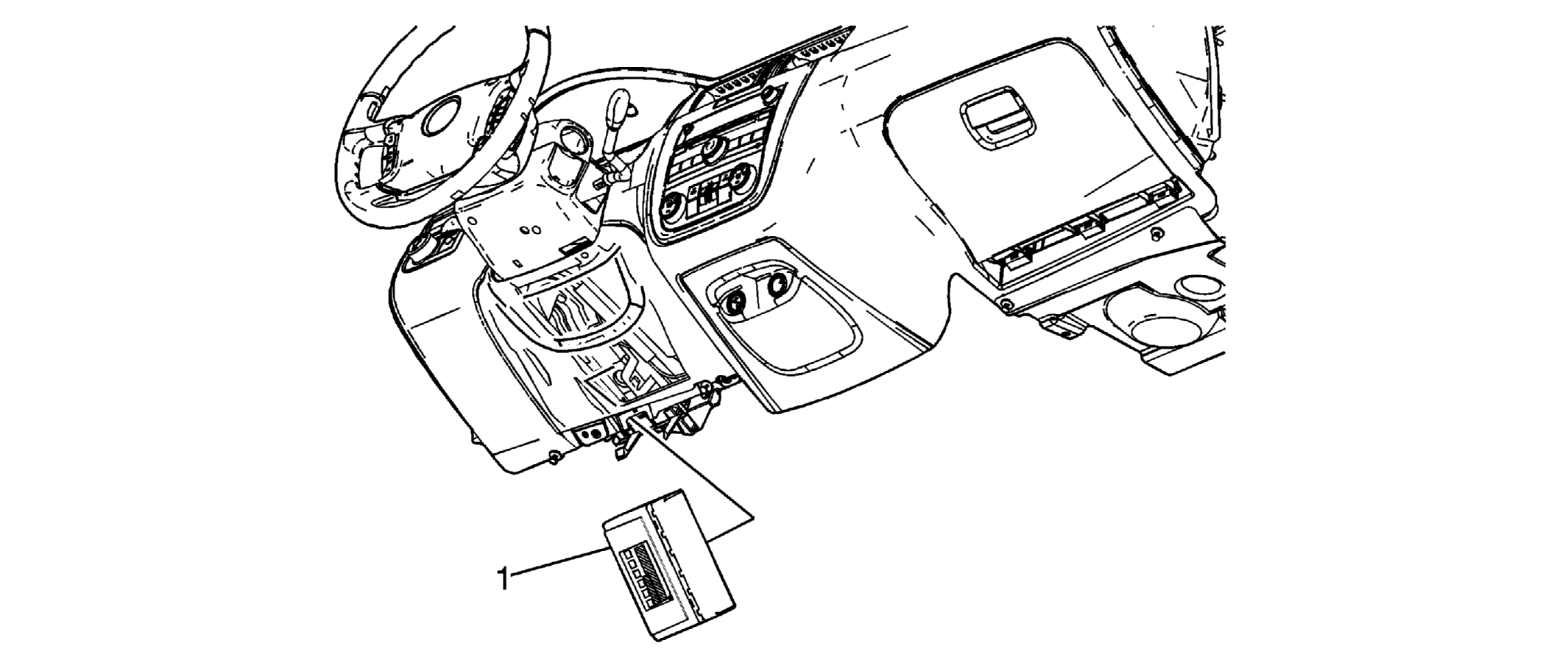

Fig 1: Body Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left closeout panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side . Program the body control module after replacement. Refer to Control Module References .
1	Body Control Module (BCM) Assembly TIP: Release the tabs on the BCM bracket and lift the module up and out.

Callout

Component Name

Preliminary Procedure

Remove the left closeout panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
Program the body control module after replacement. Refer to Control Module References .

Body Control Module (BCM) Assembly
TIP: Release the tabs on the BCM bracket and lift the module up and out.
