Chevrolet
>>
2012
>>
Impala LS, Gas
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communications System
>>
Wiring Schematics
>>
Body Control System Wiring Schematics
>>
Power and Ground
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power and Ground

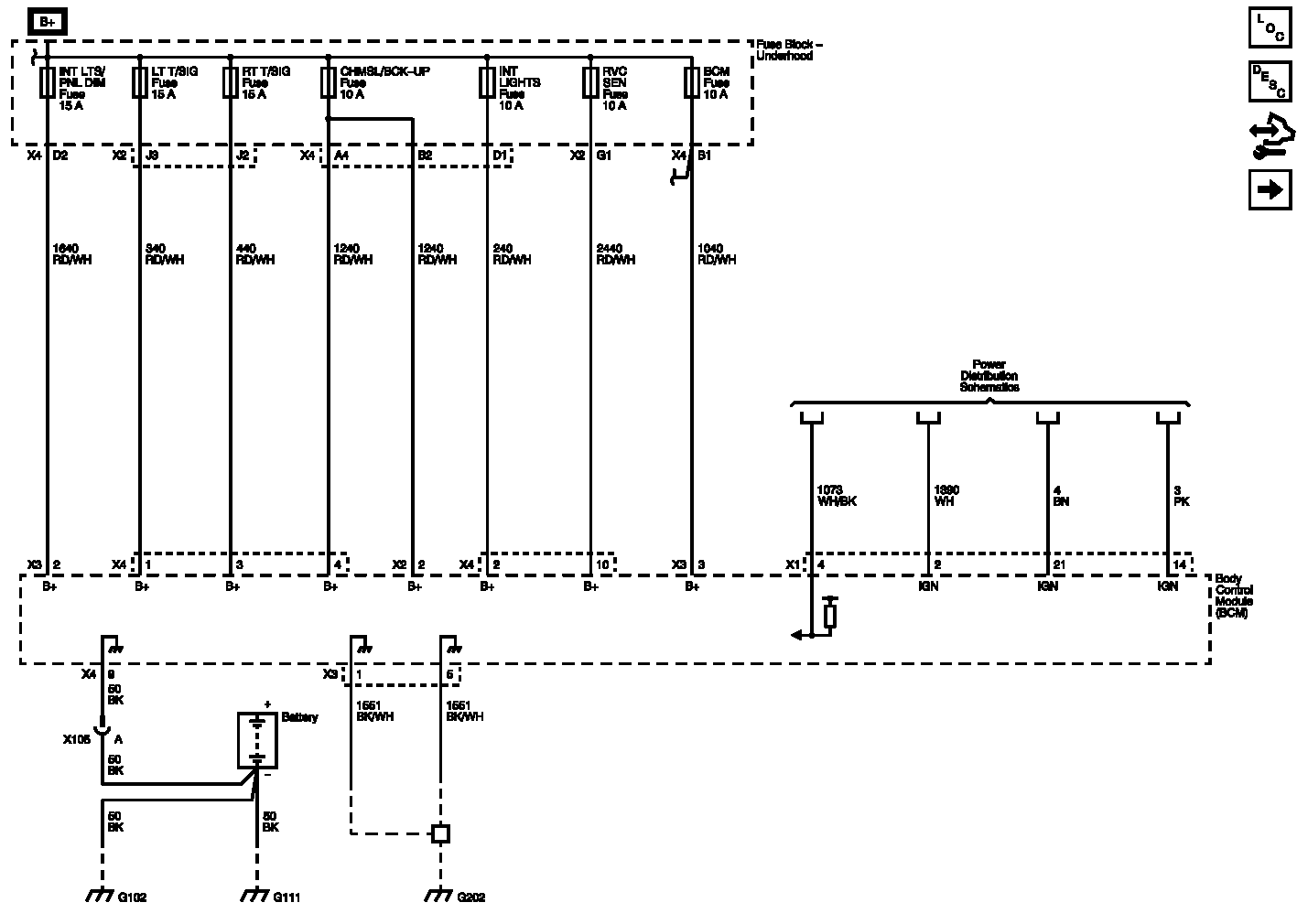

Fig 1: Power And Ground Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
