Chevrolet
>>
2012
>>
Impala LS, Gas
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communications System
>>
Wiring Schematics
>>
Data Communications System Wiring Schematics
>>
CAN Bus Serial Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
CAN Bus Serial Data

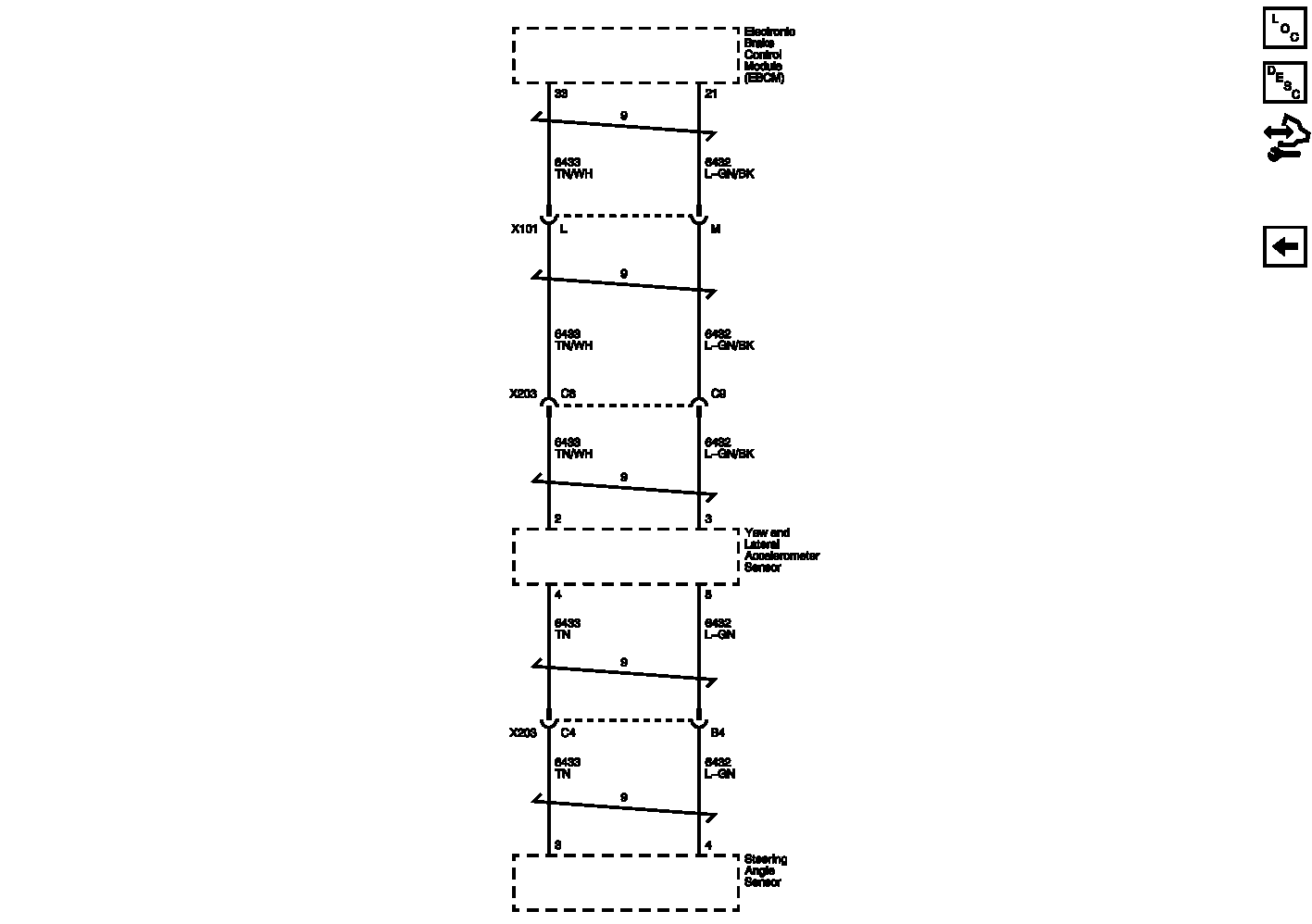

Fig 1: CAN Bus Serial Data Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
